Name: M5Stack MIDI Synthesizer Unit - SAM2695 - M5STACK-U178
Brand: M5Stack
SKU: 006051
Price: 14.25 EUR
Availability: InStock

M5Stack MIDI Synthesizer Unit - SAM2695

Based on 0 review(s) - Write a review

€14.25

Ex Tax: €11.78

10 or more €14.00

20 or more €13.75

50 or more €13.50

100 or more €13.25

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

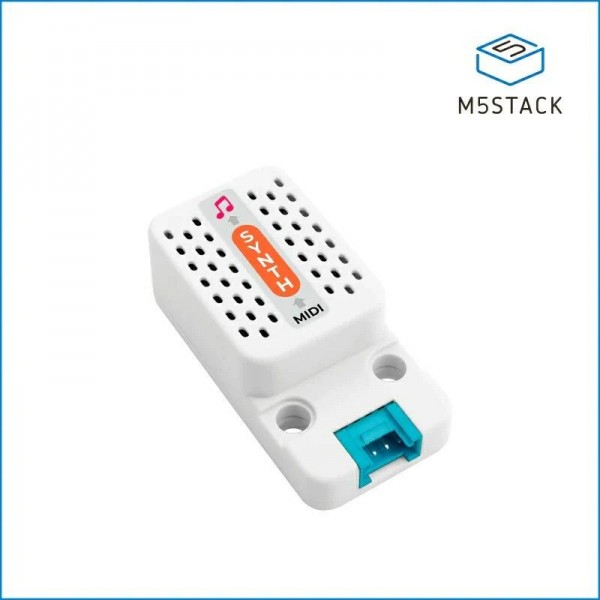

An audio synthesizer with built-in speaker from M5Stack.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: M5Stack MIDI Synthesizer Unit - SAM2695 , M5STACK-U178 , Speakers

General
Brand	M5Stack
Manufacturer model/SKU	U178
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Audio amplifier Enclosure Speaker/buzzer
General physical appearance
Main color	White
Weight [g]	11
Dimension X [mm]	48
Dimension Y [mm]	24
Dimension Z [mm]	16
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
Communication
Hardware interface(s)	UART
DAC chip	SAM2695
Default baudrate	31250
Protocol	MIDI
Audio amplifier
Amplifier chip	NS4150B
Number of (normal) channels	1
Maximum power per (normal) channel [W]	1.0
Speaker
Speaker type	Standard
Active/passive	Active
Impedance [Ω]	8
Maximum nominal (RMS) power [W]	1
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Enclosure
Material	Polycarbonate (PC)

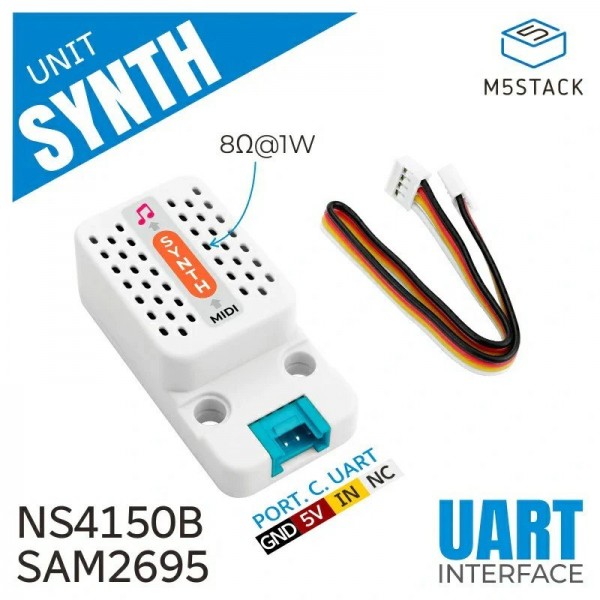

Package contents
Package contents	1x MIDI Synthesizer Unit 1x Grove female cable
