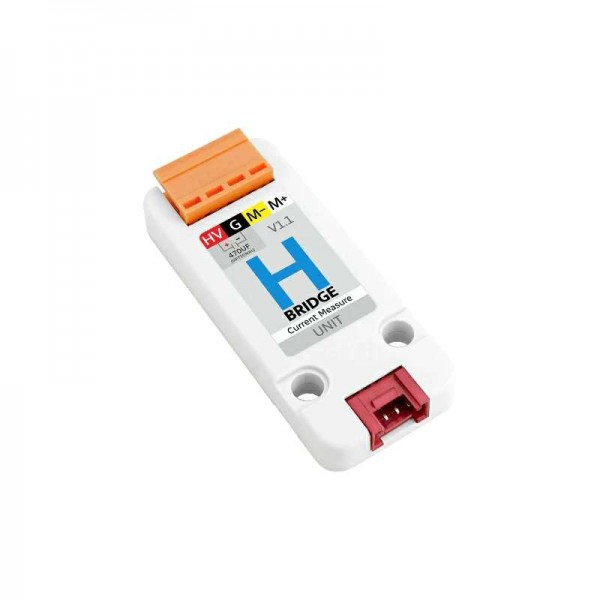

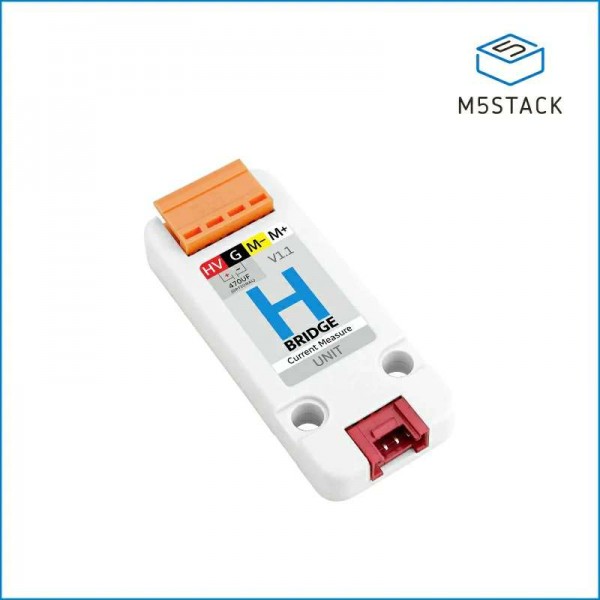

M5Stack Hbridge V1.1 Unit - DC Motor Driver with Current Sensor

Availability: Directly available from warehouse in Eindhoven
SKU: 005656

Based on 0 review(s) - Write a review

€10.25

Ex Tax: €8.47

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

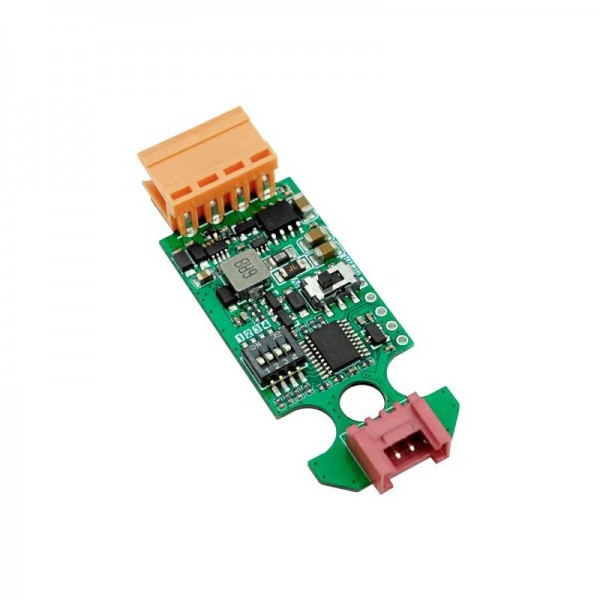

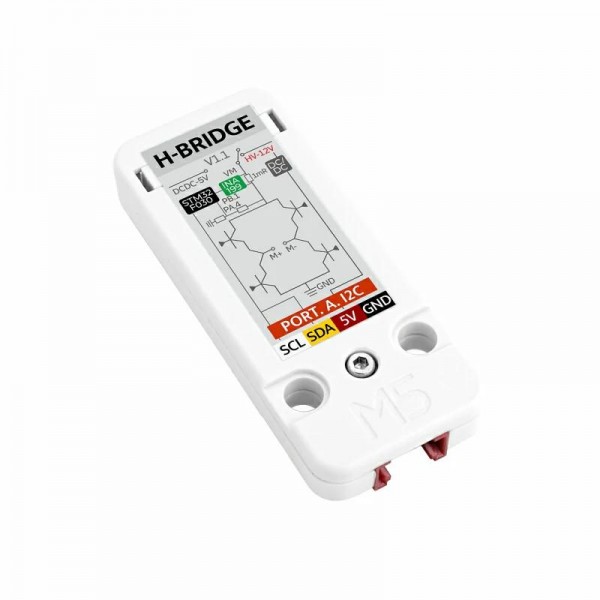

A motor driver (H-bridge) from M5Stack with current sensor, which works via I2C. Communication handled via a built-in microcontroller, which in turn communicates with the motor driver and current sensor. The module has various safety features to protect the motor. Finally, the motor voltage can be set via a switch (either 5V, or the same as the motor supply voltage).

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Hbridge V1.1 Unit - DC Motor Driver with Current Sensor

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Hbridge V1.1 Unit - DC Motor Driver with Current Sensor , M5Stack-U160-V11 , DC-Motor Controllers and Drivers

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U160-V11
Model revision	V1.1
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Motor driver Current sensor Enclosure
General physical appearance
Main color	White
Weight [g]	9
Dimension X [mm]	56
Dimension Y [mm]	24
Dimension Z [mm]	8
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x20
Adjustable I2C address	Yes (with DIP switch)
Built-in pull-up resistor(s) [kΩ]	10
Current sensor
Sensor (chip)	INA199
Number of channels	1
Suitable current	DC
Measuring method	Shunt
Motor driver
Type	Driver
Driver chip	RZ7899
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	1
Minimum motor supply voltage [V DC]	6
Maximum motor supply voltage [V DC]	12
Motor voltage [V DC]	Equal to motor supply voltage or 5.0 (adjustable via switch)
Maximum continuous RMS current per phase [A]	3
Maximum peak current per phase [A]	5
Current limiter	No
Safety features	Short circuit Temperature Overvoltage Overcurrent
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Motor connector(s)	Detachable block male (HT3.96)
Enclosure
Material	Polycarbonate (PC)
Package contents

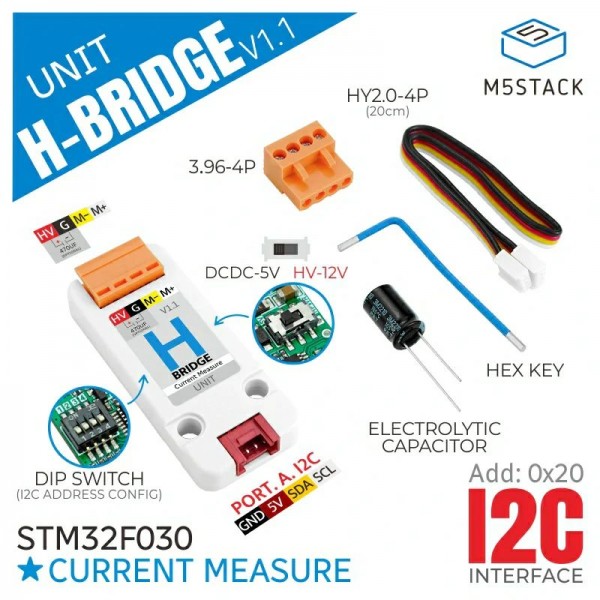

Package contents	1x Grove female cable 1x HBridge V1.1 unit 1x Detachable screw terminal (HT3.96) 1x M2 hex key 1x 470uf electrolytic capacitor
