Name: M5Stack Hbridge Unit - DC Motor Driver - M5STACK-U160
Brand: M5Stack
SKU: 005181
Price: 12 EUR
Availability: InStock

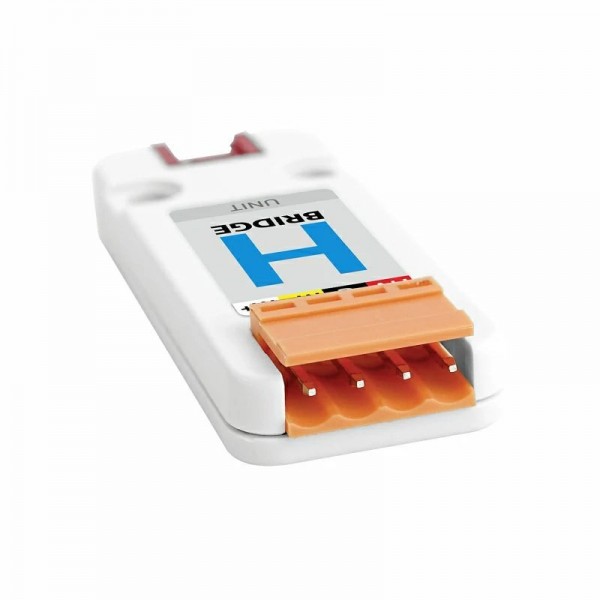

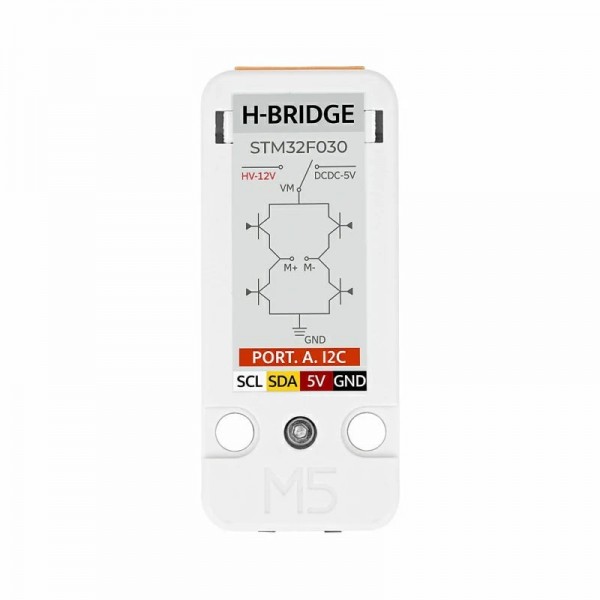

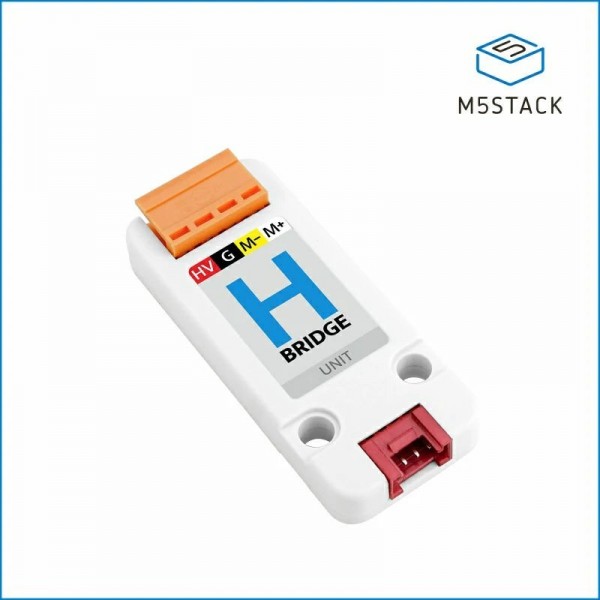

M5Stack Hbridge Unit - DC Motor Driver

Based on 0 review(s) - Write a review

€12.00

Ex Tax: €9.92

Qty

Add to Cart

Add to wishlist

Only 6 pieces in stock

A motor driver (H-bridge) from M5Stack that works via I2C. The module has several safety features to protect the motor.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: M5Stack Hbridge Unit - DC Motor Driver , M5STACK-U160 , DC-Motor Controllers and Drivers

General
Brand	M5Stack
Manufacturer model/SKU	U160
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Motor driver Enclosure
General physical appearance
Main color	White
Weight [g]	9
Dimension X [mm]	56
Dimension Y [mm]	24
Dimension Z [mm]	8
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x20
Adjustable I2C address	Yes
Built-in pull-up resistor(s) [kΩ]	10
Motor driver
Type	Driver
Driver chip	RZ7899
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	1
Minimum motor supply voltage [V DC]	6
Maximum motor supply voltage [V DC]	12
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	3
Maximum peak current per phase [A]	5
Current limiter	No
Safety features	Temperature Overvoltage Overcurrent
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Motor connector(s)	Detachable block male (HT3.96)
Enclosure
Material	Polycarbonate (PC)
Package contents

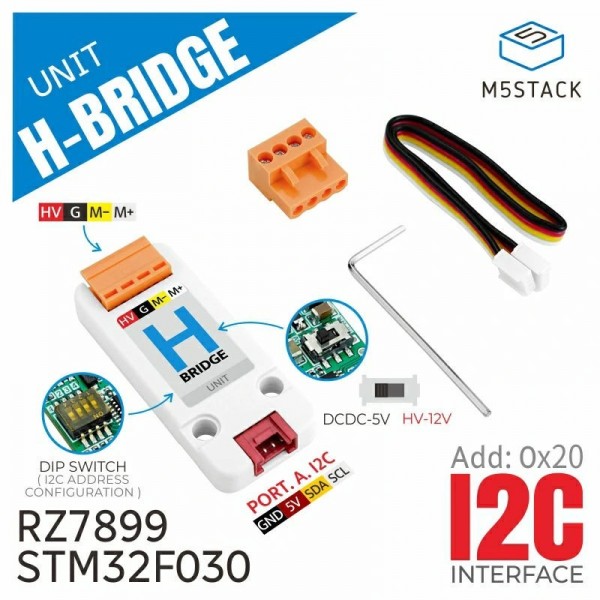

Package contents	1x Grove female cable 1x Hbridge module 1x Detachable screw terminal (HT3.96) 1x Hex key
