Name: M5Stack Glass 2 Unit - 1.51inch Transparent OLED Display - 128*64 - M5Stack-U158-B
Brand: M5Stack
SKU: 005643
Price: 27.75 EUR
Availability: InStock

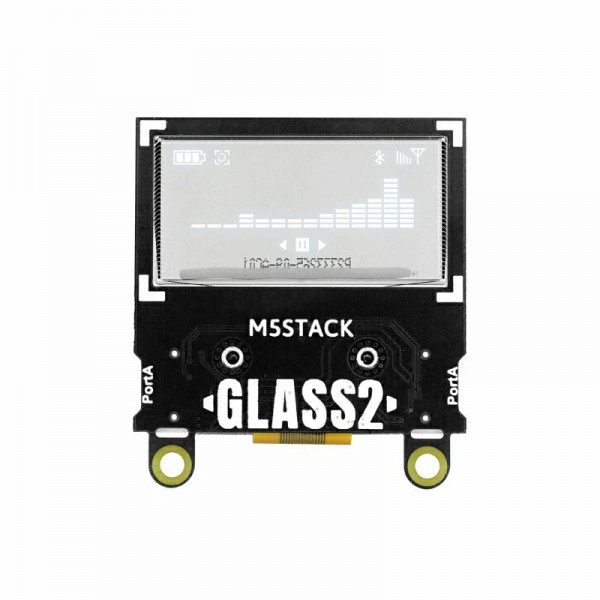

M5Stack Glass 2 Unit - 1.51inch Transparent OLED Display - 128*64

Availability: Directly available from warehouse in Eindhoven
SKU: 005643

Based on 0 review(s) - Write a review

€27.75

Ex Tax: €22.93

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews (0)

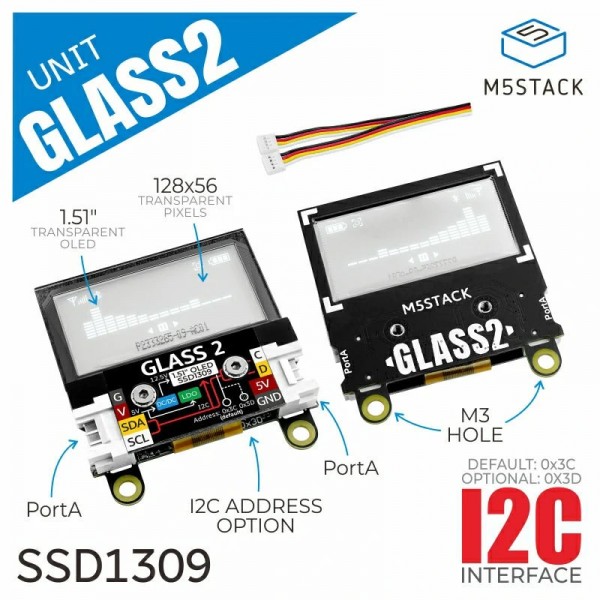

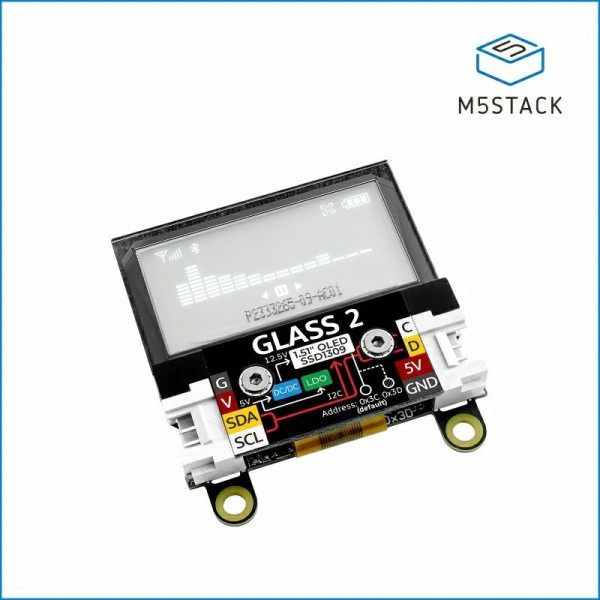

A transparent OLED display unit from M5Stack with an additional I2C output to connect a second display or other module.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Glass 2 Unit - 1.51inch Transparent OLED Display - 128*64

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Glass 2 Unit - 1.51inch Transparent OLED Display - 128*64 , 005643 , M5Stack , U158-B , Display , I2C

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U158-B
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Display
General physical appearance
Main color	Black
Weight [g]	9
Dimension X [mm]	47 (incl. mounting holes) 40 (excl. mounting holes)
Dimension Y [mm]	42
Dimension Z [mm]	6.4
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	M5Stack Unit Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x3C
Adjustable I2C address	Yes (to 0x3D via solder bridge)
Display
Type	OLED
Driver	SSD1309
Screen diagonal [inch]	1.51
Number of pixels long side	128
Number of pixels short side	64 (of which 56 transparent)
Display shape	Rectangular
Pixel colors	Blue
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Package contents
Package contents	1x Display module 1x Grove female cable
