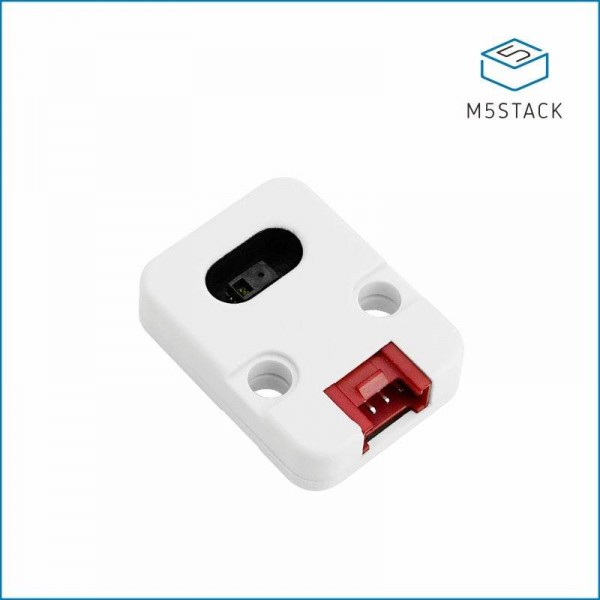

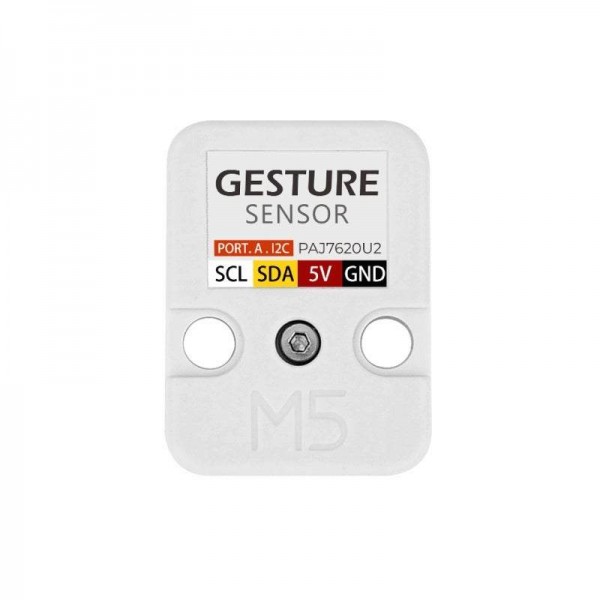

M5Stack Gesture Unit - Gesture Recognition Sensor

A hand gesture recognition sensor from M5Stack. With this you can easily recognize 9 different gestures.

Specifications:

• Supply voltage: 5V DC
• Signal voltage: 3.3V
• Communication: I2C
  • I2C address: 0x73
• Gesture Recognition Sensor:
  • Chip: PAJ7620U2
  • Effective recognition distance: 5 - 15cm
  • Supported gestures: Up, down, left, right, forward, backward, turn (CW), turn (CCW) and wave
• Dimensions: 24 x 32 x 8mm

Package contents:

• 1x Gesture Unit
• 1x Grove cable (~20cm)

See the following page for more information: M5Stack Gesture Recognition Unit.
