M5Stack Fingerprint2 Unit

M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
M5Stack Fingerprint2 Unit
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007491
Based on 0 review(s) - Write a review
€13.75
Ex Tax: €11.36
Add to Cart
Add to wishlist

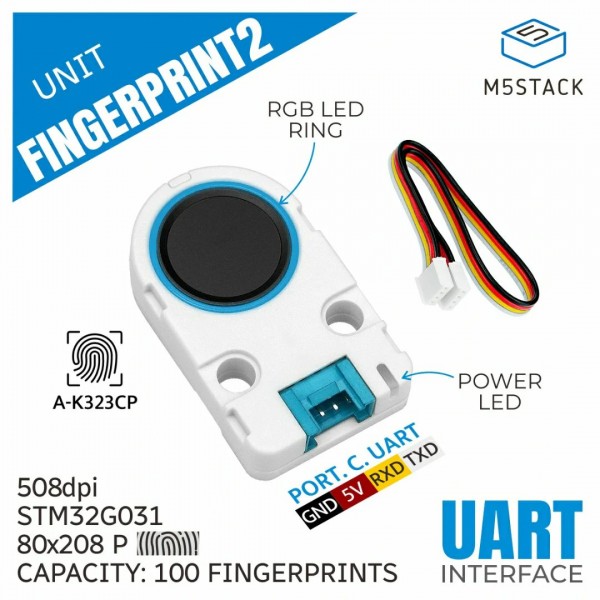

The M5Stack Unit Fingerprint2 is a capacitive fingerprint recognition module. The module also features an RGB LED ring and can be controlled via UART.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Fingerprint2 Unit

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Fingerprint2 Unit , 007491 , M5Stack , U203 , Enclosure , Digital LED(s) , Finger print sensor , UART

Specifications

General
Brand M5Stack
Manufacturer model/SKU U203
Features Enclosure
Digital LED(s)
Finger print sensor
General physical appearance
Main color White
Weight [g] 6
Dimension X [mm] 40
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Light source
Type LED
Light color RGB
Finger print sensor
Sensor (chip) A-K323CP
Type Capacitive
Finger print capacity 100
Number of pixels long side 208
Number of pixels short side 80
Resolution [dpi] 508
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Plastic (unknown material)

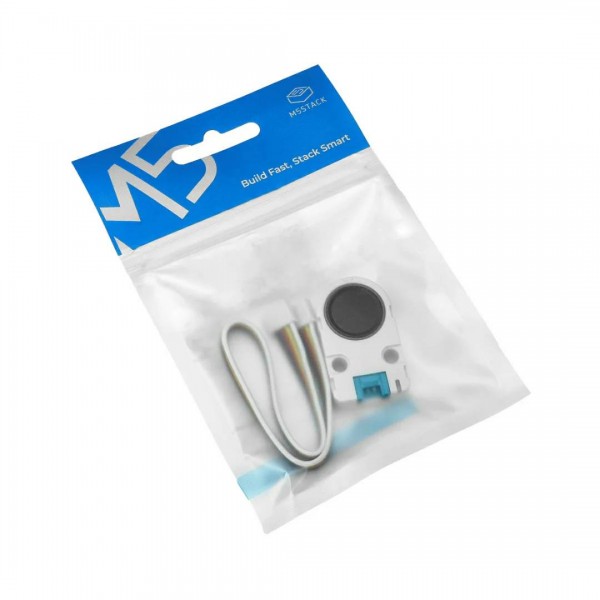

Package contents
Package contents 1x Fingerprint2 Unit
1x HY2.0-4P Grove cable (20cm)
