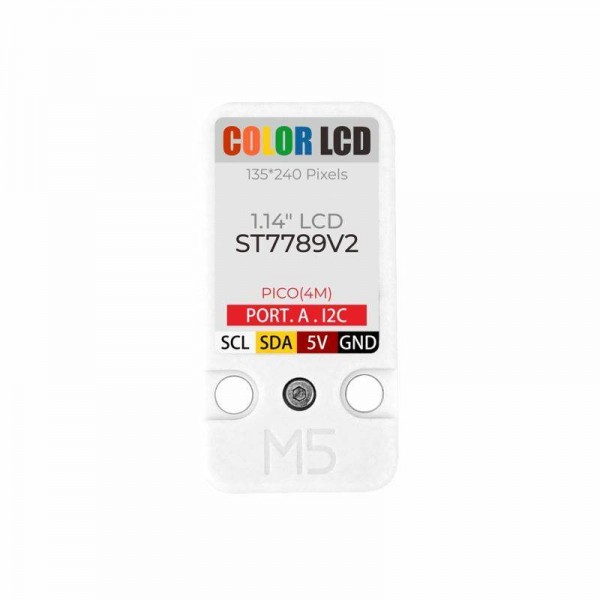

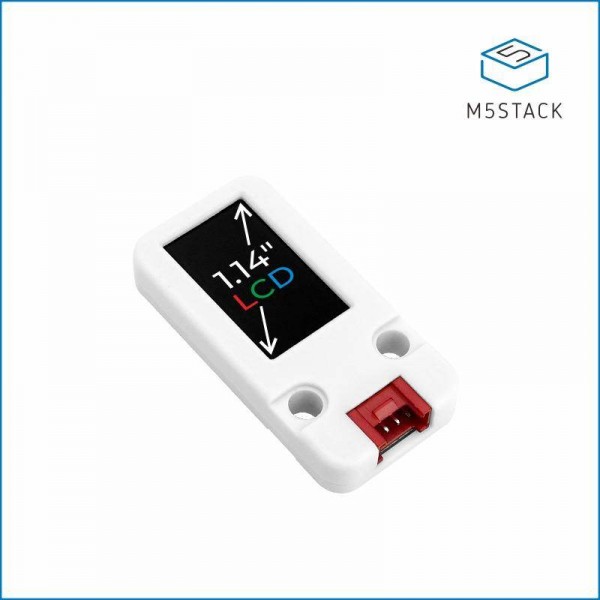

M5Stack Color LCD Unit - 1.14 inch TFT-LCD Display - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 003660

Based on 1 review(s) - Write a review

€18.75

Ex Tax: €15.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

This Color LCD Unit is a display module from M5Stack. The module contains a separate microcontroller that controls the display. This microcontroller can then be controlled via I2C in order to control the display. The software of the microcontroller can be updated with the following USB to serial adapter: ESP32 Downloader Kit.

See the following page for more information: M5Stack Color LCD Unit.

Please login or register to review

Reviews Over M5Stack Color LCD Unit - 1.14 inch TFT-LCD Display - I2C

Average Rating:

This product has 1 review(s) in total.

Tags: M5Stack Color LCD Unit - 1.14 inch TFT-LCD Display - I2C , M5Stack-U120 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U120
Features	Display Enclosure
General physical appearance
Main color	White
Weight [g]	9
Dimension X [mm]	49
Dimension Y [mm]	25
Mounting options	Magnets LEGO (compatible) holes
Form factor	M5Stack Unit Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Display
Type	TFT
Driver	ST7789
Screen diagonal [inch]	1.14
Number of pixels long side	240
Number of pixels short side	135
Display shape	Rectangular
Pixel colors	RGB
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Enclosure
Material	Polycarbonate (PC)
Package contents

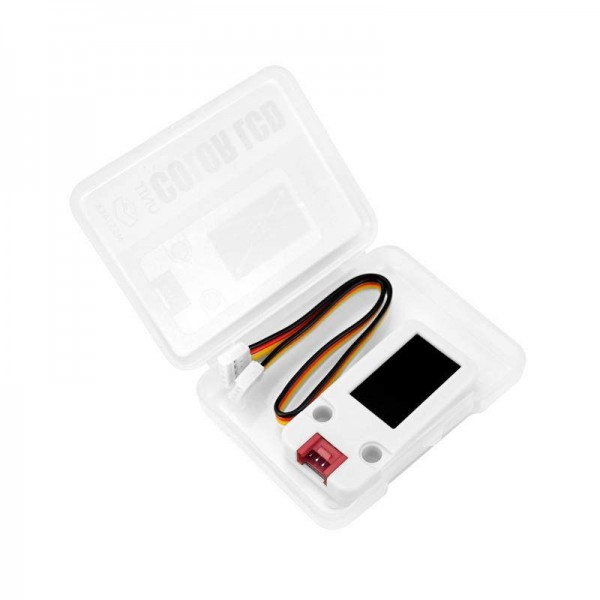

Package contents	1x Display module 1x Grove female cable
