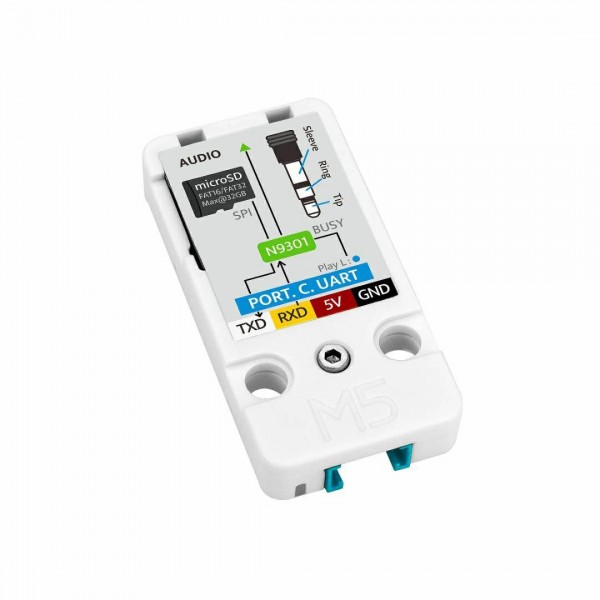

M5Stack Audio Player Unit - N9301
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007258
€6.50
Ex Tax: €5.37
Your shopping cart is empty!
MP3 player with SD card, serial control, and audio output from M5Stack.
See the following page for more information: Wiki
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U197 |
| Features | MP3 Enclosure SD-card adapter |
| General physical appearance | |
| Main color | White |
| Weight [g] | 8 |
| Dimension X [mm] | 48 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 8 |
| Mounting options | LEGO (compatible) holes |
| Form factor | M5Stack Unit Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | DAC UART |
| DAC chip | N9301 |
| DAC type | Audio DAC |
| Maximum available analog output pins (DAC) | 2 |
| Default baudrate | 9600 |
| Supported SD card size | Micro SD |
| Supported SD File Format | FAT16 FAT32 |
| Supported file extensions | MP3 WAV |
| Maximum supported SD capacity [GB] | 32 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male |
| IO-connector(s) | HY2.0 (Grove) male Audio jack 3.5mm female |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |
| Package contents | 1x Grove female cable 1x M5Stack Audio Player Unit |
