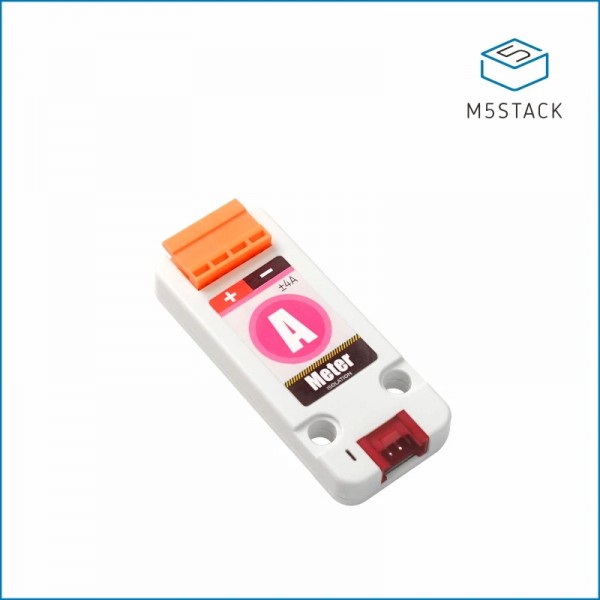

M5Stack AMeter Unit - Isolated Current Sensor

This is an isolated current sensor module with a Grove connection for M5Stack. The module contains a 16-bit ADC (analog to digital) converter, namely the ADS1115. The sensor is factory calibrated with the calibration data stored in the built-in EEPROM. The module works via I2C communication.

Specifications:

• Sensor: ADS1115
  • Resolution: 16-bit
• Current measuring range: ±4A
• Communication: I2C
• I2C address:
  • ADS1115: 0x48
  • EEPROM: 0x51*
• 4A Fuse (slow)
• LED power indicator
• 2x LEGO^® compatible mounting holes

*Note: The EEPROM contains calibration data for the current sensor, do not write data to the EEPROM but only read it out, otherwise this data will be overwritten.

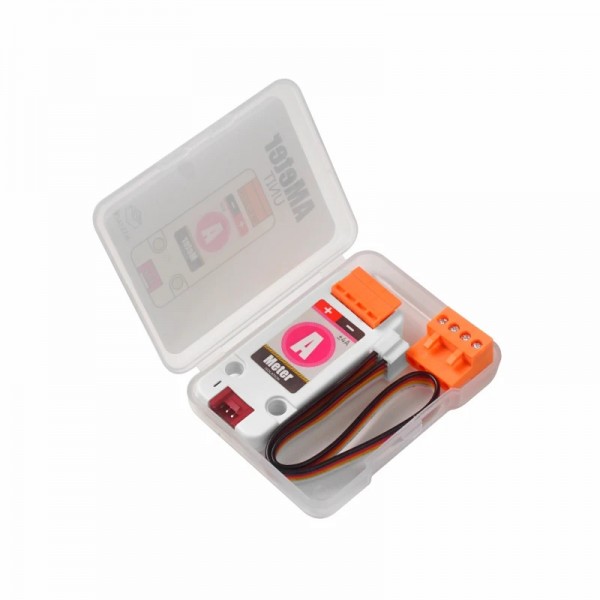

Package contents:

• 1x M5Stack AMeter Unit
• 1x Grove cable (20cm)

See the following page for more information: M5Stack-AMeter-Unit
