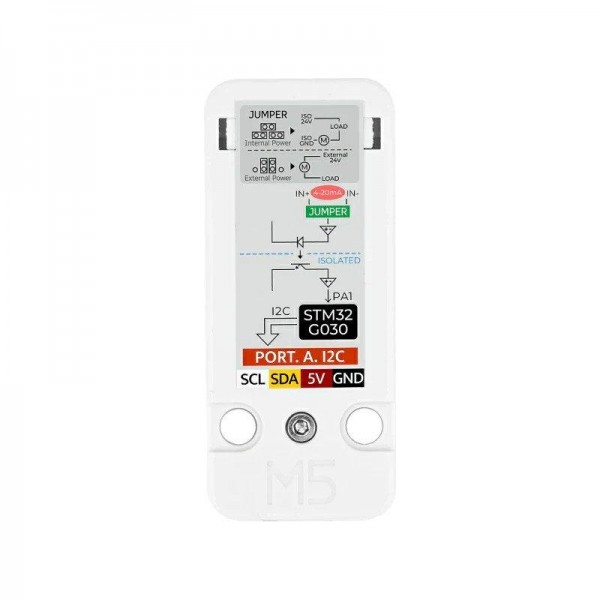

The AIN4-20mA Unit is a module that can read sensors that provide an analog signal between 4-20mA. The analog signal is converted by the built-in microcontroller (STM32G030) to a digital value that can be read out via I2C. The module supports both sensors that already have a built-in power source (with two wires) and sensors that still require an external power source (these usually have 4 wires).

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack AIN4-20mA Unit

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack AIN4-20mA Unit , M5Stack-U162 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U162
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Current sensor Enclosure
General physical appearance
Main color	White
Weight [g]	9

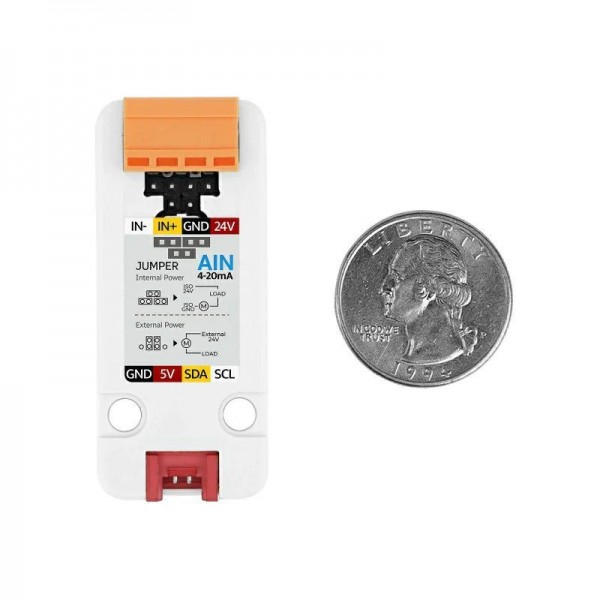

Dimension X [mm]	56
Dimension Y [mm]	24
Dimension Z [mm]	8
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Isolated communication	Yes
Default I2C address	0x55
Adjustable I2C address	Yes
Current sensor
Number of channels	1
Suitable current	DC
Minimum measuring range [A]	0.004
Maximum measuring range [A]	0.02
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male

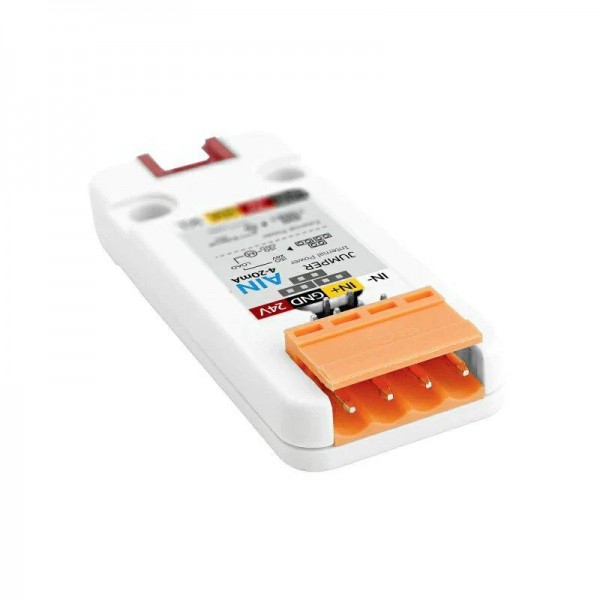

Measure pin connector(s)	Detachable block male (HT3.96)
Enclosure
Material	Polycarbonate (PC)
Package contents

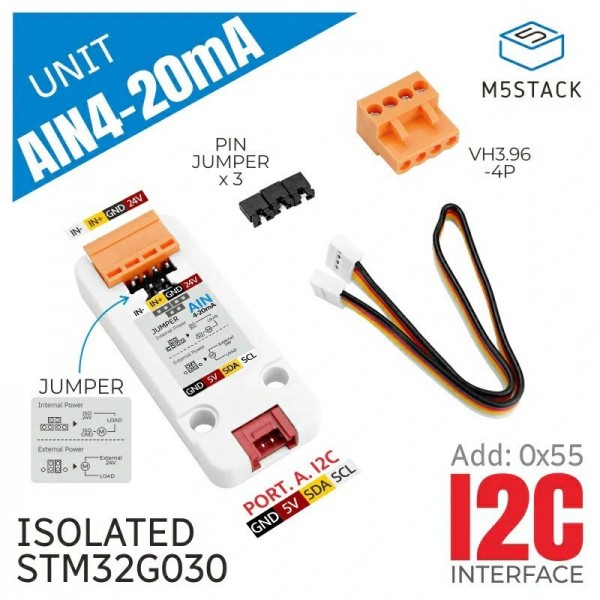

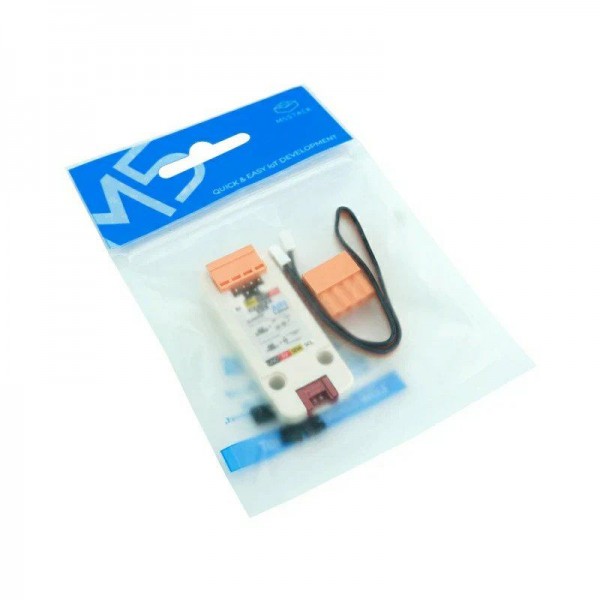

Package contents	1x AIN4-20mA Unit 1x Grove female cable 3x jumpers 1x Detachable screw terminal
