M5Stack ADC Unit V1.1 - ADS1110 - I2C
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006050
€8.50
Ex Tax: €7.02
We are back online and trying to process orders as soon as possible. We expect your order to be delayed by at most 1 working day. We apologize for the inconvenience.
Additionally, our contact forms are currently not working correctly due to a server update. We therefore request that you send a direct email to the mentioned email below the contact form.
Your shopping cart is empty!

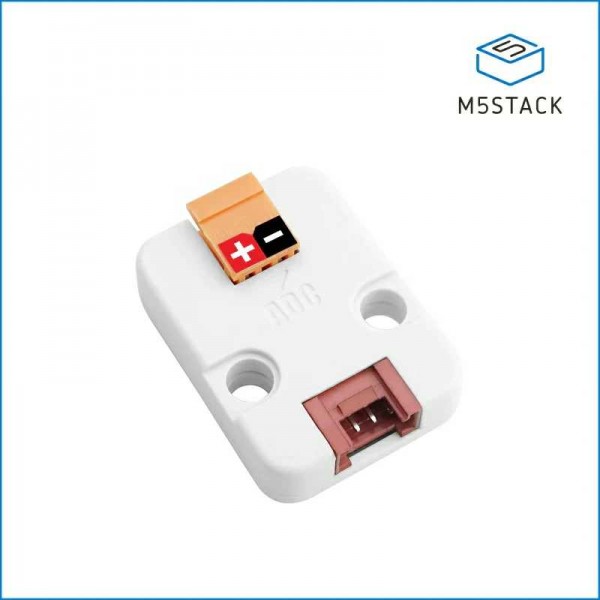

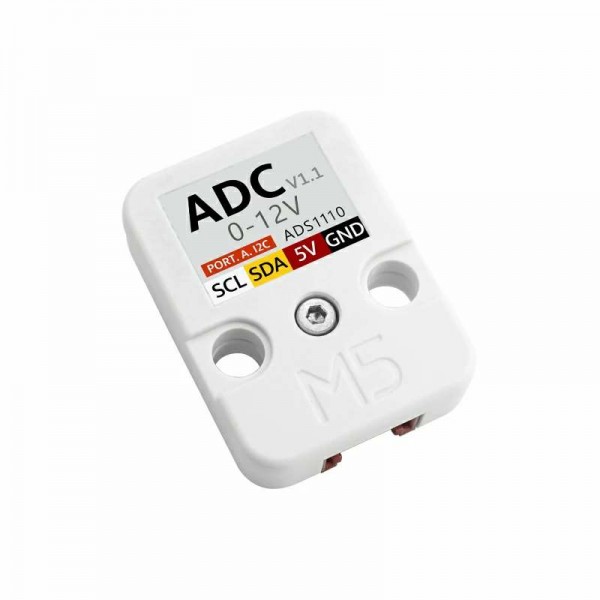

This is a module with an analog to digital converter (ADC) from M5Stack. The module works via I2C communication and allows you to modify the sample rate, enabling you to achieve various ADC resolutions.
See the following page for more information: Wiki
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U013-V11 |
| Model revision | V1.1 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | Enclosure |
| General physical appearance | |
| Main color | White |
| Weight [g] | 5 |
| Dimension X [mm] | 32 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 8 |
| Mounting options | LEGO (compatible) holes |
| Form factor | M5Stack Unit Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | ADC I2C |
| ADC chip | ADS1110 |
| ADC input type | Single ended (due to module design) |
| Maximum available analog input pins (ADC) | 1 |
| ADC resolution [bit] | 16 |
| Minimum ADC measuring voltage [V] | 0 |
| Maximum ADC measuring voltage [V] | 12 |
| Default I2C address | 0x48 |
| Adjustable I2C address | No |
| Built-in pull-up resistor(s) [kΩ] | 4.7 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male |
| IO-connector(s) | HY2.0 (Grove) male |

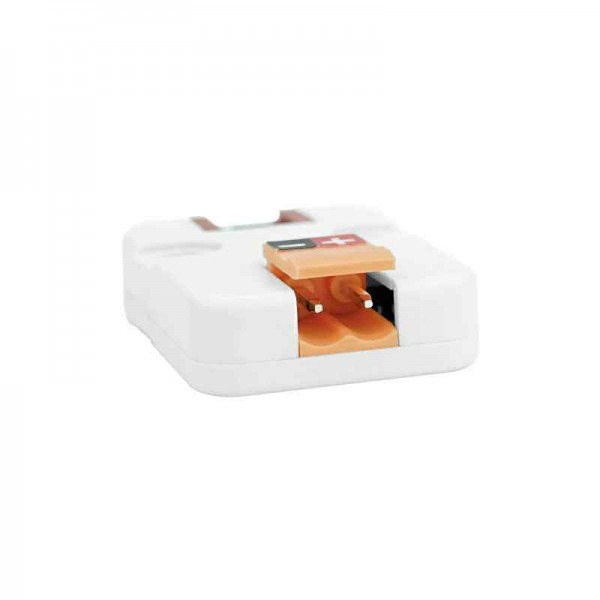

| Measure pin connector(s) | Detachable block male (HT3.96) |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |

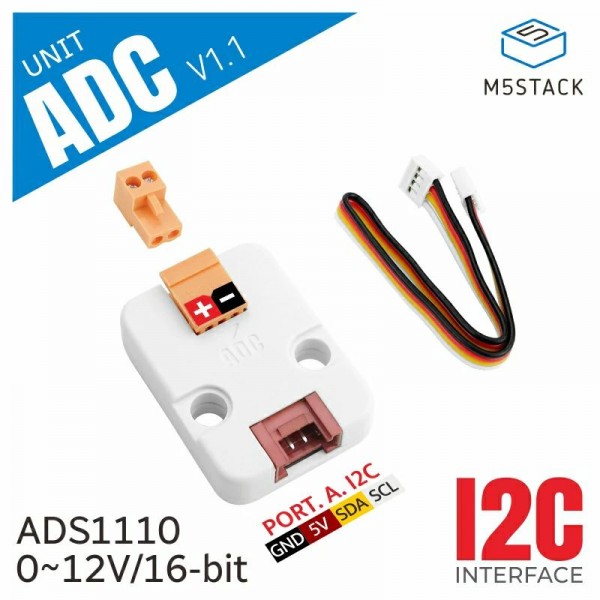

| Package contents | 1x ADC Unit V1.1 1x Detachable screwterminal (HT3.96) 1x Grove cable |
