M5Stack M5Stick T-Lite - Thermal Camera - MLX90640 - with M5StickC Plus
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004927
€97.25
Ex Tax: €80.37

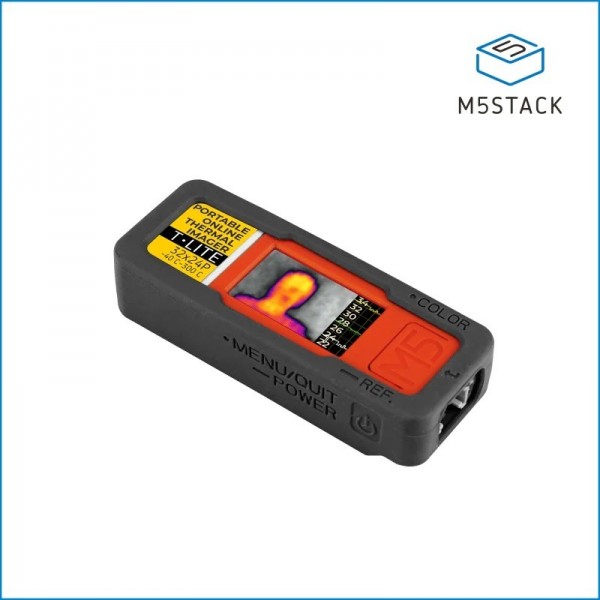

The M5Stick-T Lite is a compact thermal camera development kit with an MLX90640 sensor.
See the following page for more information: Wiki
Reviews Over M5Stack M5Stick T-Lite - Thermal Camera - MLX90640 - with M5StickC Plus
This product has 0 review(s) in total.
Report this review.
Tags:
M5Stack M5Stick T-Lite - Thermal Camera - MLX90640 - with M5StickC Plus
, M5Stack-K126
, M5Stick
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K126 |
| Features | Battery charger Display Camera Microcontroller Temperature sensor Battery protection circuit Enclosure RTC Microphone Battery Speaker/buzzer Acceleration sensor Gyroscope |
| General physical appearance | |
| Main color | Gray/silver |
| Dimension X [mm] | 69 (with case) |
| Dimension Y [mm] | 27 (with case) |
| Dimension Z [mm] | 16 (with case) |
| Mounting options | Screw thread |
| Form factor | Module (general) M5Stack Stick layout/HAT |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32-PICO |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 4 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 2 |
| Maximum available hardware PWM channels | 2 |
| Maximum available analog input pins (ADC) | 2 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 1 |
| Maximum available hardware I2C interfaces | 1 |
| Maximum available hardware SPI interfaces | 0 |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-PICO |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-PICO |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| Display | |
| Type | IPS |
| Driver | ST7789 |
| Number of pixels long side | 240 |
| Number of pixels short side | 135 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Scanner/camera | |
| Type | Thermal camera |
| Sensor(chip) | MLX90640 |
| Number of pixels long side | 32 |
| Number of pixels short side | 24 |
| Maximum viewing angle (diagonal) [°] | 133 |
| Horizontal viewing angle (inclination) [°] | 110 |
| Vertical viewing angle (elevation) [°] | 75 |
| Temperature sensor | |
| Sensor (chip) | MLX90640 |
| Minimum measuring range [°C] | -40 |
| Maximum measuring range [°C] | 300 |
| Acceleration sensor | |
| Sensor chip/SoC | MPU-6886 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | MPU-6886 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Sound sensor | |
| Sensor (chip(s)) | SPM1423 |
| Type | Microphone |
| RTC | |
| RTC chip | BM8563 |
| Back-up battery/capacitor | None |
| Battery circuit | |
| Battery charger chip/SoC | AXP192 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Adjustable charging current | Yes (via I2C) |
| Protection circuit | Yes |
| Safety features | Short circuit Overvoltage Overcurrent Undervoltage |
| Battery | |
| Chemistry | Li-Po |
| Rechargeable | Yes |
| Capacity [mAh] | 160 |
| Nominal cell voltage [V] | 3.7 |
| Maximum cell voltage [V] | 4.2 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male USB-C female |
| IO-connector(s) | HY2.0 (Grove) male USB-C female |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |

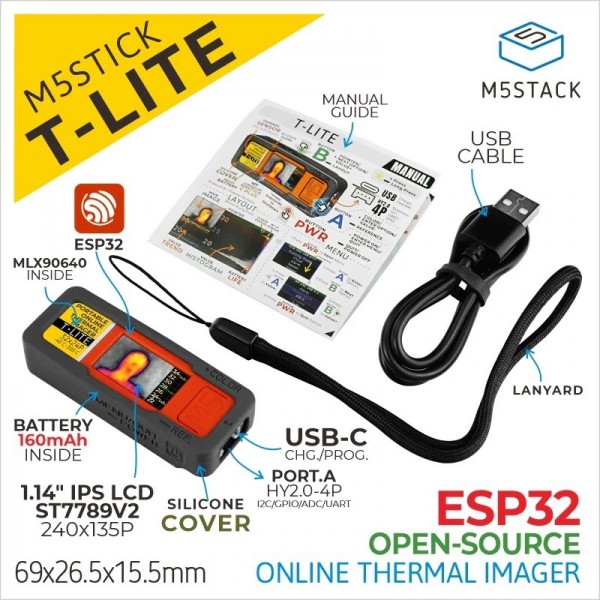

| Package contents | 1x M5StickC Plus 1x Thermal Camera Hat 1x Silicone Case 1x USB C Cable 1x Lanyard 1x Manual |
