M5Stack Servo Hat - for M5StickC
- Availability: Directly available from warehouse in Eindhoven
- SKU: 002515
€12.00
Ex Tax: €9.92
Your shopping cart is empty!

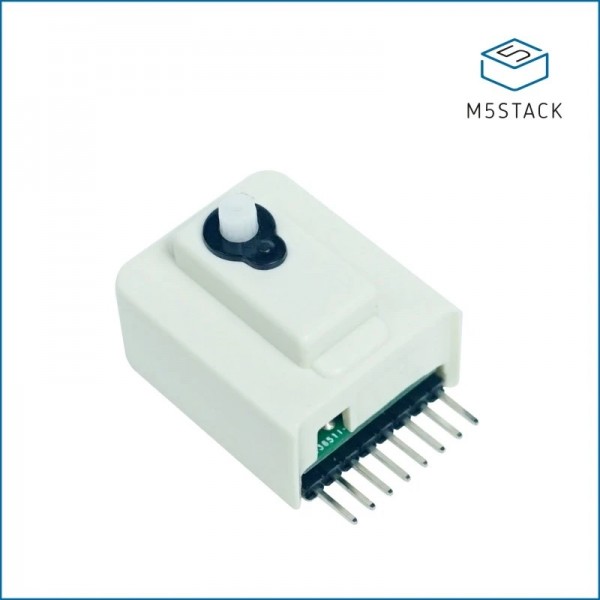

The M5Stack Servo Hat is add-on module for the M5StickC*. The module contains a PWM controlled ES9251II servo and can be attached at the top of a M5StickC. This Hat is programmable with Arduino and UIFlow (Blockly, Python).
For more information, see: M5Stack Servo Hat.
Note: The M5StickC is not included in this package.
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U075 |

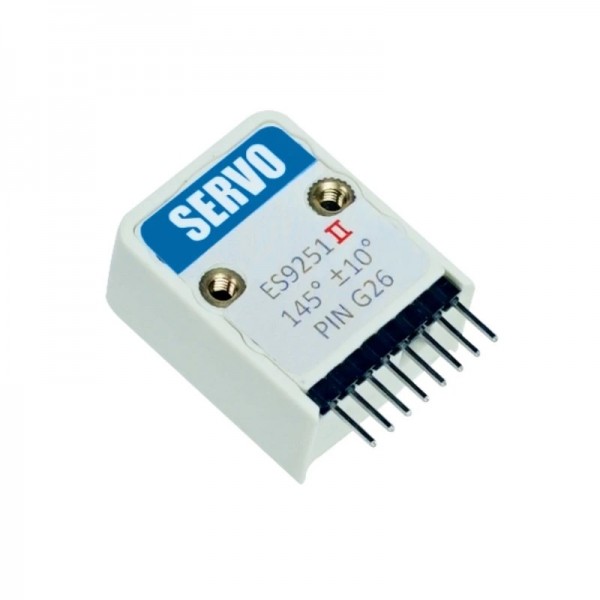

| Features | Servo motor (ES9251II) |
| General physical appearance | |
| Main color | White |
| Weight [g] | 10 |
| Dimension X [mm] | 29 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 19 |
| Mounting options | Pin headers Screw thread Adhesive layer |
| Form factor | M5Stack Stick layout/HAT |
| General electrical properties | |
| Minimum supply voltage [V DC] | 4.8 |
| Maximum supply voltage [V DC] | 6 |
| Minimum IO-pin input voltage [V] | 4.8 |
| Maximum IO-pin input voltage [V] | 6 |
| Communication | |
| Hardware interface(s) | PWM (Pin G26) |
| Actuator | |
| Actuator type | Brushed DC motor |
| Rotational range | 0 - 145° |
| Mechanical end-stops | No |
| Position feedback | No |
| Maximum holding torque [N.m] | 0.03 (0.3kg.cm) (@6.0V) 0.02 (0.25kg.cm) (@4.8V) |
| Maximum speed [s/60°] | 0.07 (@6.0V) 0.09 (@4.8V) |
| Transmission | |
| Gear material | Plastic |
| Shaft | |
| Shaft type | Spline 15T |
| Shaft length [mm] | 3.2 |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) |
| Package contents | |

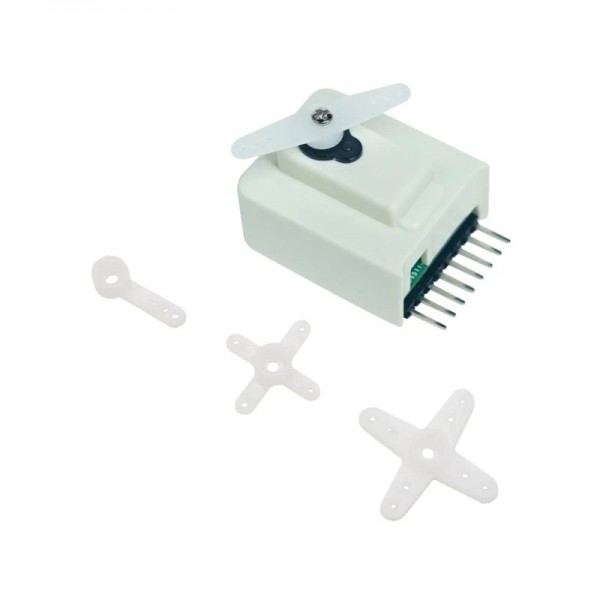

| Package contents | 1x M5Stack Servo Hat for M5StickC 1x Shaft accessories (see images) 2x Accessory mounting screw 3x Mounting screw 1x Adhesive strip |
