M5Stack DAC2 Hat - GP8413 - voor M5StickC
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006055
€9.50
Ex Tax: €7.85
Your shopping cart is empty!

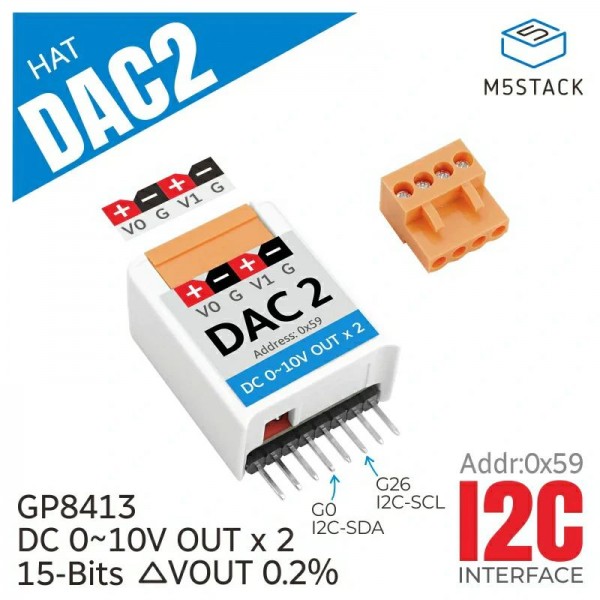

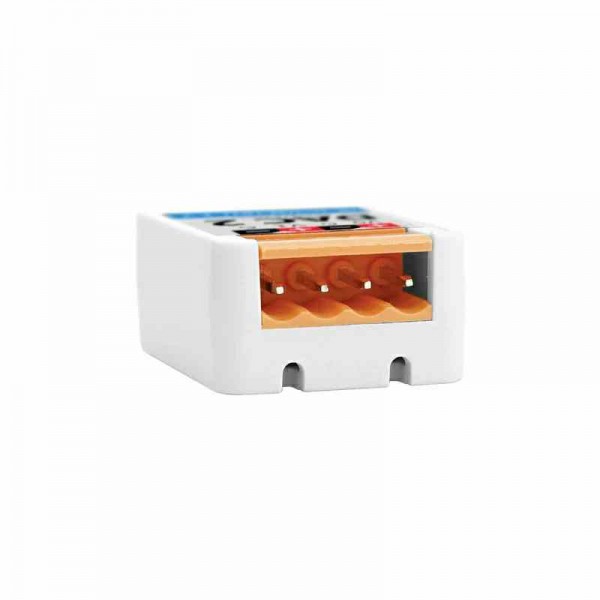

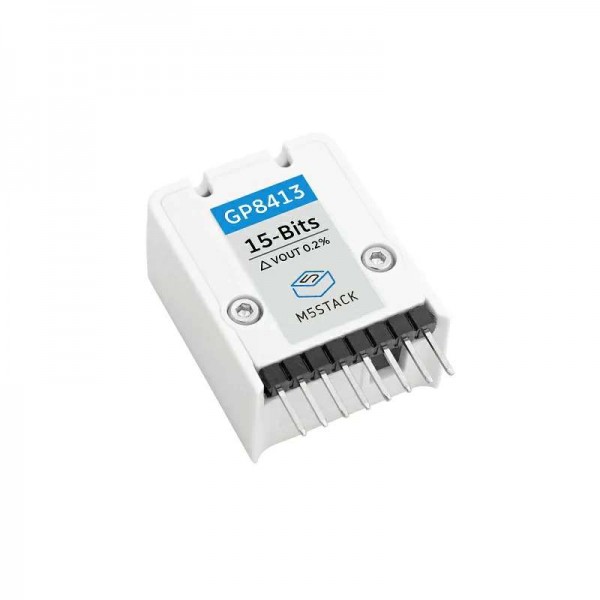

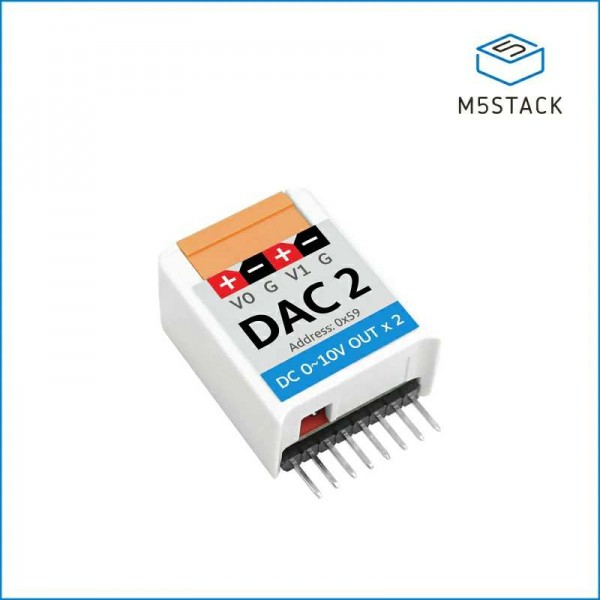

The M5Stack DAC2 HAT is a module made for the M5StickC. The module works via I2C communication with the M5StickC.
See the following page for more information: Wiki
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U068-B |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | Enclosure |
| General physical appearance | |
| Main color | White |
| Weight [g] | 7 |
| Dimension X [mm] | 30 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 14 |
| Mounting options | Pin headers |
| Form factor | Module (general) M5Stack Stick layout/HAT |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | DAC I2C |
| DAC chip | GP8413 |
| DAC type | General purpose |
| Maximum available analog output pins (DAC) | 2 |
| DAC resolution [bit] | 15 |
| Maximum DAC output voltage [V] | 10 |
| Default I2C address | 0x59 |
| Adjustable I2C address | Yes (via resistor modification) |
| Built-in pull-up resistor(s) [kΩ] | 10 |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) Detachable block male (HT3.96) |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |
| Package contents | 1x DAC2 Hat 1x Detachable screwterminal (HT3.96) |
