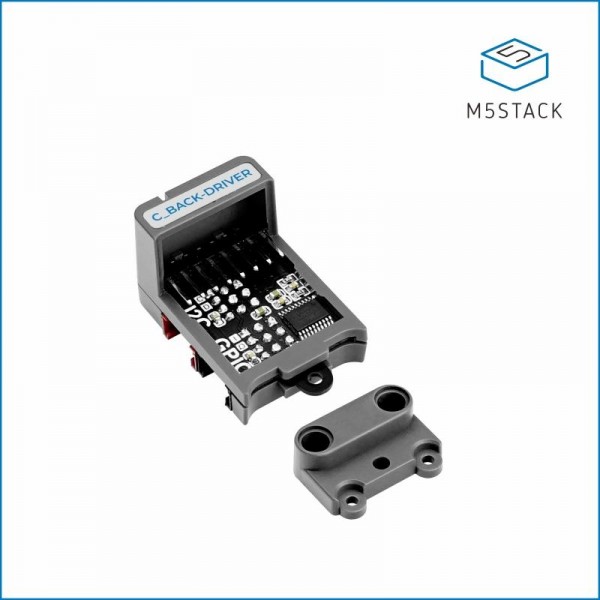

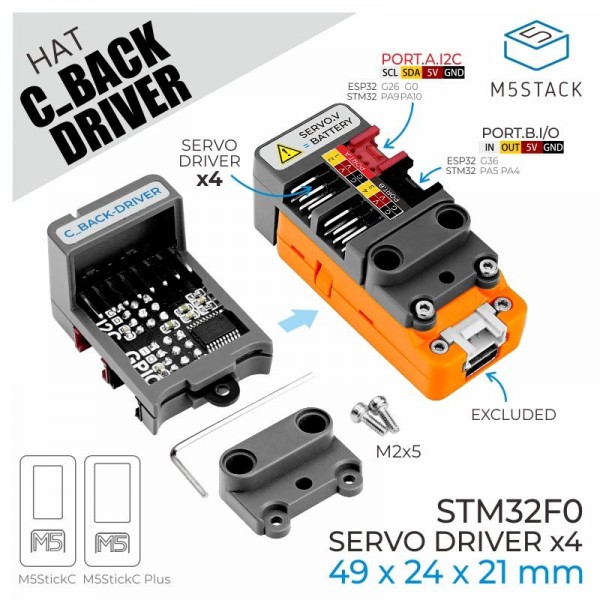

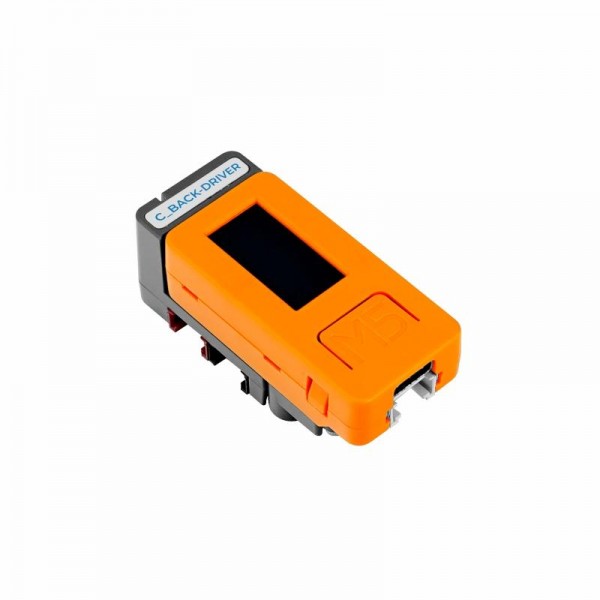

The M5Stack C-Back HAT is a module made for the M5StickC (Plus). The module works via I2C communication with the M5StickC.

Note: M5StickC not included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack C-Back HAT - Servo Driver - for M5StickC

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack C-Back HAT - Servo Driver - for M5StickC , M5STACK-A100 , Hat

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	A100
Features	Motor driver
General physical appearance
Main color	Gray/silver
Weight [g]	7
Dimension X [mm]	39
Dimension Y [mm]	24
Dimension Z [mm]	21
Mounting options	Pin headers Mounting hole(s) LEGO (compatible) holes
Form factor	Module (general) M5Stack Stick layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x38
Adjustable I2C address	No
Motor driver
Type	Driver
Supported motor type(s)	Servo motor (PWM)
Direction of rotation	Bi-directional
Number of servo motor channels	4
Maximum motor supply voltage [V DC]	4.2
Motor voltage [V DC]	Equal to battery voltage (from M5Stick)

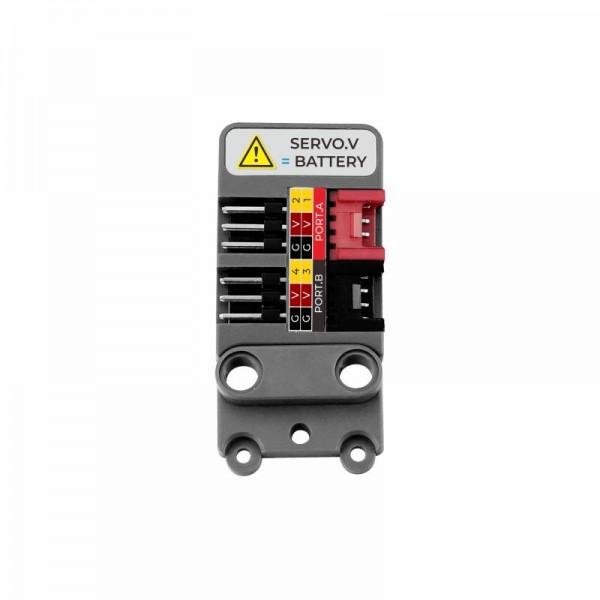

Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	HY2.0 (Grove) male Pin header male (2.54mm)
Package contents

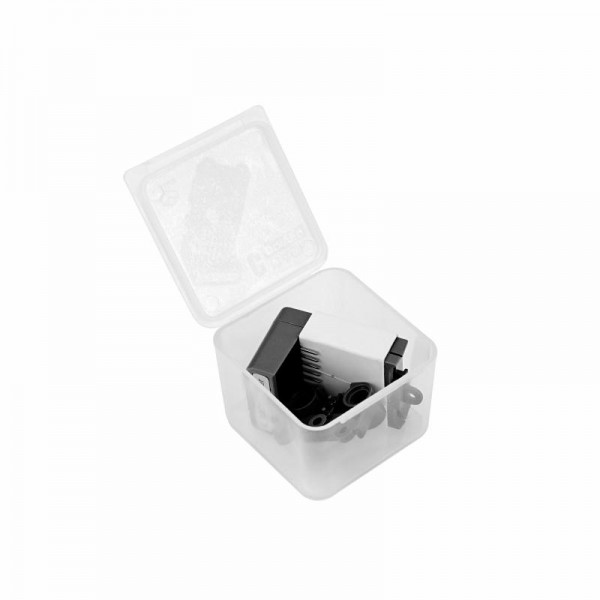

Package contents	1x C-Back Hat 1x Mounting piece with LEGO compatible holes 2x Screw M2x5 1x Allen key
