M5Stack M5Station-485 - ESP32
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004485
€59.00
Ex Tax: €48.76
10 or more €58.50
20 or more €58.00
50 or more €57.50
100 or more €57.00

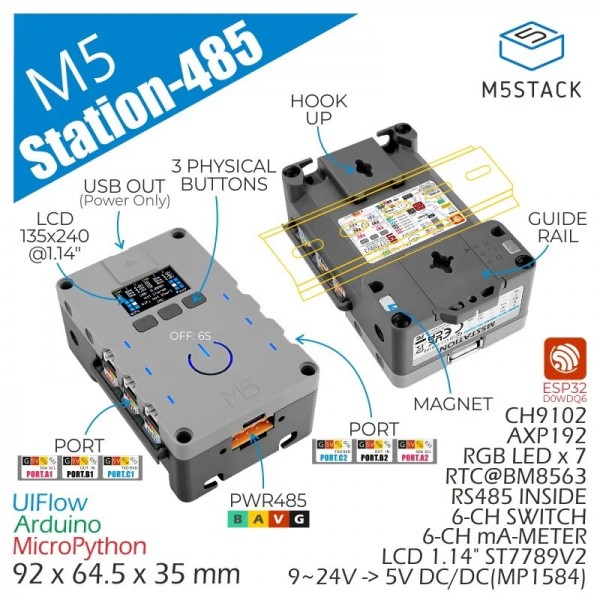

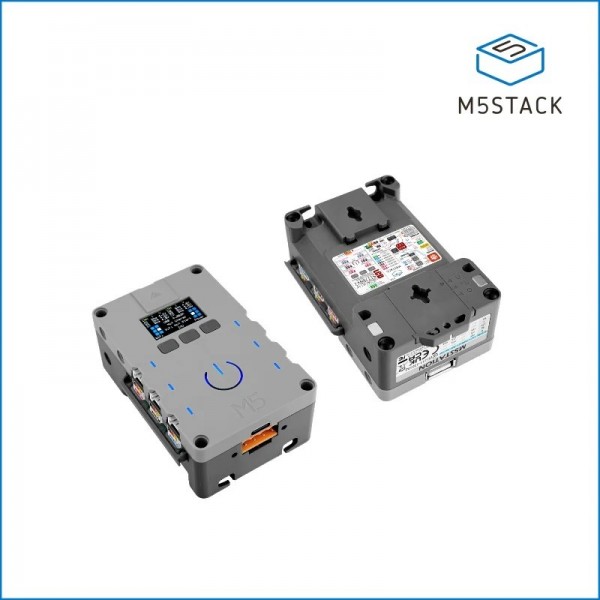

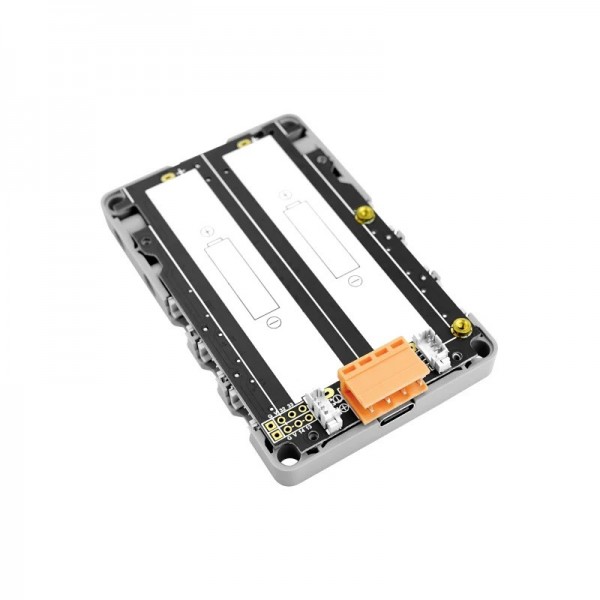

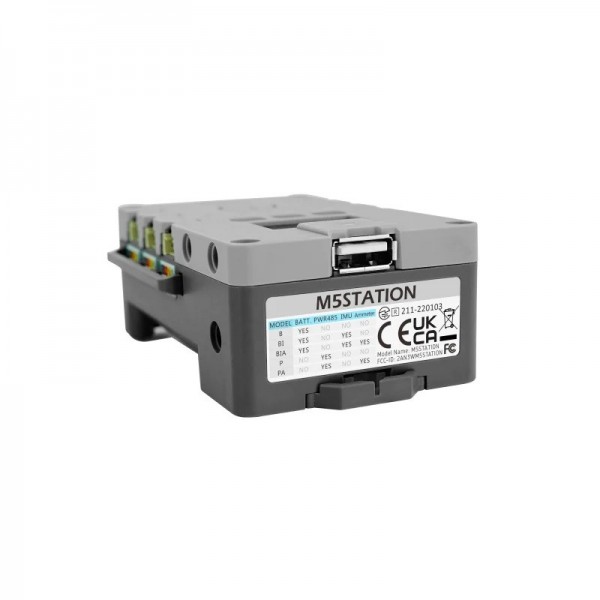

A development board from M5Stack based on an ESP32 including a display and an RS485 interface. Other products with a Grove connection can easily be connected via the Grove connectors. In addition, this module also has the ability to measure the current that each of the Grove ports consumes via the built-in current sensors.
See the following page for more information: Wiki
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, M5Stack M5Station-485 - ESP32
, 004485
, M5Stack
, K123
, Battery charger
, Display
, Microcontroller (MCU)
, Current sensor
, Battery protection circuit
, RTC
, Digital LED(s)
, I2C
, I2S
, SPI
, UART
, PWM
, ADC
, DAC
, GPIO
, RS485
, USB CDC
, Wi-Fi
, Bluetooth
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K123 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 60 |
| Features | RTC Display Current sensor Digital LED(s) Battery charger Microcontroller (MCU) Battery protection circuit |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 64 |
| Dimension X [mm] | 92 |
| Dimension Y [mm] | 65 |
| Dimension Z [mm] | 35 |
| Mounting options | Mounting hole(s) DIN-rail (EN 60715) LEGO (compatible) holes |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (lower possible via Li-ion/Li-Po battery) |
| Maximum supply voltage [V DC] | 24 (via RS-485 connector, maximum 5V DC via USB-C) |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC DAC I2C I2S PWM SPI GPIO UART RS485 USB CDC |
| Number of IO-pins | 10 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 8 |
| Maximum available analog output pins (DAC) | 2 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | CH9102F |
| RS485 chip | SP3485 |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |

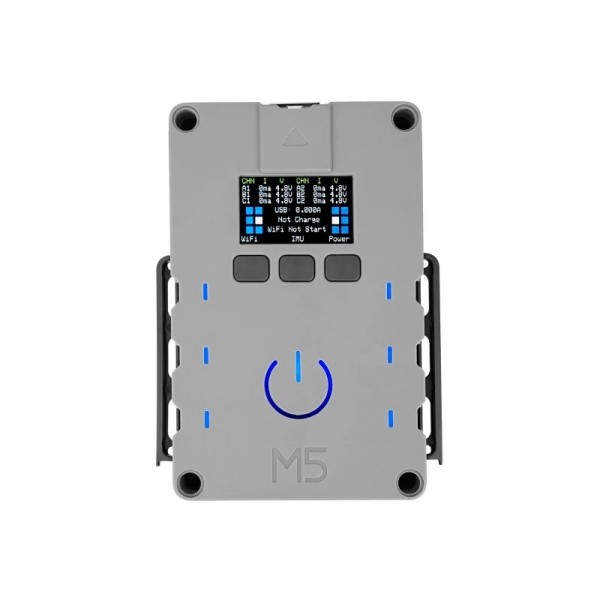

| Display | |
| Type | IPS |
| Driver | ST7789 |
| Screen diagonal [inch] | 1.14 |
| Number of pixels long side | 240 |
| Number of pixels short side | 135 |
| Pixel colors | RGB |
| Light source | |
| Type | LED |
| LED (driver) chip | SK6812 |
| Light color | RGB |
| Number of LEDs | 7 |
| Current sensor | |
| Sensor (chip) | INA3221 (Grove ports) INA199 (USB-A out) |
| Measuring method | Shunt |
| Shunt resistance [mΩ] | 10 |
| RTC | |
| RTC chip | BM8563 |
| Back-up battery/capacitor | None |
| Battery circuit | |
| Battery charger chip/SoC | AXP192 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 1400 |
| Adjustable charging current | Yes (via I2C, charging is possibly disabled by default) |
| Protection circuit | Yes |
| Safety features | Overcurrent Overvoltage Undervoltage |
| Connectors | |
| Power supply connector(s) | USB-C female Detachable block male (HT3.96) |
| IO-connector(s) | USB-C female HY2.0 (Grove) male Detachable block male (HT3.96) |
| Battery connector(s) | Molex Picoblade (compatible) male (Note: Uncommon 4p connector) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| Enclosure | |
| Material | ABS |
| Package contents | |
| Package contents | 1x M5Station-485 1x USB-A to USB-C cable (~100cm) 1x HEX Key |
