M5Stack M5Stamp S3 - ESP32-S3 Development Board
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004945
€9.50
Ex Tax: €7.85
Your shopping cart is empty!

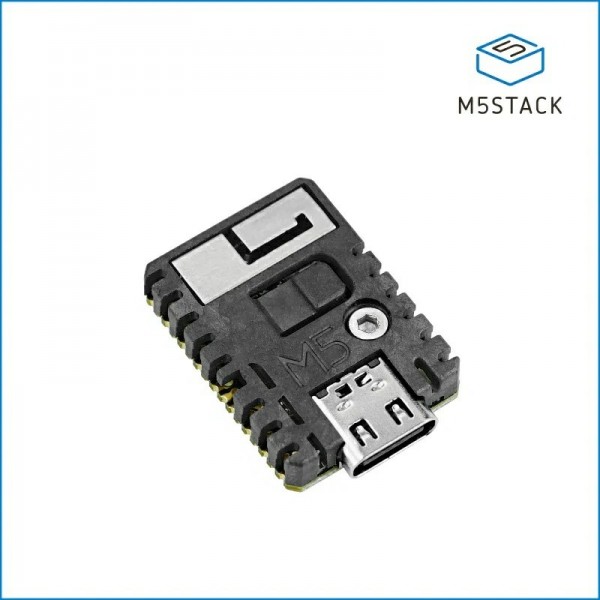

The M5Stamp ESP32-S3 is a compact microcontroller with an ESP32-S3 chip and extensive IO capabilities for embedded applications and more.
See the following page for more information: Wiki
General | |
Brand | M5Stack |
Manufacturer model/SKU | S007 |
Minimum operating temperature [°C] | 0 |
Maximum operating temperature [°C] | 40 |
Features | Microcontroller Enclosure Programmable button(s) Digital LED(s) |
General physical appearance | |
Main color | Gray/silver |
Weight [g] | 3 |
Dimension X [mm] | 24 |
Dimension Y [mm] | 18 |
Dimension Z [mm] | 5 |
Mounting options | SMT |
Form factor | Module (general) |
General electrical properties | |
Minimum supply voltage [V DC] | 3.3 |
Maximum supply voltage [V DC] | 5 |
Minimum IO-pin input voltage [V] | 3.3 |
Maximum IO-pin input voltage [V] | 3.3 |
IO-pin output voltage [V] | 3.3 |
Maximum IO-pin source current [mA] | 40 |
Maximum IO-pin sink current [mA] | 28 |
MCU/SoC | |
Manufacturer | Espressif |
Chip series | ESP32-S3 |
Maximum clock frequency [MHz] | 240 |
Number of cores | 2 |
Internal memory | |
SRAM [KB] | 512 |
PSRAM [MB] | 0 |
Flash memory [MB] | 8 |
EEPROM type | Emulated |
Communication | |
Hardware interface(s) | I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC |

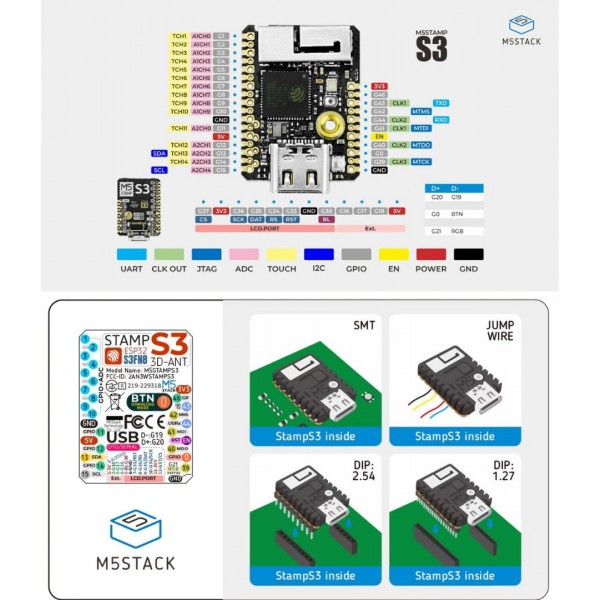

Number of IO-pins | 32 (incl. display port solder pads) 23 (excl. display port solder pads) |
Maximum available hardware PWM channels | 8 |
Maximum available analog input pins (ADC) | 18 (incl. display port solder pads) 15 (excl. display port solder pads) |
Maximum available analog output pins (DAC) | 0 |
Maximum available hardware UART interfaces | 3 |
Maximum available hardware I2C interfaces | 2 |
Maximum available hardware SPI interfaces | 2 |
USB to serial converter | Integrated into microcontroller |
Wireless communication | |
Interface(s) | Wi-Fi Bluetooth |
Wi-Fi chip/SoC | ESP32-S3 |
Wi-Fi frequency [GHz] | 2.4 |
Bluetooth chip/SoC | ESP32-S3 |
Bluetooth version | 5.0 |
Supported Bluetooth standard(s) | LE |
LED | |
LED (driver) chip | WS2812C |
LED color | RGB |
Connectors | |
Power supply connector(s) | Solder pad(s) Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female |
IO-connector(s) | Solder pad(s) Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female Through hole solder pin(s) (1.27mm) |
Wi-Fi/Bluetooth antenna connector | Built-in antenna |

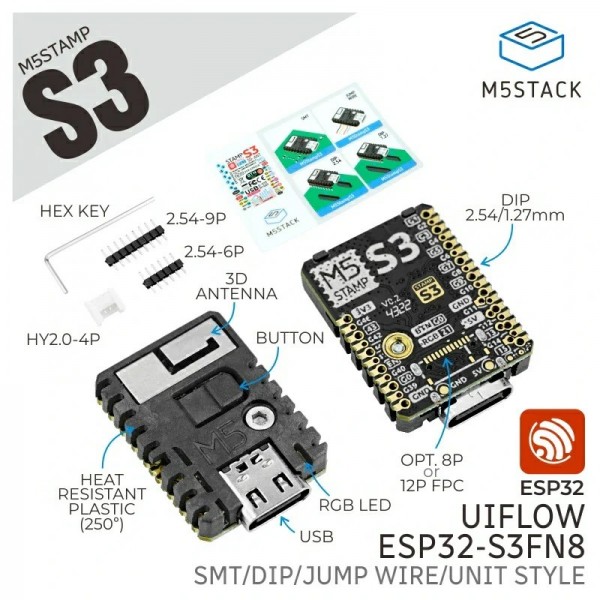

Package contents | |
Package contents | 1x M5STACK M5StampS3 1x Male pin header set (2.54mm) 1x Grove connector male 1x Hex key |
