M5Stack M5Stamp Pico - ESP32-PICO-D4 - 5 pieces
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005146
€33.50
Ex Tax: €27.69
Your shopping cart is empty!

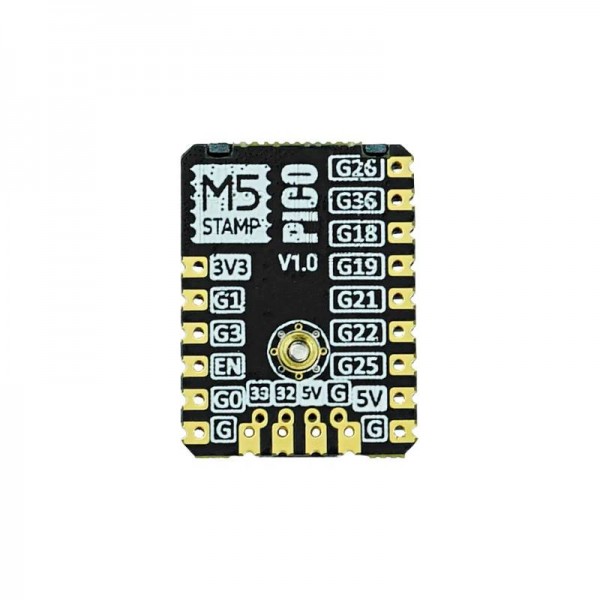

The M5Stamp Pico is a development board from M5Stack, based on an ESP32-PICO-D4, with a very compact design. Thanks to the ESP32 chip, this module has Wi-Fi and Bluetooth. The M5Stamp Pico is easy to program in UIFlow, Arduino and MicroPython using an external USB to serial converter. This one is recommended: ESP32 Downloader Kit.
See the following page for more information: Wiki
General | |
Brand | M5Stack |
Manufacturer model/SKU | C050-B |
Minimum operating temperature [°C] | 0 |
Maximum operating temperature [°C] | 60 |
Features | Microcontroller Enclosure Programmable button(s) Digital LED(s) |
General physical appearance | |
Main color | Gray/silver |
Weight [g] | 3 |
Dimension X [mm] | 24 |
Dimension Y [mm] | 18 |
Mounting options | SMT |
Form factor | Module (general) |
General electrical properties | |
Minimum supply voltage [V DC] | 3.3 |
Maximum supply voltage [V DC] | 5 |
Minimum IO-pin input voltage [V] | 3.3 |
Maximum IO-pin input voltage [V] | 3.3 |
IO-pin output voltage [V] | 3.3 |
Maximum IO-pin source current [mA] | 20 |
Maximum IO-pin sink current [mA] | 28 |
MCU/SoC | |
Manufacturer | Espressif |
Chip series | ESP32-PICO |
Maximum clock frequency [MHz] | 240 |
Number of cores | 2 |
Internal memory | |
SRAM [KB] | 520 |
PSRAM [MB] | 0 |
Flash memory [MB] | 4 |
EEPROM type | Emulated |
Communication | |
Hardware interface(s) | I2C I2S SPI UART PWM ADC DAC GPIO |
Number of IO-pins | 12 |
Maximum available hardware PWM channels | 11 |
Maximum available analog input pins (ADC) | 6 |
Maximum available analog output pins (DAC) | 2 |
Maximum available hardware UART interfaces | 3 |
Maximum available hardware I2C interfaces | 2 |
Maximum available hardware SPI interfaces | 2 |
USB to serial converter | None |
Wireless communication | |
Interface(s) | Wi-Fi Bluetooth |
Wi-Fi chip/SoC | ESP32-PICO |
Wi-Fi frequency [GHz] | 2.4 |
Bluetooth chip/SoC | ESP32-PICO |
Bluetooth version | 4.2 |
Supported Bluetooth standard(s) | LE Classic |
LED | |
LED (driver) chip | SK6812 |
LED color | RGB |
Connectors | |
Power supply connector(s) | Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) |
IO-connector(s) | Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) |
Wi-Fi/Bluetooth antenna connector | Built-in antenna |
Package contents | |
Package contents | 5x M5Stamp Pico 5x Sticker |
