M5Stack M5Stamp C3U - ESP32-C3 - 5 pieces

Availability: Directly available from warehouse in Eindhoven
SKU: 005145

Based on 0 review(s) - Write a review

€40.50

Ex Tax: €33.47

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

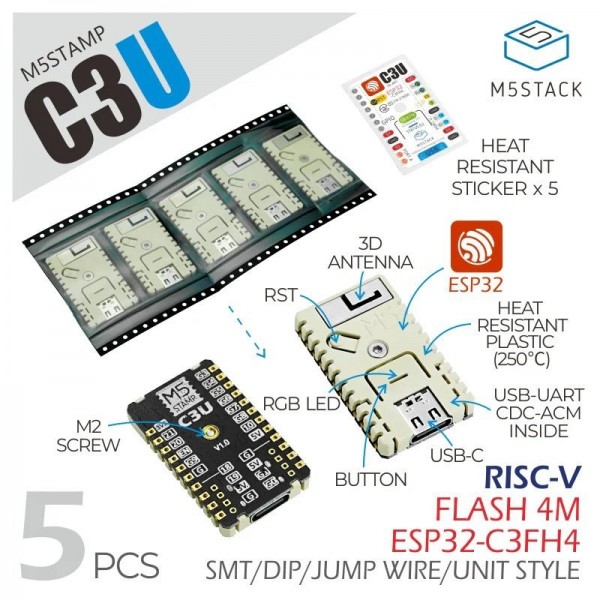

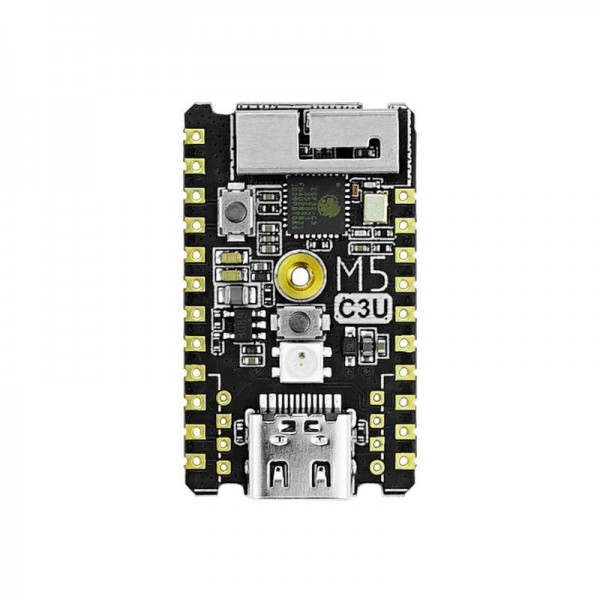

The M5Stamp C3U is a compact microcontroller with an ESP32-C3 chip and extensive IO capabilities for embedded and IoT applications. Compared to the M5Stamp C3, this C3U uses the USB to serial converter built into the ESP32-C3, rather than an external one.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack M5Stamp C3U - ESP32-C3 - 5 pieces

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack M5Stamp C3U - ESP32-C3 - 5 pieces , M5Stack-C122-B , M5Stamp

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	C122-B
Features	Microcontroller Enclosure Programmable button(s) Digital LED(s)
General physical appearance
Main color	White
Weight [g]	4

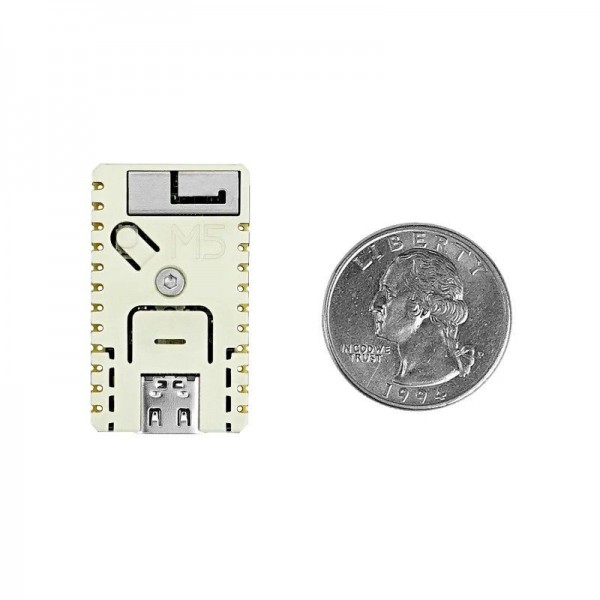

Dimension X [mm]	34
Dimension Y [mm]	20
Mounting options	SMT
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-C3
Maximum clock frequency [MHz]	160
Number of cores	1
Internal memory
SRAM [KB]	400
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC

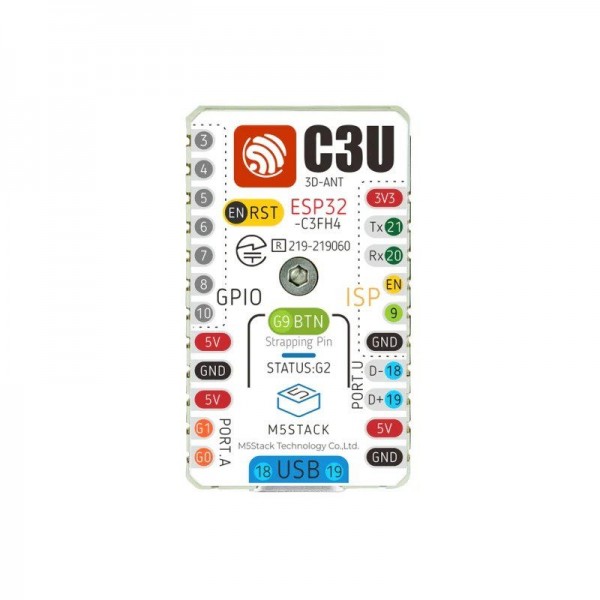

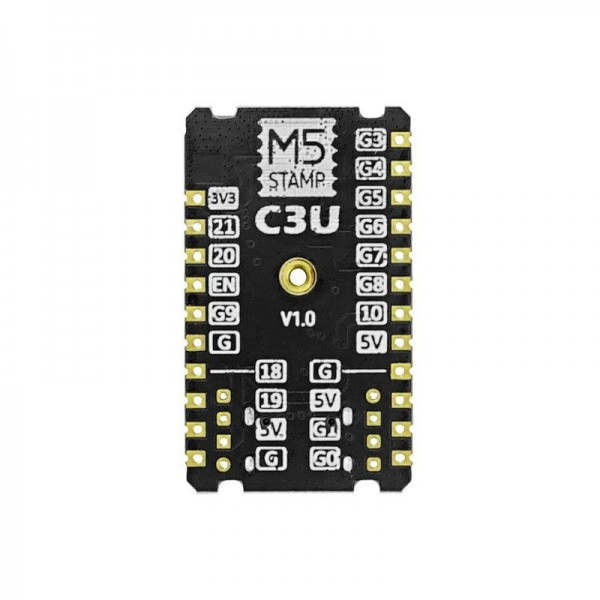

Number of IO-pins	14
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	5
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-C3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
LED
LED (driver) chip	SK6812
LED color	RGB
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents

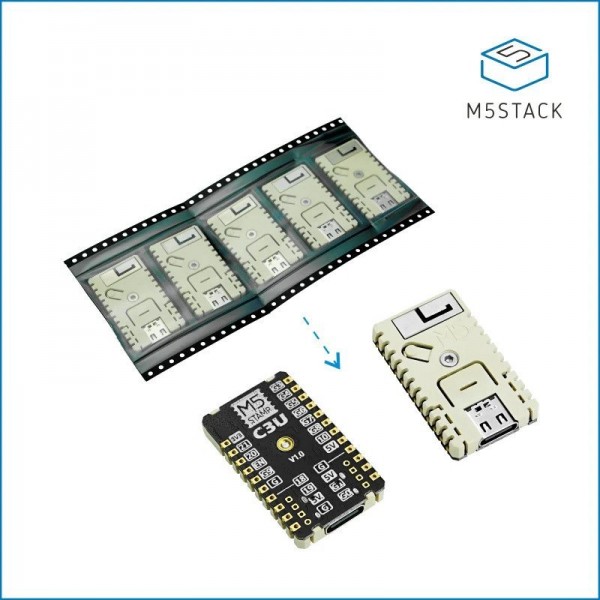

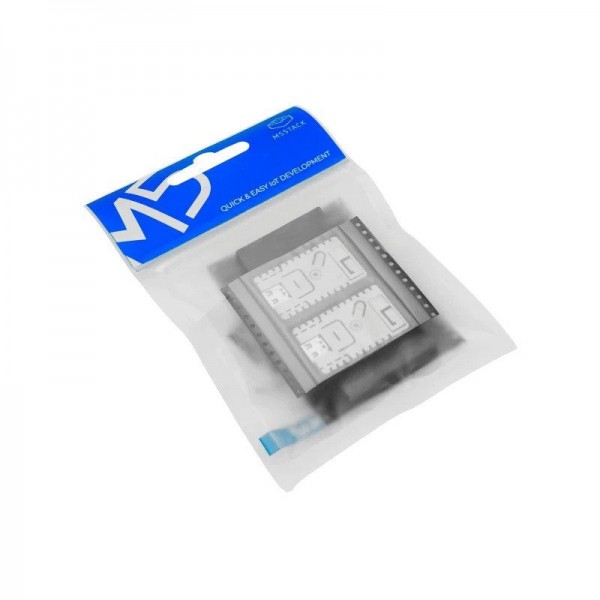

Package contents	5x M5Stamp C3U 5x Heat Resistant Sticker
