M5Stack Servo2 Module 13.2 - for M5Core

M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
M5Stack Servo2 Module 13.2 - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003221
Based on 0 review(s) - Write a review
€17.00
Ex Tax: €14.05
Add to Cart
Add to wishlist

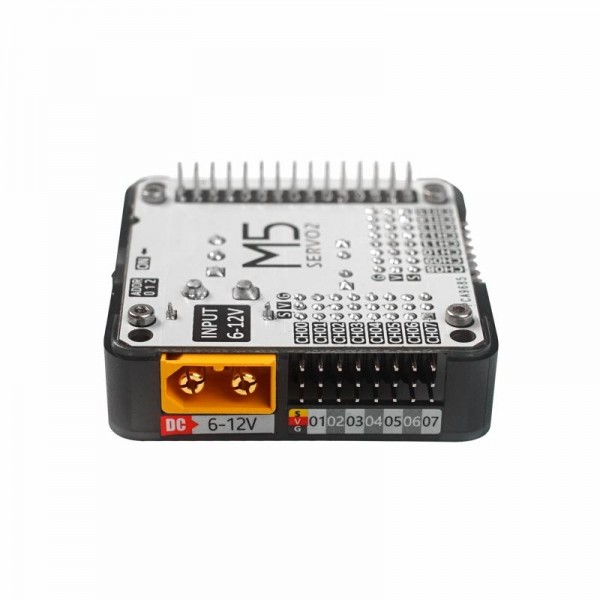

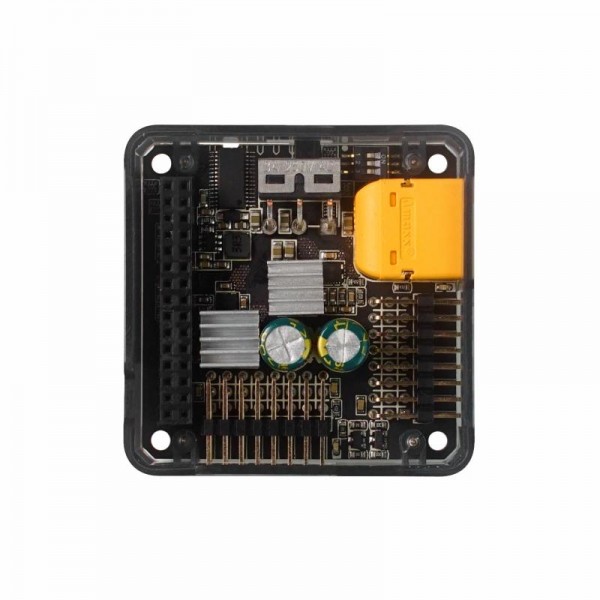

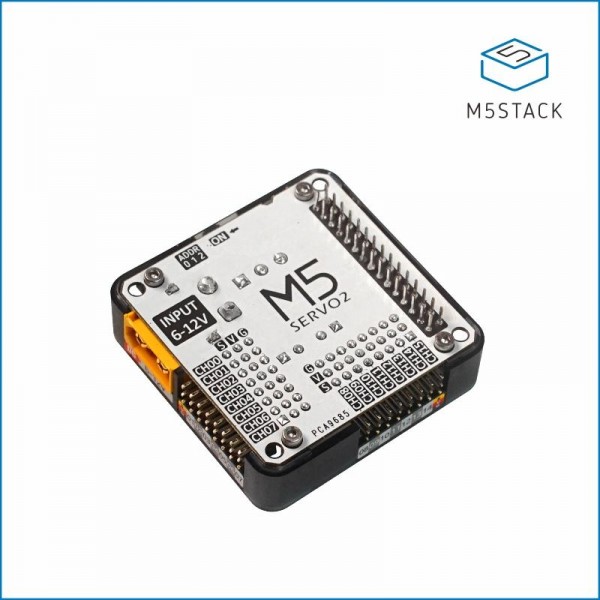

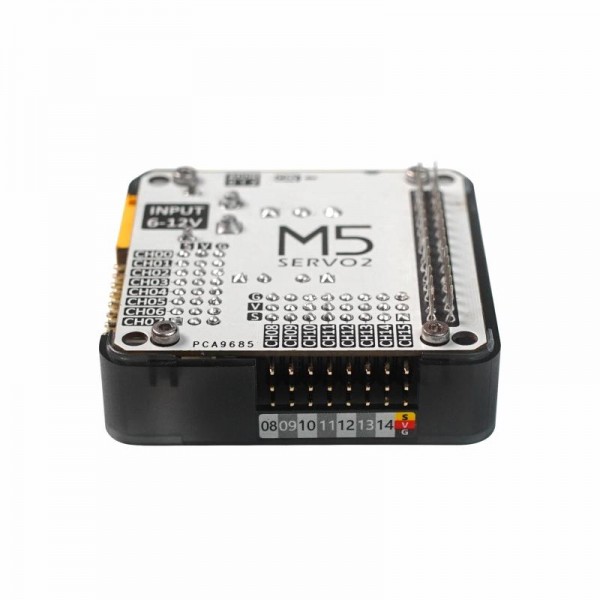

This is a servo driver module for the M5Core that can control up to 16 different servo motors. The module has a built-in voltage converter that brings the input voltage to the correct servo voltage.

Specifications:

  • Input voltage: 6-12V DC (via XT60 connector)
  • Output voltage servo channels: 5V DC
  • Output power:
    • Per channel: 25W
    • Total channels: 35W
    • Total channels in combination with a battery module: 10W
  • Number of servo channels: 16
  • Communication: I2C
    • I2C address: 0x40
  • Dimensions: 54 x 54 x 13.2mm

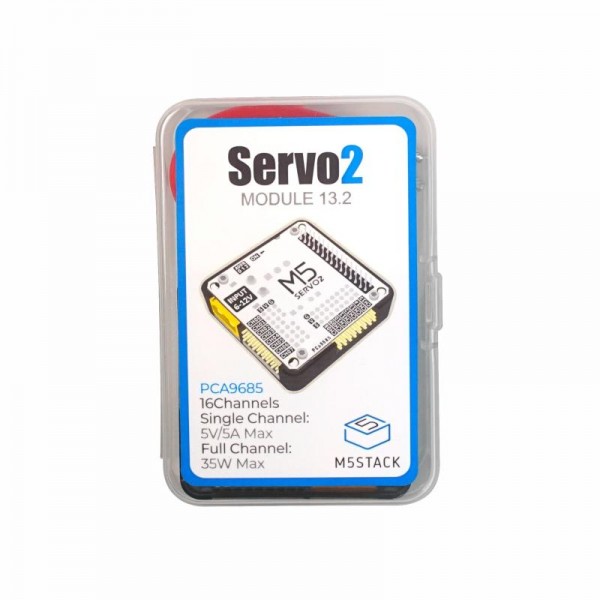

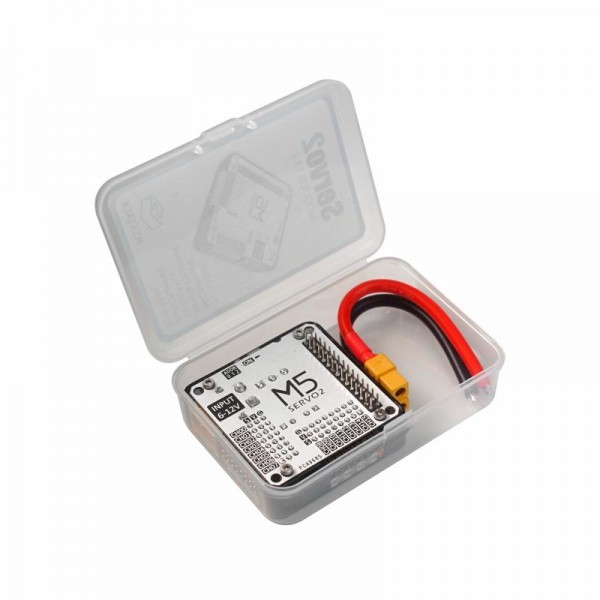

Package contents:

  • 1x M5Stack Servo2 Module 13.2
  • 1x Power cable with XT60 connector

See the following page for more information: Wiki
