Name: M5Stack RCA Audio-Video Module 13.2 - for M5Core - M5STACK-M125
Brand: M5Stack
SKU: 004895
Price: 15 EUR
Availability: InStock

M5Stack RCA Audio-Video Module 13.2 - for M5Core

Availability: Directly available from warehouse in Eindhoven
SKU: 004895

Based on 0 review(s) - Write a review

€15.00

Ex Tax: €12.40

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

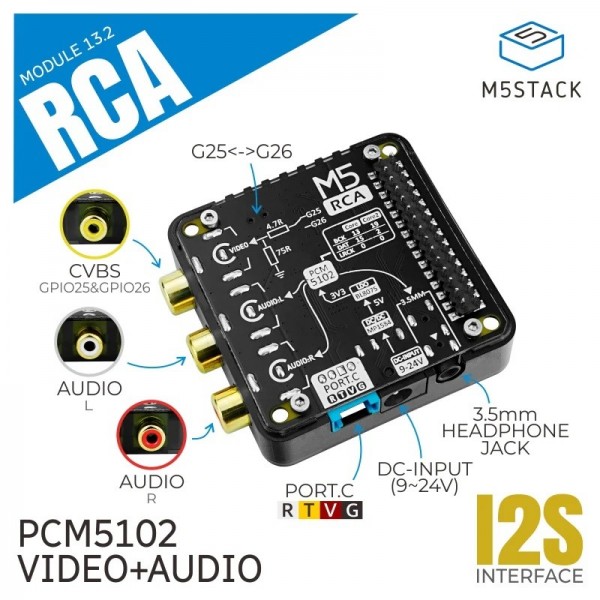

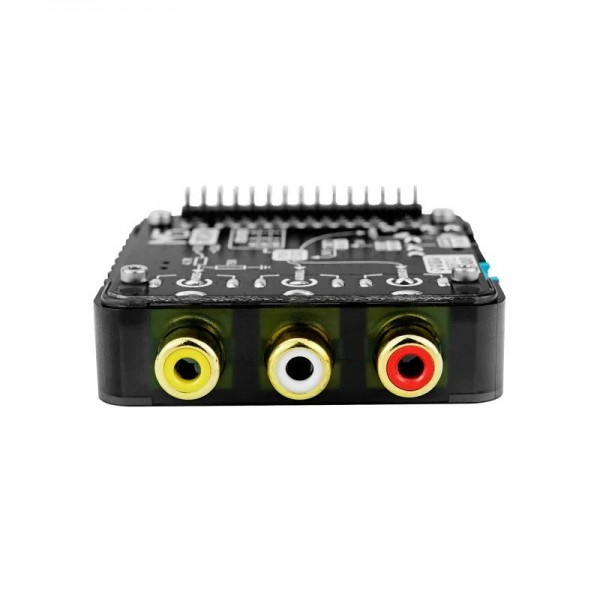

A module from M5Stack with RCA connectors that can drive a composite video display including stereo audio. The module also has a built-in voltage converter with which the entire system can be supplied with a voltage between 9-24V DC. The module also has a Grove extension connector and an audio jack so that the module can also be used as an audio source for more modern amplifiers.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack RCA Audio-Video Module 13.2 - for M5Core

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack RCA Audio-Video Module 13.2 - for M5Core , M5STACK-M125 , Modules

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	M125
General physical appearance
Main color	Black
Weight [g]	23
Dimension X [mm]	54
Dimension Y [mm]	54
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) M5Stack Module
General electrical properties
Minimum supply voltage [V DC]	5 (via pin headers) 9 (via DC-jack)
Maximum supply voltage [V DC]	24 (via DC-jack) 5 (via pin headers)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2S DAC
DAC chip	PCM5102A
Maximum available analog output pins (DAC)	2
DAC resolution [bit]	32
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) DC-jack 5.5/2.1mm female
IO-connector(s)	HY2.0 (Grove) male Pin header male (2.54mm) Pin header female (2.54mm) Audio jack 3.5mm female
Package contents
Package contents	1x RCA Module
