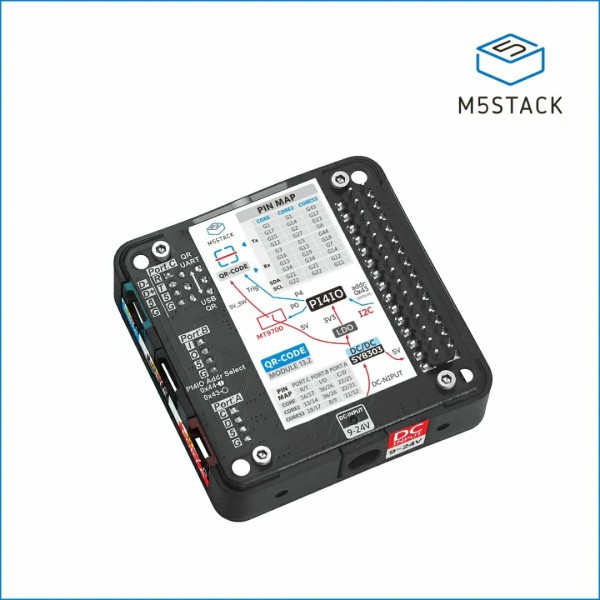

M5Stack QR Code Scanner Module 13.2 - for M5Core

M5Stack QR Code Scanner Module 13.2 - for M5Core
M5Stack QR Code Scanner Module 13.2 - for M5Core
M5Stack QR Code Scanner Module 13.2 - for M5Core
M5Stack QR Code Scanner Module 13.2 - for M5Core
M5Stack QR Code Scanner Module 13.2 - for M5Core
M5Stack QR Code Scanner Module 13.2 - for M5Core
M5Stack QR Code Scanner Module 13.2 - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007381
Based on 0 review(s) - Write a review
€21.50
Ex Tax: €17.77
Add to Cart
Add to wishlist

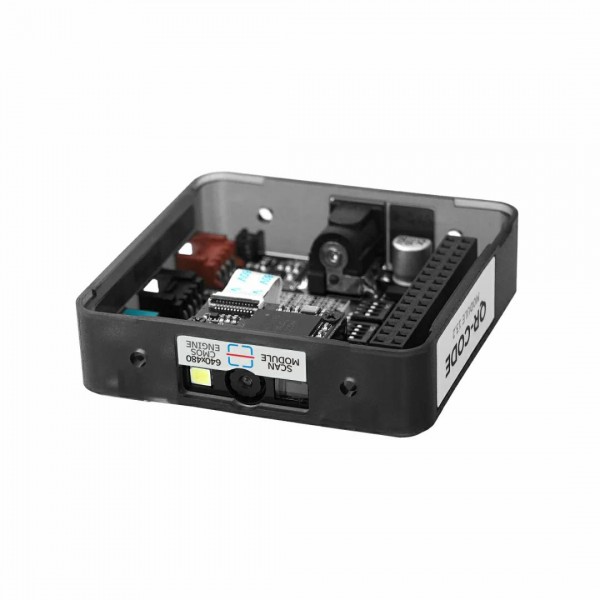

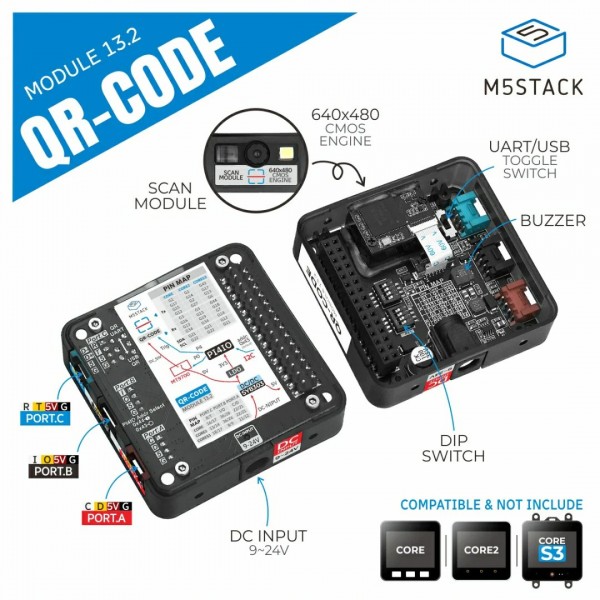

The QR Code Scanner Module 13.2 from M5Stack is used for scanning 1D and 2D barcodes. It features an integrated buzzer and a toggle switch to select between UART and USB communication interfaces.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack QR Code Scanner Module 13.2 - for M5Core

This product has 0 review(s) in total.

Tags: M5Core , Modules , M5Stack QR Code Scanner Module 13.2 - for M5Core , 007381 , M5Stack , M145 , Enclosure , Scanner , Speaker/buzzer , I2C , UART , USB CDC

Specifications

General
Brand M5Stack
Manufacturer model/SKU M145
Features Scanner
Enclosure
Speaker/buzzer
General physical appearance
Main color Black
Weight [g] 23
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 14
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
via Headers
9
via DC-Jack
Maximum supply voltage [V DC] 5
via Headers
24
via DC-Jack
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
UART
USB CDC
Default I2C address 0x43
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 4.7
Scanner/camera
Type Scanner
Number of pixels long side 640
Number of pixels short side 480
Supported 1D codes Codabar
Code 11
Code 39
Code 93
EAN/UPC
Code 128
GS1 Databar
MSI-Plessey
Industrial 25
Matrix 2 of 5
Interleaved 2 of 5
Supported 2D codes PDF417
QR Code
Data Matrix
Minimum scan distance [mm] 50
Maximum scanning distance [mm] 160
Scanning accuracy [mil] 5
Maximum scan angle (deflection/skew) [±°] 55
Maximum scan angle (elevation/pitch) [±°] 55
Speaker
Speaker type Buzzer
Connectors
Power supply connector(s) DC-jack 5.5/2.1mm female
Pin header female (2.54mm)
IO-connector(s) HY2.0 (Grove) male
Pin header female (2.54mm)
Package contents
Package contents 1x QR Code Scanner Module 13.2
