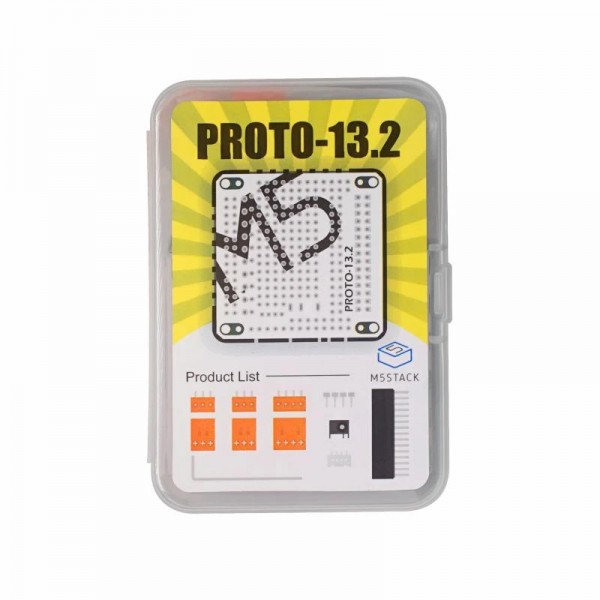

M5Stack Proto 13.2 Module

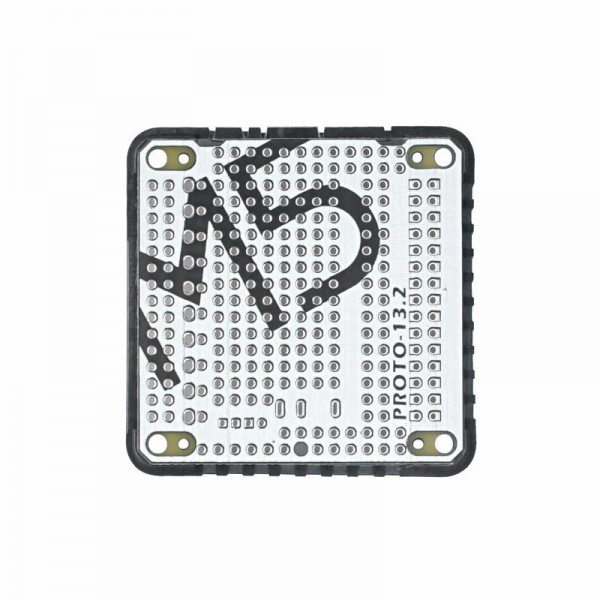

This is a prototype module with a height of 13.2mm for the M5Stack ESP32 Core and Core 2 with a blank printed circuit board, header pins and other connectors that connect the M5Stack Core. These headers are not connected to pins on the PCB.

This circuit board is specifically intended for the M5Stack Core/Core2 and can be installed as an extra layer on top.

Specifications:

• Number of pins: 169
• Pin spacing: 2.54mm
• Color: Black/white
• Dimensions: 54.2 x 54.2 x 13.2mm

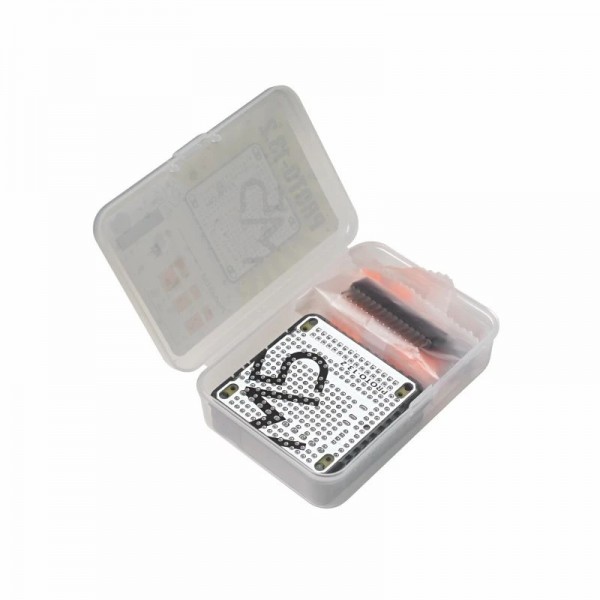

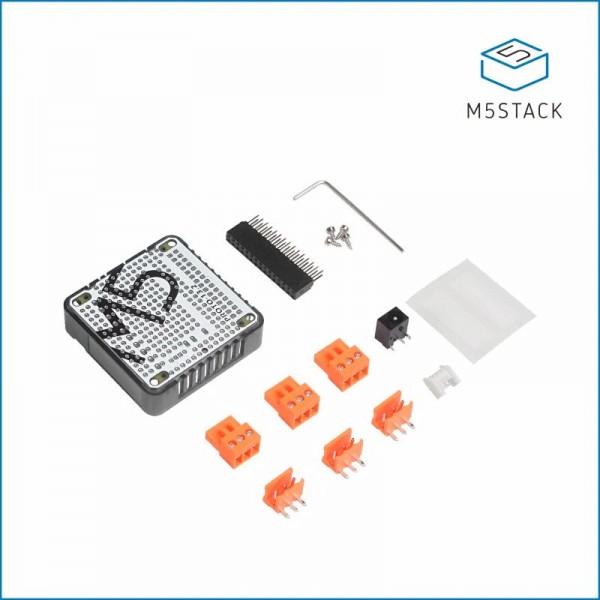

Package contents:

• 1x M5Stack Proto 13.2
• 1x 2x15P Header (M-Bus)
• 3x VH-3.96 3P connector
• 1x HY-2.0 4P (Grove) connector
• 1x DC 5V power connector
• 4x M2*5mm Allen screw
• 1x M2 Allen key
• 1x Sticker

See the following page for more information: M5Stack-PROTO-13.2.
