M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core

M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006053
Based on 0 review(s) - Write a review
€29.00
Ex Tax: €23.97
10 or more €28.75
20 or more €28.50
50 or more €28.25
100 or more €28.00
Add to Cart
Add to wishlist

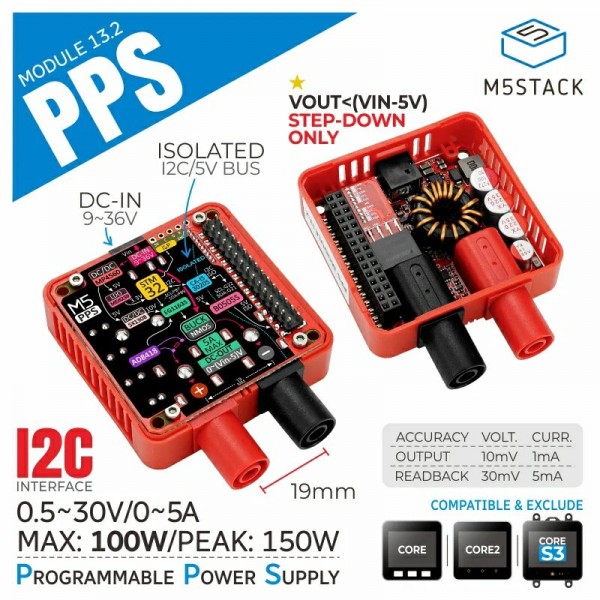

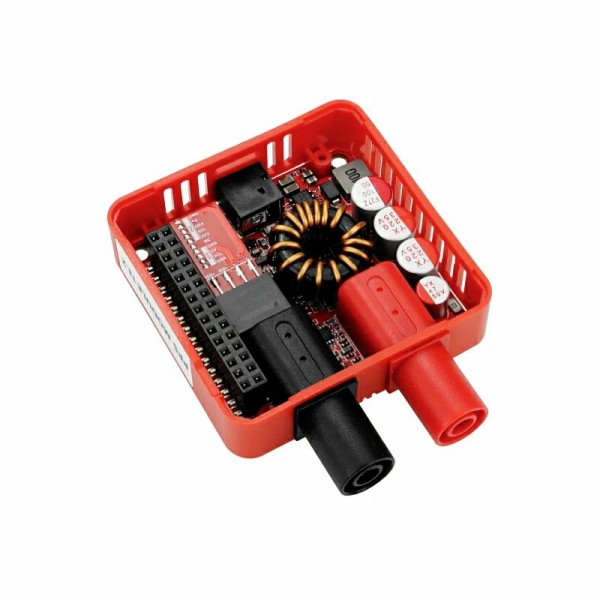

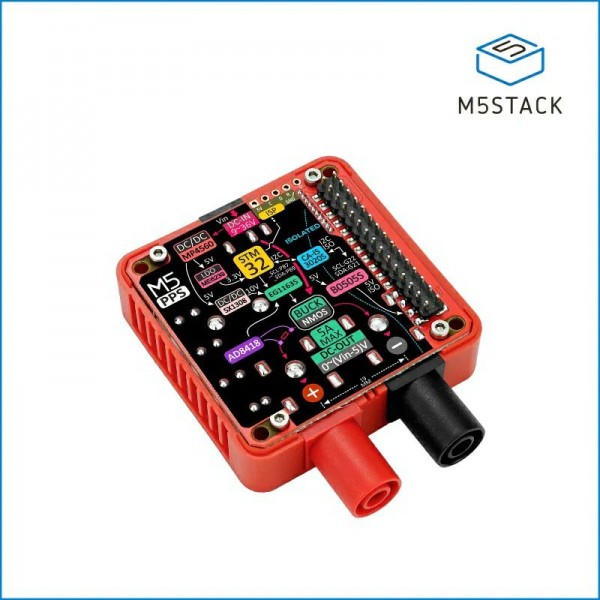

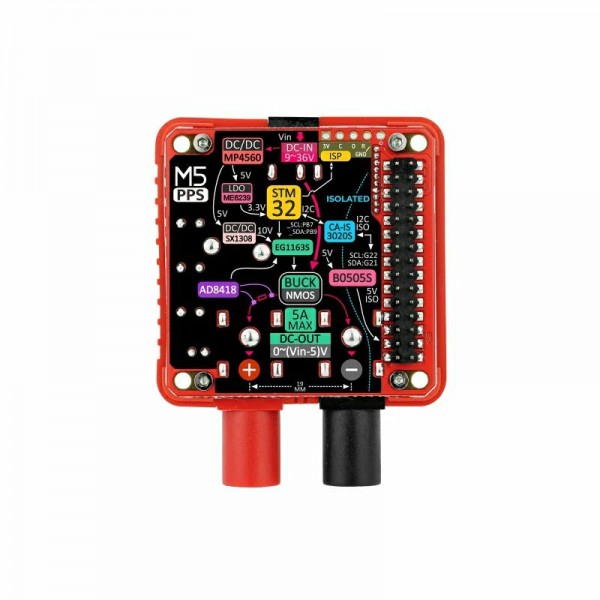

This is a programmable power supply (PPS) from M5Stack made for the M5Core series. Both the output voltage and output current can be set and read back. The module is calibrated from the factory and comes with a calibration report.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core

This product has 0 review(s) in total.

Tags: M5Core , Modules , M5STACK Programmable Power Supply PPS Module 13.2 - for M5Core , 006053 , M5Stack , M137 , Voltage converter , Current sensor , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU M137
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Current sensor
Voltage converter
General physical appearance
Main color Red
Weight [g] 44
Dimension X [mm] 54
Dimension Y [mm] 54
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 9
Maximum supply voltage [V DC] 36
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Isolated communication Yes
ADC accuracy [mV] 30
Default I2C address 0x35
Adjustable I2C address Yes
Current sensor
Sensor (chip) AD8418
Measuring method Shunt
Shunt resistance [mΩ] 10
Accuracy [±mA] 5.0
Voltage converter
Chip/SoC EG1163S
Voltage converter type Buck
Conversion DC-DC
Isolated No
(input to 5V out for M5Core is isolated)
Soft start Yes
Output voltage type Variable (discrete)
(10mV accuracy)
Constant current function Yes, adjustable
(1mA accuracy)
Minimum input voltage [V DC] 9.0
Maximum input voltage [V DC] 36
Minimum output voltage [V DC] 0.5
Maximum output voltage [V DC] 30
Minimum input and output voltage difference [V DC] 5
Maximum input current [A] 0.0
Maximum output current [A] 5
Maximum output power [W] 100
Safety features Short circuit
Overcurrent (output)
Under voltage (input)
Undervoltage locktout (UVLO) [V] 7.5
Connectors
Power supply connector(s) DC-jack 5.5/2.5mm female
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Input voltage connector(s) DC-jack 5.5/2.1mm female

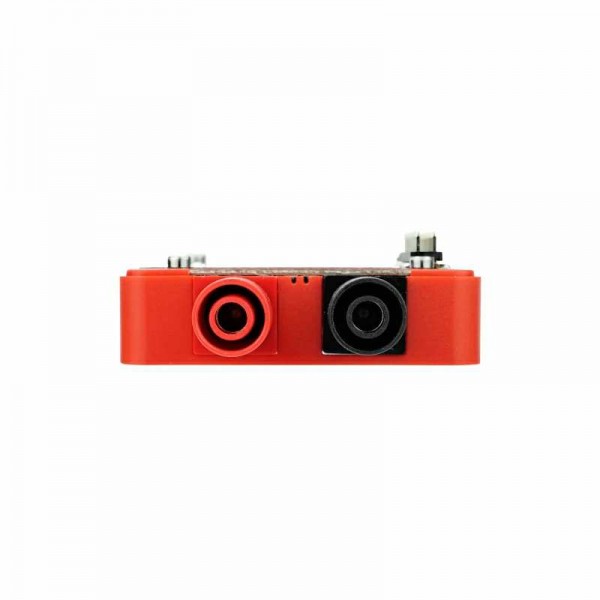

Output voltage connector(s) Banana female
Package contents
Package contents 1x Programmable Power Supply PPS Module 13.2
