M5Stack PM2.5 Air Quality Module - PMSA003

M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
M5Stack PM2.5 Air Quality Module - PMSA003
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005618
Based on 0 review(s) - Write a review
€32.75
Ex Tax: €27.07
Add to Cart
Add to wishlist

The PM2.5 air quality module from M5Stack with a PMSA003 laser dust sensor.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over M5Stack PM2.5 Air Quality Module - PMSA003

This product has 0 review(s) in total.

Tags: M5Core , Modules , M5Stack PM2.5 Air Quality Module - PMSA003 , 005618 , M5Stack , M134 , Enclosure , Particulate matter sensor , UART

Specifications

General
Brand M5Stack
Manufacturer model/SKU M134
Minimum operating humidity [%R.H.] 0
Maximum operating humidity [%R.H.] 99
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Particulate matter sensor
General physical appearance
Main color Gray/silver
Weight [g] 34
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 13
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3.1
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 9600
Particulate matter sensor
Sensor (chip) PMSA003
Output concentration(s) PM1
PM10
PM2.5
Minimum particle size [μm] 0.3
Minimum measuring range [mg/m³] 0.0
Maximum measuring range [mg/m³] 1.0
(PM2.5)
Smallest resolution [μg/m³] 1.0
Accuracy [±μg/m³] 10
(PM2.5, See datasheet for details)
Accuracy [%] 10
(PM2.5, See datasheet for details)
Connectors
Power supply connector(s) USB-C female
Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Enclosure
Material Polycarbonate (PC)

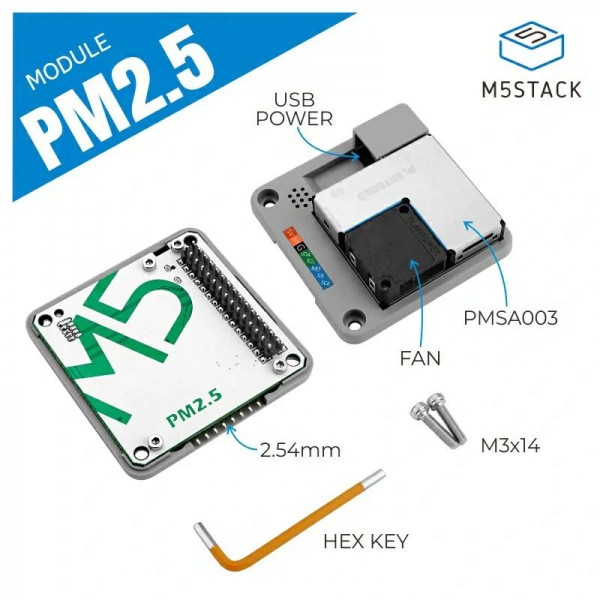

Package contents
Package contents 1x PM2.5 base
2x M3 Bout
1x Hex key
