M5Stack ODrive Module 13.2 - for M5Core

M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
M5Stack ODrive Module 13.2 - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005156
Based on 0 review(s) - Write a review
€49.50
Ex Tax: €40.91
Add to Cart
Add to wishlist

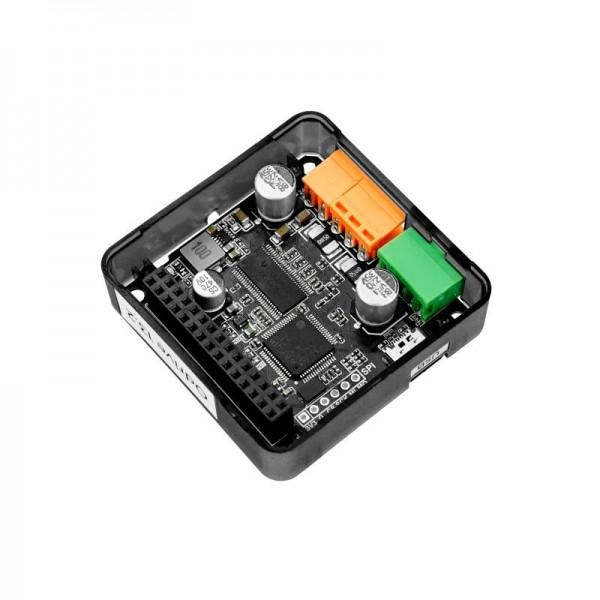

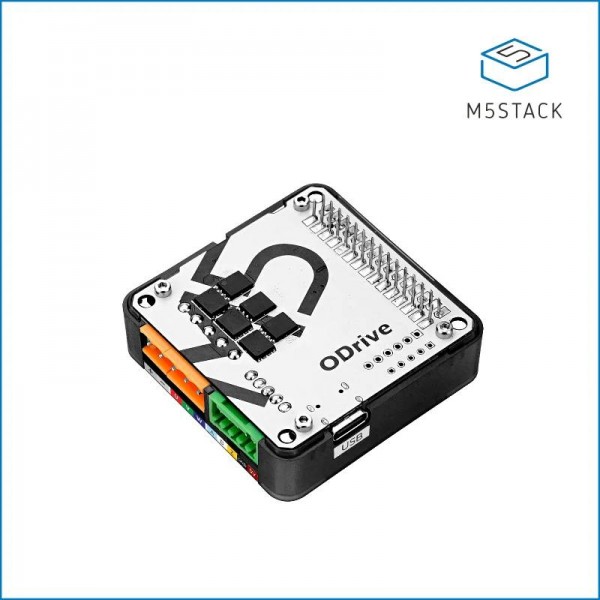

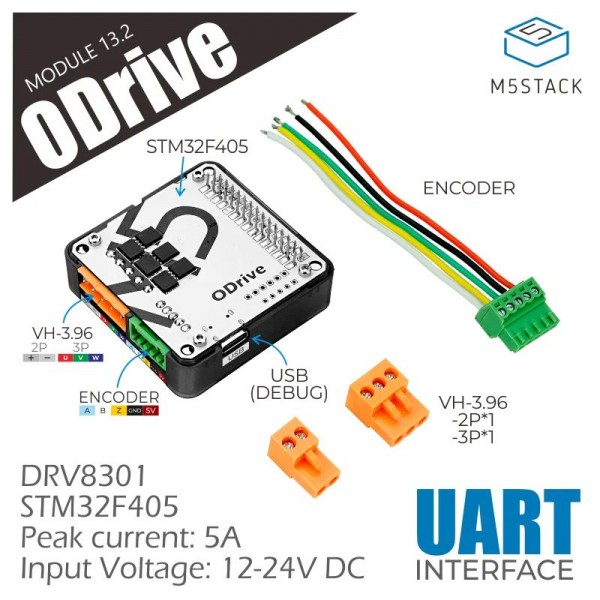

A ODrive motor driver module from M5Stack. This module is based on the open source motion control solution ODrive. The module can drive a single three-fase brushless motor with encoder (also like a servo motor).

Note: No motor or encoder is included with this module.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack ODrive Module 13.2 - for M5Core

This product has 0 review(s) in total.

Tags: M5Core , Modules , M5Stack ODrive Module 13.2 - for M5Core , 005156 , M5Stack , M036 , Motor driver , UART , USB CDC

Specifications

General
Brand M5Stack
Manufacturer model/SKU M036
Features Motor driver
General physical appearance
Main color Black
Weight [g] 23
Dimension X [mm] 54
Dimension Y [mm] 54
Mounting options Pin headers
Mounting hole(s)
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 12
Maximum supply voltage [V DC] 24
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
USB CDC
Motor driver
Type Driver
Driver chip DRV8301
Supported motor type(s) Brushless DC motor
Direction of rotation Bi-directional
Number of brushless DC motor channels 1
Minimum motor supply voltage [V DC] 12
Maximum motor supply voltage [V DC] 24
Motor voltage [V DC] Equal to motor supply voltage
Maximum continuous RMS current per phase [A] 4
Maximum peak current per phase [A] 5
Current limiter Yes, adjustable
Safety features Overcurrent
Temperature
Connectors
Power supply connector(s) Detachable block female (HT3.96)
IO-connector(s) USB-C female
Pin header male (2.54mm)
Pin header female (2.54mm)
Detachable block male (EDG-2.54)
Motor connector(s) Detachable block male (HT3.96)
Package contents
Package contents 1x ODrive Module
1x Detachable screw terminal 2p (HT3.96)
1x Detachable screw terminal 3p (HT3.96)
1x Detachable clamp terminal 4p
