  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005777
Based on 0 review(s) - Write a review
€14.50
Ex Tax: €11.98
Add to Cart
Add to wishlist

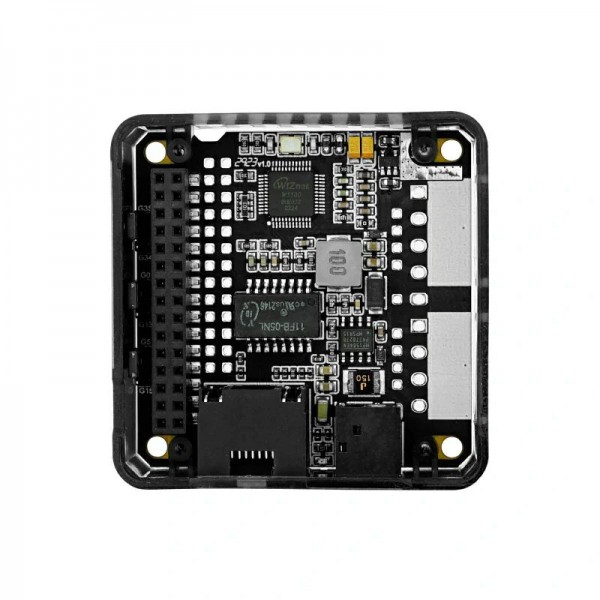

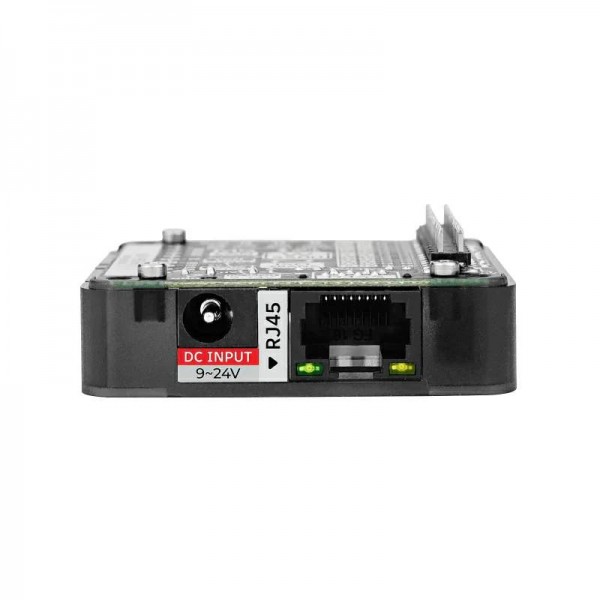

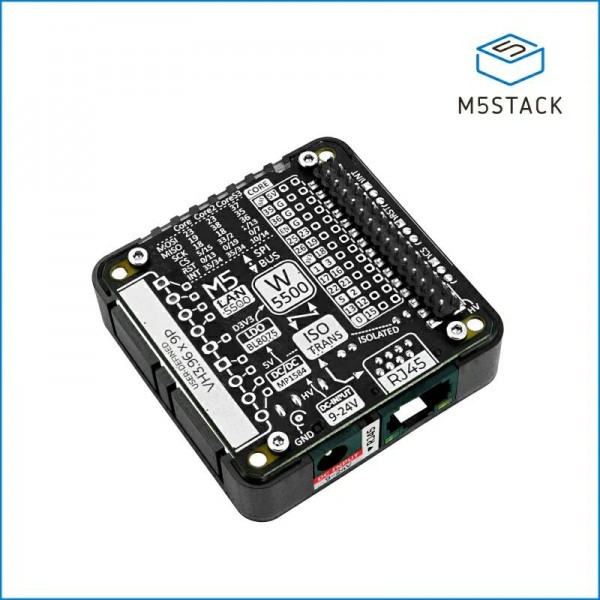

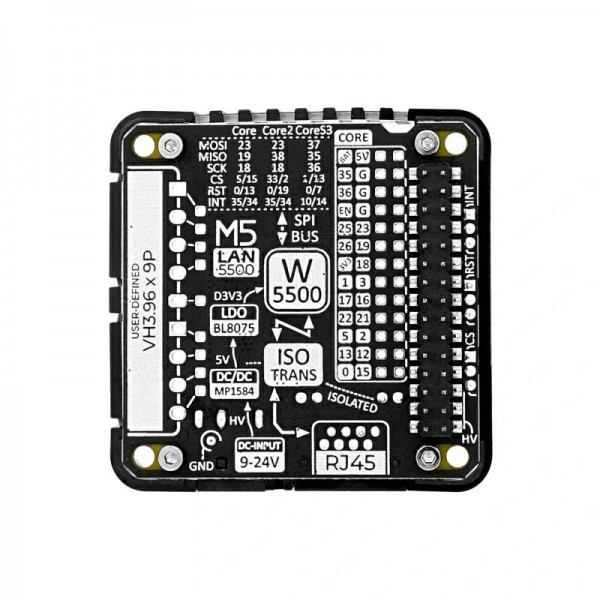

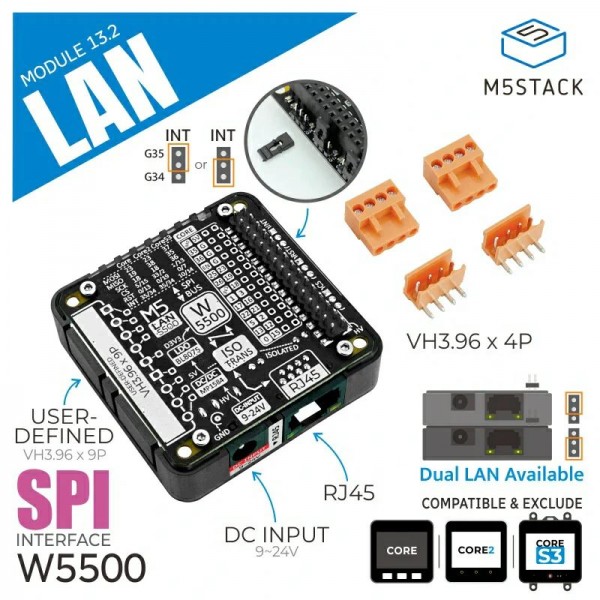

The M5Stack LAN Module offers the possibility to provide an M5Core with an Ethernet connection. The module can be powered via the pin headers or via a DC jack. In the second case, the M5Core is also supplied with power. The module also includes two sets of removable screw terminals. By soldering wires, these can be connected to arbitrary pins of the M5Core.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack LAN Module 13.2 - W5500 Ethernet - for M5Core

This product has 0 review(s) in total.

Tags: M5Stack LAN Module 13.2 - W5500 Ethernet - for M5Core , M5STACK-M136 , Modules

Specifications

General
Brand M5Stack
Manufacturer model/SKU M136
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
General physical appearance
Main color Black
Weight [g] 22
Dimension X [mm] 54
Dimension Y [mm] 54
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
M5Stack Module
General electrical properties
Minimum supply voltage [V DC] 5
(via pin headers)
9
(via DC-jack)
Maximum supply voltage [V DC] 24
(via DC-jack)
5
(via pin headers)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Ethernet
Isolated communication Yes
Ethernet chip/SoC W5500
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
DC-jack 5.5/2.1mm female
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
RJ45 female
Package contents

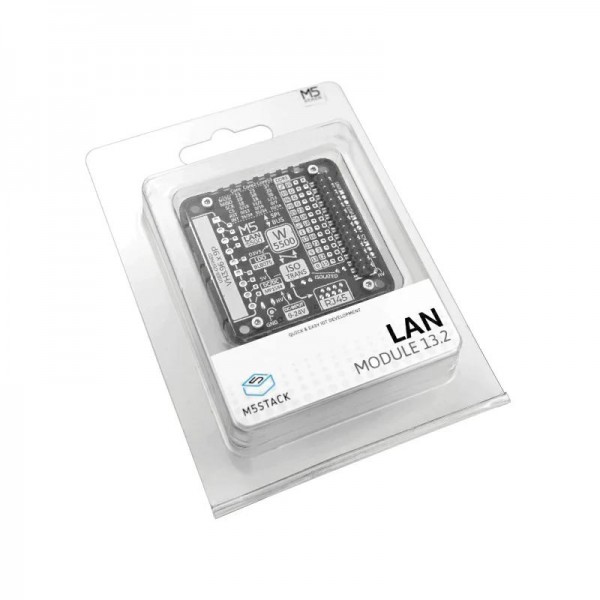

Package contents 1x LAN module 13.2
2x Detachable block male (HT3.96)
2x Detachable screw terminal female (HT3.96)
