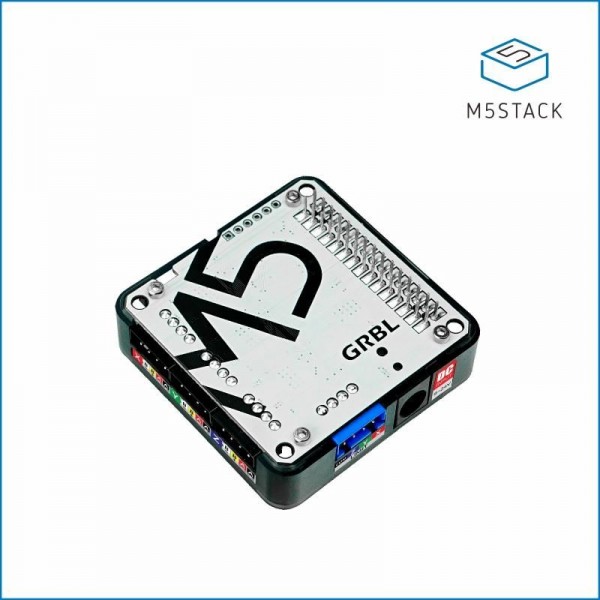

M5Stack GRBL Module 13.2 - Stepper Motor Driver - 3x DRV8825 - for M5Core

This is a stepper motor module for the M5Core with three stepper motor drivers and the possibility to connect three end stops.

There are also additional modules available such as a 5V fan module to cool down the drivers.

Specifications:

• Supply voltage: 9-24V DC (via 5.5mm DC jack)

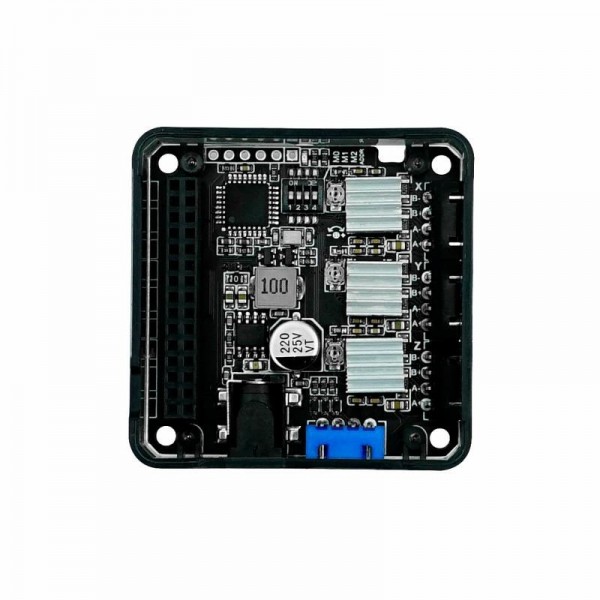

• Stepper motor driver: DRV8825 (3x, X, Y, Z)
  • Maximum current: 1.5A per phase (adjustable with potentiometers)
  • Microstep support: Full-step, half-step, 1/4-step, 1/8-step, 1/16-step and 1/32-step (adjustable with DIP switch)
• Communication: I2C
  • I2C address: 0x70 or 0x71 (adjustable with DIP switch)

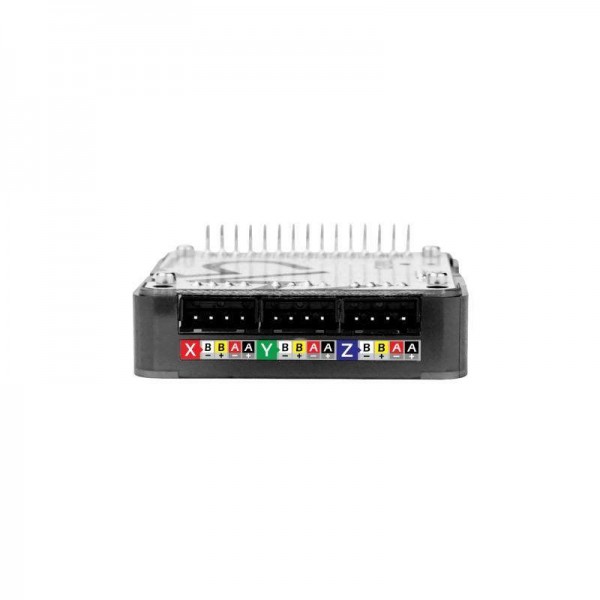

• Connectors (stepper motors and end plugs): JST-XH 4p male
• Dimensions: 54.2 x 54.2 x 13.2mm

Package contents:

• 1x M5Stack GRBL Module 13.2

See the following page for more information: M5Stack GRBL Module 13.2.
