M5Stack GoPlus2 - DC Motor and Servo Driver Module - for M5Core

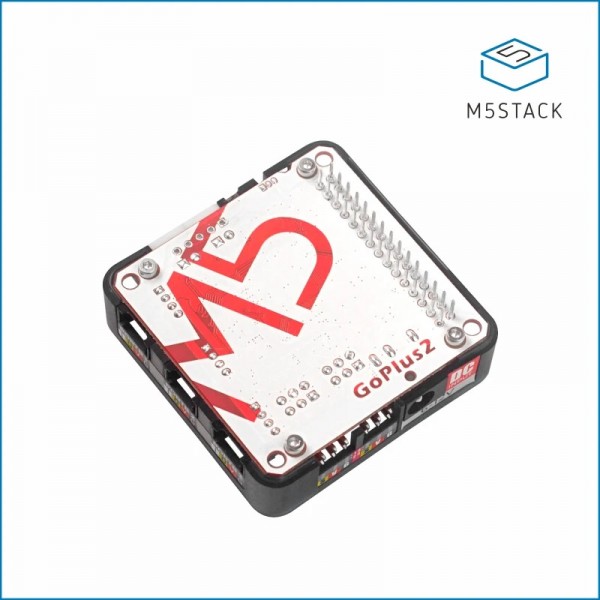

The GoPlus2 from M5Stack is a DC motor and servo driver that is controlled by an STM32F030 chip. This module contains 2 DC motor ports, and 4 servo motor ports. In addition, the GoPlus2 also has 3 Grove-B (GPIO) ports, and it is possible to receive and send IR signals. By means of the built-in Li-Po battery you can also make the module mobile.

Specifications:

• Input voltage: 6-12VDC
• Motor and servo voltage: 5V
• Main chip: STM32F030C8T6
• Motor control: DRV8833 H-Bridge
• Communication: I2C
• I2C address: 0x38
• Connection ports:

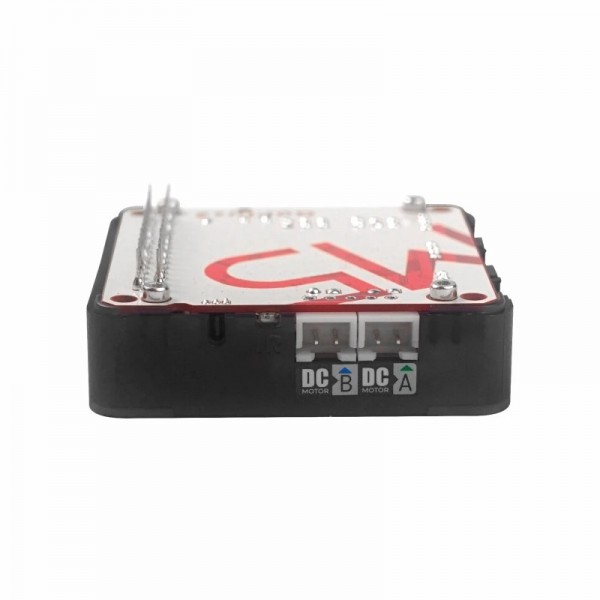

  • 2x DC motor

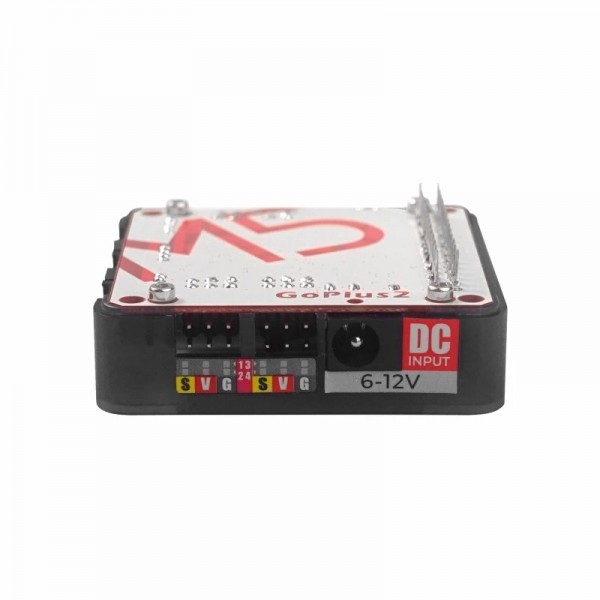

  • 4x Servo

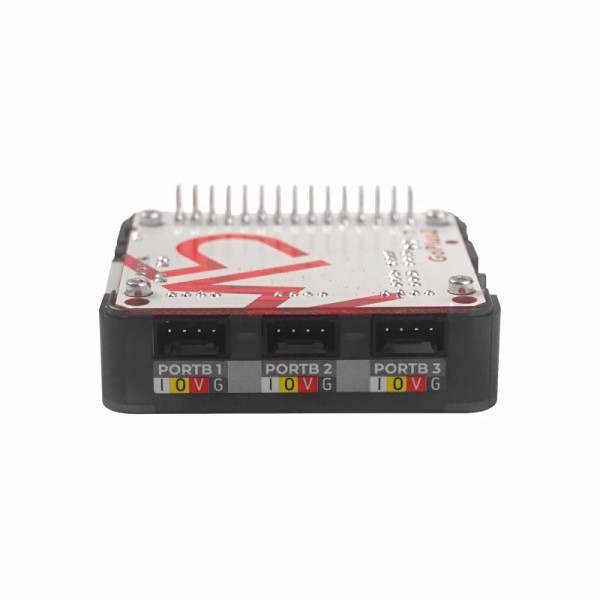

  • 3x Grove-B (GPIO)
• Built-in IR transmitter and receiver

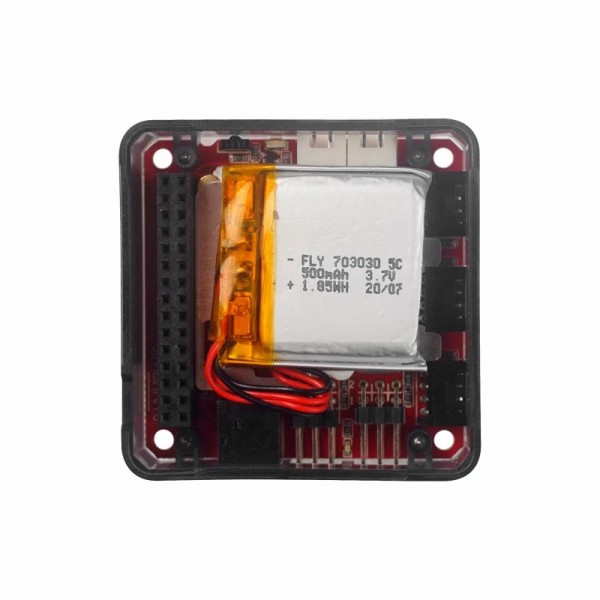

• Built-in 500mAh battery (rechargeable via the USB-C port of an M5Core)
• Dimensions: 54 x 54 x 13mm

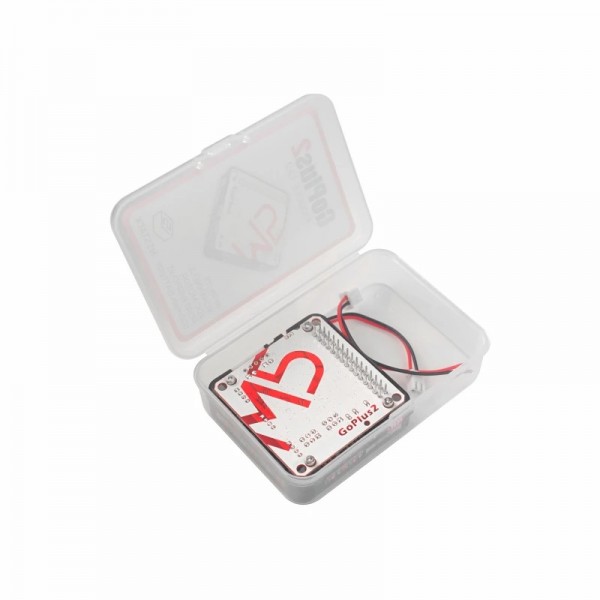

Package contents:

• 1x M5Stack GoPlus2 Module
• 2x DC Motor cable

See the following page for more information: M5Stack-GoPlus2
