M5Stack Fan Module V1.1 - for M5Core

M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
New
M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
M5Stack Fan Module V1.1 - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007075
€15.50
Ex Tax: €12.81

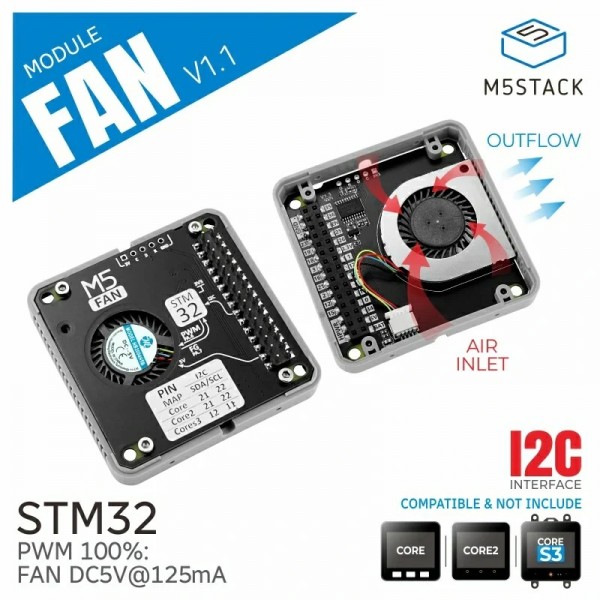

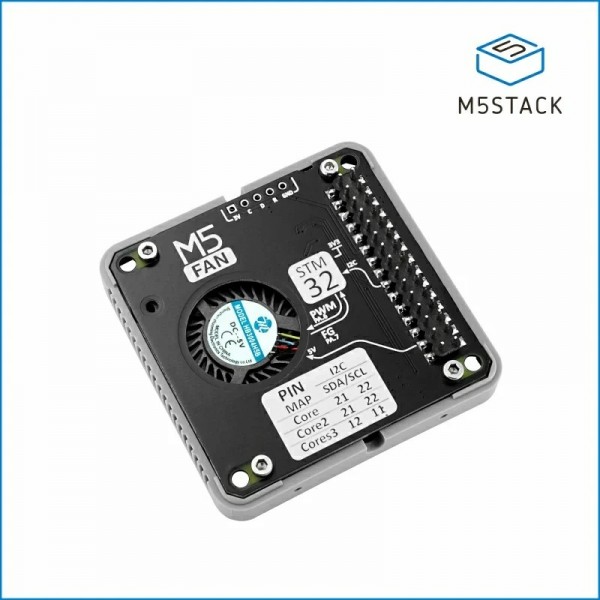

A fan module for the M5Core series.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Fan Module V1.1 - for M5Core

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU M013-V11
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Motor driver
Fan
General physical appearance
Main color Gray/silver
Weight [g] 15
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 6.6
(stack height)
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
M5Stack Module
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 125
(max speed)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x18
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 10
Motor driver
Type Driver
Direction of rotation Unidirectional
Actuator
Actuator type Brushless DC motor
Maximum speed [RPM] 11500
(±10%)
Fan
Air flow [m³/h] 2.1
Orientation Centrifugal
Indication maximum noise production [dBA] 70.6
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Package contents
Package contents 1x Fan module
