Name: M5Stack ESP32-H2 Thread-Zigbee Gateway Module - M5STACK-M141
Brand: M5Stack
SKU: 006998
Price: 9 EUR
Availability: InStock

M5Stack ESP32-H2 Thread-Zigbee Gateway Module

New

M5Stack ESP32-H2 Thread-Zigbee Gateway Module

Availability: Directly available from warehouse in Eindhoven
SKU: 006998

Based on 0 review(s) - Write a review

€9.00

Ex Tax: €7.44

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

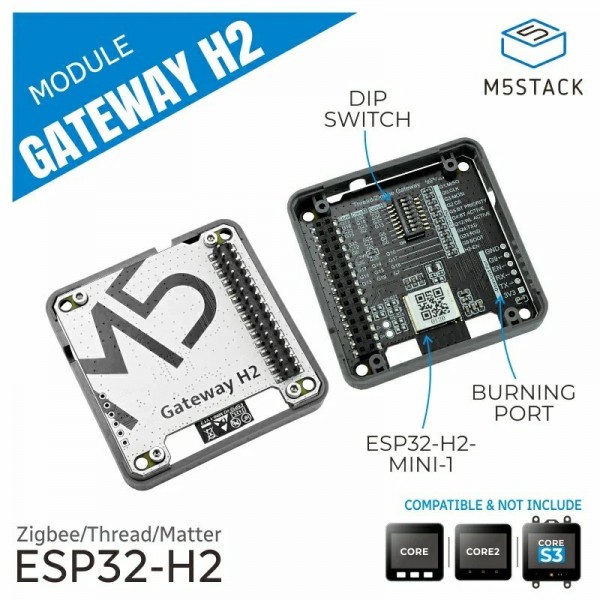

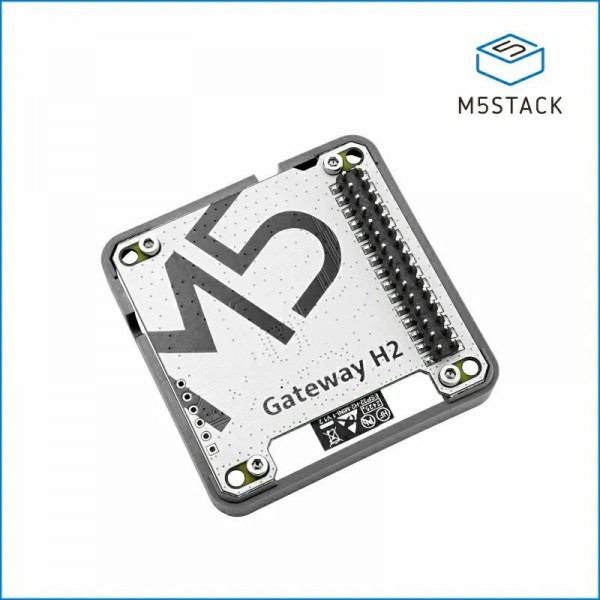

This gateway module from M5Stack is compatible with the M5Core series and is based on the EPS32-H2. The M5Stack gateway module supports Zigbee, Thread and Matter (via Thread).

Note: The module does not have available built-in USB to serial converter, we recommend the following module to program the module: M5Stack ESP32 Downloader Kit

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack ESP32-H2 Thread-Zigbee Gateway Module

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack ESP32-H2 Thread-Zigbee Gateway Module , M5STACK-M141 , Modules

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	M141
Model revision	V0.4
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Microcontroller
General physical appearance
Main color	Gray/silver
Weight [g]	12
Dimension X [mm]	54
Dimension Y [mm]	54
Dimension Z [mm]	6.6 (stacking height)
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general) M5Stack Module
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	96
Number of cores	1
Internal memory
SRAM [KB]	320
PSRAM [MB]	0
Flash memory [MB]	2
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC
Number of IO-pins	10
Maximum available hardware PWM channels	9
Maximum available analog input pins (ADC)	50
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	None
Wireless communication
Interface(s)	Bluetooth Zigbee Thread
Bluetooth chip/SoC	ESP32-H2
Bluetooth version	5.3
Supported Bluetooth standard(s)	LE
Zigbee chip/SoC	ESP32-H2
Zigbee frequency [GHz]	2.4
Thread chip/SoC	ESP32-H2
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) Through hole solder pin(s) (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Zigbee/Thread antenna connector	Built-in antenna
Package contents
Package contents	1x ESP32-H2 Thread-Zigbee Gateway Module
