M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core

M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
2-4 Weeks
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core
  • Availability: 2-4 Weeks
  • SKU: 007568
Based on 0 review(s) - Write a review
€14.00
Ex Tax: €11.57
Add to Cart
Add to wishlist

An 868MHz RF module from M5Stack for the M5Core.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core

This product has 0 review(s) in total.

Tags: M5Core , Modules , M5Stack CC1101 Module RF Transceiver - 868MHz - for M5Core , 007568 , M5Stack , M146 , SPI , RF (general)

Specifications

General
Brand M5Stack
Manufacturer model/SKU M146
General physical appearance
Main color Gray/silver
Weight [g] 16
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 6.6
(stacking height)
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Wireless communication
Interface(s) RF (general)
Maximum communication distance [m] 430
RF chip/SoC CC1101
RF receiver/transmitter Receiver
Transmitter
RF frequency [MHz] 868
915
Maximum RF transfer speed [kb/s] 500
Sensitivity RF receiver [dBm] -109
Maximum RF transmit power [mW] 10
RF modulation ASK
MSK
OOK
GFSK
2-FSK
4-FSK
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
RF antenna connector SMA female
Package contents

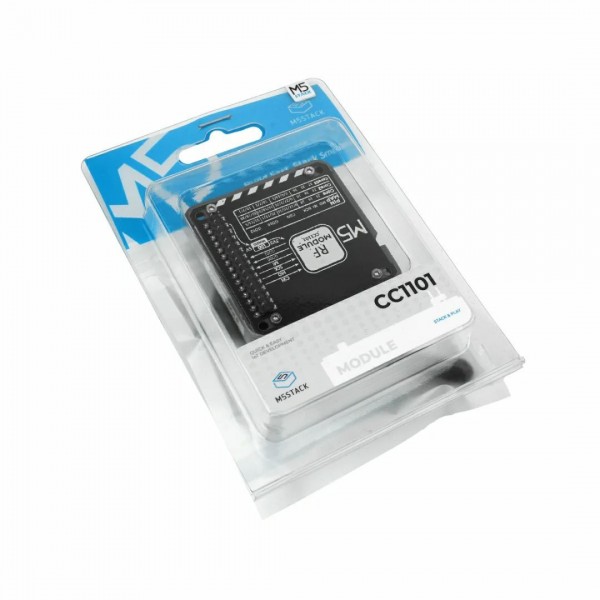

Package contents 1x CC1101 Module
1x SMA antenna
