Name: M5Stack 4-Channel Relay 13.2 Module V1.1 - M5STACK-M121-V11
Brand: M5Stack
SKU: 005642
Price: 14 EUR
Availability: InStock

M5Stack 4-Channel Relay 13.2 Module V1.1

Availability: Directly available from warehouse in Eindhoven
SKU: 005642

Based on 0 review(s) - Write a review

€14.00

Ex Tax: €11.57

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

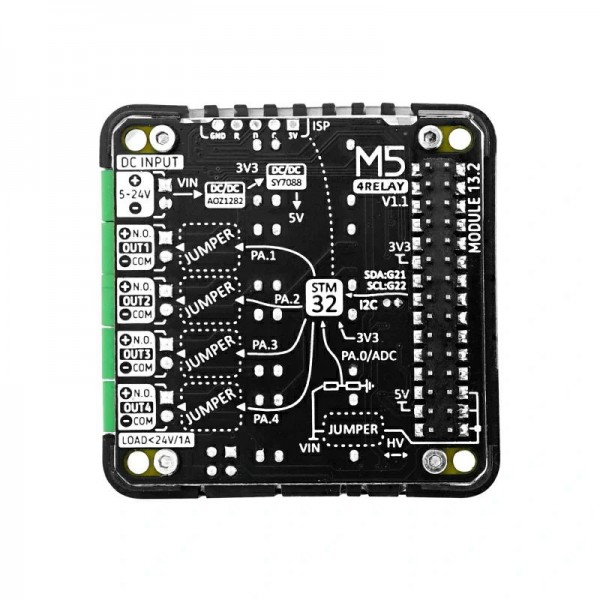

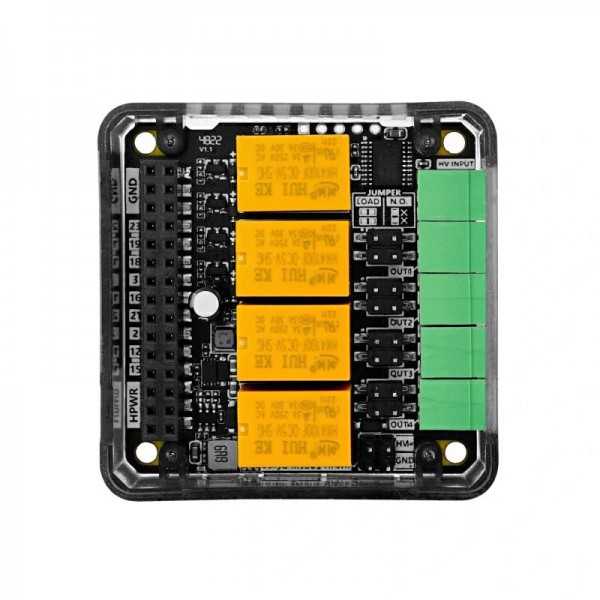

A relay module from M5Stack with 4 channels. The relays are controlled via an STM32F030 microcontroller, which in turn can be controlled by an M5Core via I2C.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack 4-Channel Relay 13.2 Module V1.1

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack 4-Channel Relay 13.2 Module V1.1 , M5STACK-M121-V11 , Modules

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	M121-V11
Model revision	V1.1
Features	Electric switch
General physical appearance
Main color	Black
Weight [g]	34
Dimension X [mm]	54
Dimension Y [mm]	54
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) M5Stack Module
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	24 (via DC input)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x26
Adjustable I2C address	Yes (via I2C)
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	4
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	50 (if jumper is on NO setting)
Maximum switching voltage [V DC]	24
Switching voltage equal to supply voltage	Adjustable (via jumpers)
Maximum switching current per channel (resistive load) [A]	1
Maximum switching current (channels combined) [A]	1
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) Detachable block male (KF2EDGR-2.54)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)

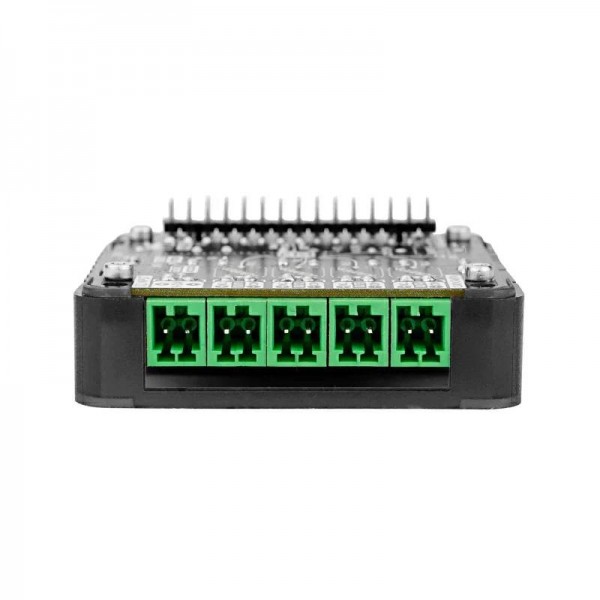

Switch connector(s)	Detachable block male (KF2EDGR-2.54)

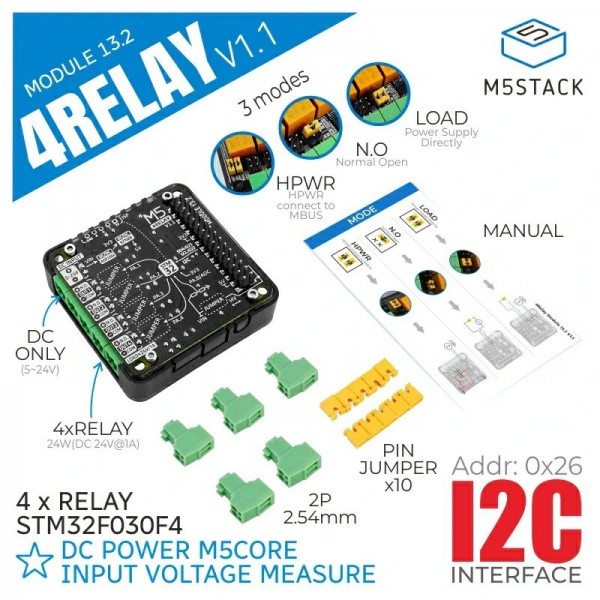

Package contents
Package contents	1x Relay Module 5x Detachable screw terminal 10x Jumper 2p
