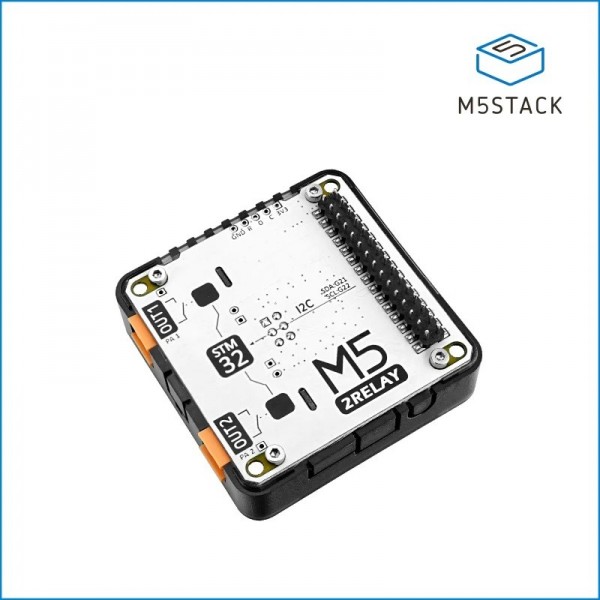

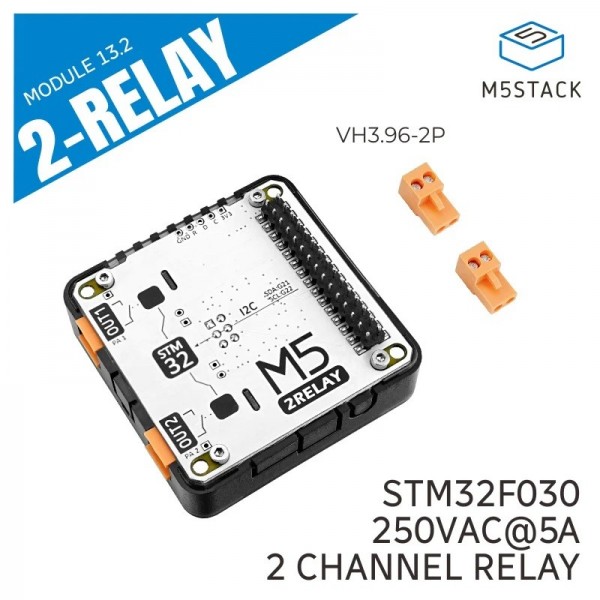

M5Stack 2-Channel AC Relay Module 13.2 - for M5Core

M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
M5Stack 2-Channel AC Relay Module 13.2 - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004894
Based on 0 review(s) - Write a review
€14.50
Ex Tax: €11.98
Add to Cart
Add to wishlist

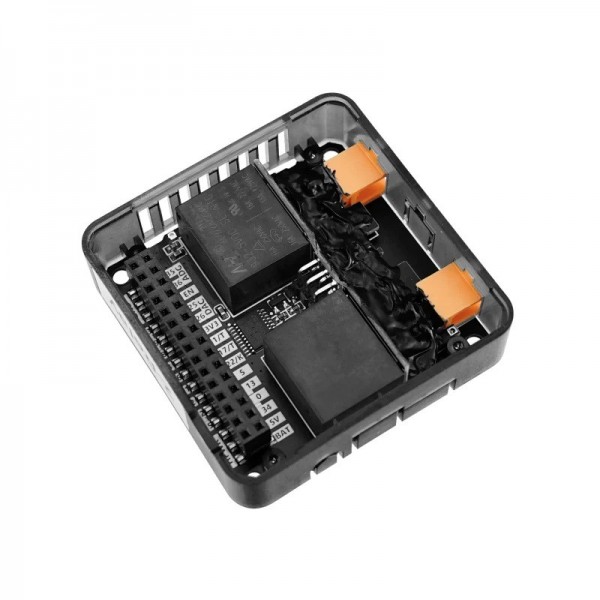

A relay module from M5Stack that is suitable for switching mains voltage.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack 2-Channel AC Relay Module 13.2 - for M5Core

This product has 0 review(s) in total.

Tags: M5Core , Modules , M5Stack 2-Channel AC Relay Module 13.2 - for M5Core , 004894 , M5Stack , M124 , Electric switch , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU M124
Features Electric switch
General physical appearance
Main color Black
Weight [g] 33
Dimension X [mm] 54
Dimension Y [mm] 54
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3.0
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x26
Adjustable I2C address Yes
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 2
Contact(s) NO (normally open)
Lifespan 100000
Maximum switching voltage [V AC] 250
Maximum switching voltage [V DC] 28
Switching voltage equal to supply voltage No
Maximum switch resistance [Ω] 0.1
Maximum switching current per channel (resistive load) [A] 5
Current per engaged relay [mA] 40
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Switch connector(s) Detachable block male (HT3.96)
Package contents
Package contents 1x Relay module
2x Detachable screw terminal
