M5Stack Universal IOT Experiment Kit

This is an extensive M5Stack experiment kit with many different modules.

This kit includes the M5Core. Furthermore, there are motors, sensors and many more modules all bundled on a large printed circuit board.
With the included DuPont cables you can easily experiment with the different modules. Each module has its own power switch.

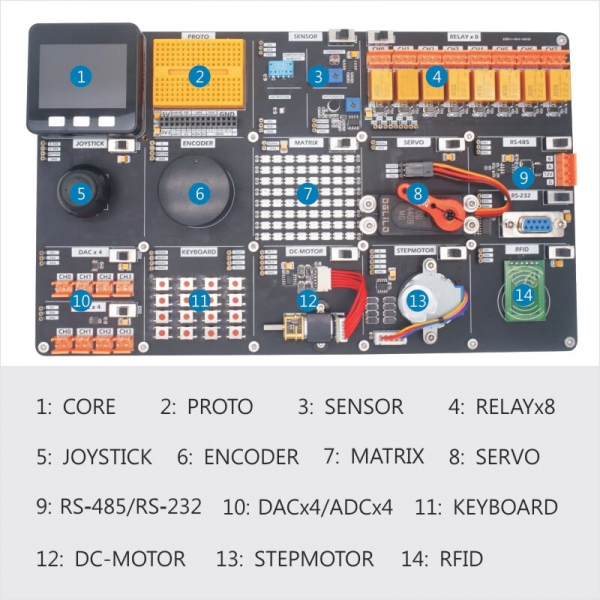

Included modules:

• ESP32 M5Core
• M5 Bus Protoboard
• Sensors:
  • Temperature, humidity, air pressure, light intensity and sound
• 8 Channel relay
• Joystick
• Rotary encoder
• 8x8 LED matrix
• Servo motor
• RS485/RS232 connection
• 4x DAC and 4x ADC connections
• 4x4 Keyboard matrix
• DC motor
• Stepper motor
• RFID reader

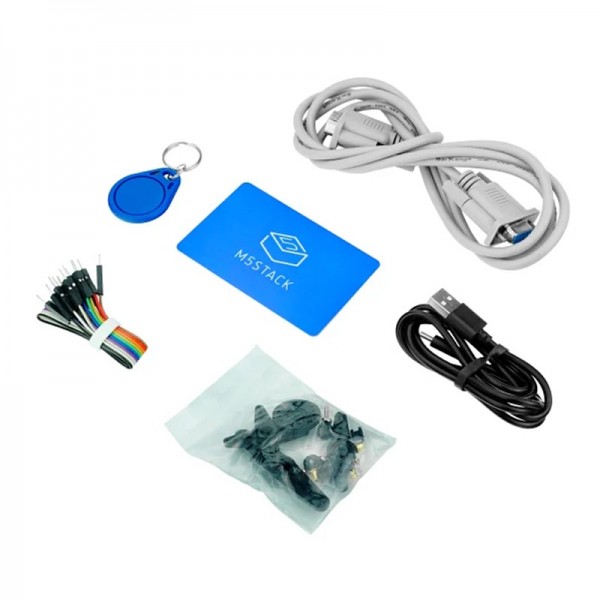

Package contents:

• 1x M5Stack Experiment Kit
• 1x RS232 cable
• 1x S50 RFID Key tag
• 1x S50 RFID Card
• 1x DuPont cable set

Note: No power supply is included, this can be purchased separately: 12V 2A Adapter with DC jack

For more information about the M5Core, individual modules and the experiment kit, see: Application Demo Board
