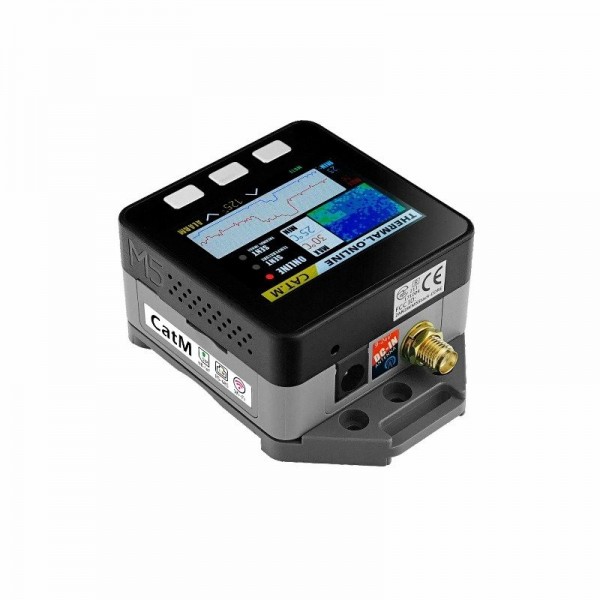

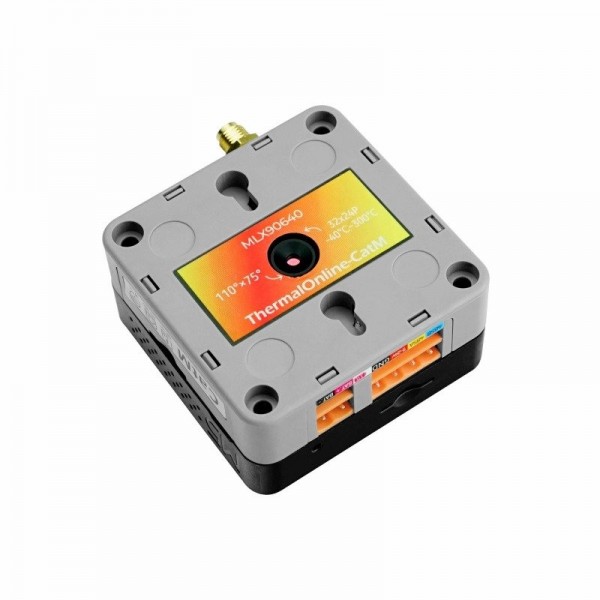

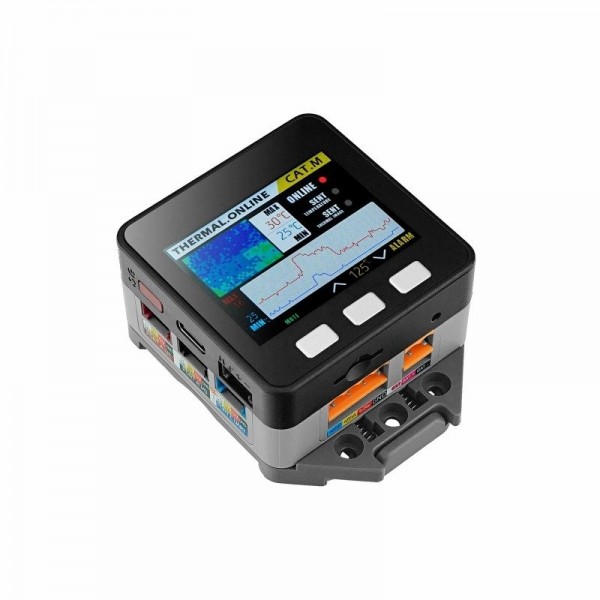

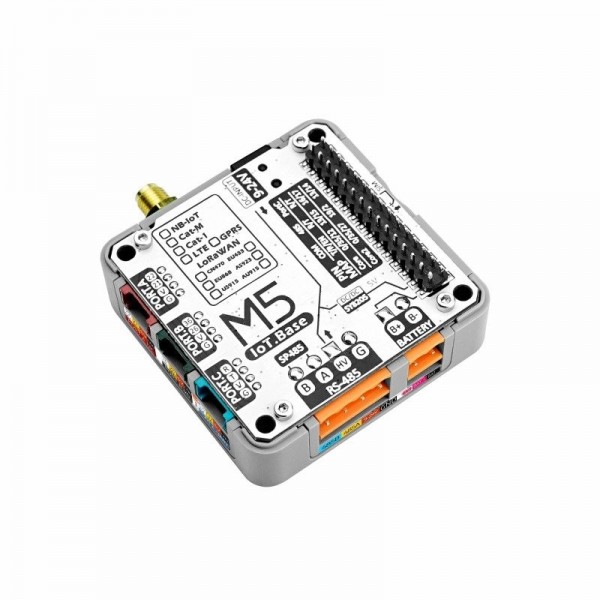

M5Stack ThermalOnline CatM - Thermal Camera - MLX90640 - SIM7080G
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005158
€162.00
Ex Tax: €133.88
The M5Stack Thermalonline Cat-M is an advanced industrial solution designed for remote temperature monitoring thanks to the MLX90640 IR thermal sensor. Data can be read from outside by the built-in telecom module.
Note: There is no power supply included.
See the following page for more information: Wiki
Reviews Over M5Stack ThermalOnline CatM - Thermal Camera - MLX90640 - SIM7080G
This product has 0 review(s) in total.
Report this review.
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K119 |
| Features | Battery charger Display Camera Microcontroller SD-card adapter Temperature sensor Audio amplifier Enclosure Speaker/buzzer Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 83 (including antenna) |
| Dimension X [mm] | 81 |
| Dimension Y [mm] | 54 |
| Dimension Z [mm] | 33 |
| Mounting options | Mounting hole(s) DIN-rail (EN 60715) Clamp |
| Form factor | Module (general) M5Stack Base |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (via USB-C) 9 (via DC jack) |
| Maximum supply voltage [V DC] | 24 (via DC jack) 5 (via USB-C) |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI UART PWM ADC DAC GPIO RS485 USB CDC |
| Isolated communication | No |
| Number of IO-pins | 6 |
| Maximum available hardware PWM channels | 6 |
| Maximum available analog input pins (ADC) | 2 |
| Maximum available analog output pins (DAC) | 1 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 1 |
| USB to serial converter | CH9102F |
| Number of RS485 channels | 1 |
| Supported SD card size | Micro SD |
| Supported SIM card size | Micro-SIM |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth Telecom |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| Telecom chip/SoC | SIM7080G |
| Supported telecom networks | LTE CAT M1 NB-IoT (LTE CAT NB1) NB-IoT (LTE CAT NB2) |
| Supported NB-IoT bands | B1 B2 B3 B4 B5 B8 B12 B13 B18 B19 B20 B25 B26 B28 B66 B71 B85 |
| Supported CAT M bands | B1 B2 B3 B4 B5 B8 B12 B13 B14 B18 B19 B20 B25 B26 B28 B66 B85 B27 |
| Display | |
| Type | IPS |
| Driver | ILI9342C |
| Screen diagonal [inch] | 2 |
| Number of pixels long side | 320 |
| Number of pixels short side | 240 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Scanner/camera | |
| Type | Thermal camera |
| Sensor(chip) | MLX90640 |
| Lense type | Normal |
| Number of pixels long side | 32 |
| Number of pixels short side | 24 |
| Maximum viewing angle (diagonal) [°] | 133 |
| Temperature sensor | |
| Sensor (chip) | MLX90640 |
| Minimum measuring range [°C] | -40 |
| Maximum measuring range [°C] | 300 |
| Audio amplifier | |
| Amplifier chip | NS4150 |
| Maximum power per (normal) channel [W] | 1.0 |
| Battery circuit | |
| Battery charger chip/SoC | IP5306 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 2100 |
| Adjustable charging current | Yes (via I2C) |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female DC-jack 5.5/2.1mm female |
| IO-connector(s) | HY2.0 (Grove) male USB-C female Detachable block male (HT3.96) |
| Battery connector(s) | Detachable block male (HT3.96) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Telecom antenna connector | SMA female |
| Package contents | |
| Package contents | 1x ThermalOnline Cat-M 1x Telecom antenna 1x Detachable screw terminal (HT3.96) 2p 1x Detachable screw terminal (HT3.96) 4p 1x Hex key |
