M5Stack M5CoreS3 - ESP32-S3 IoT Development Kit
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005063
€70.00
Ex Tax: €57.85

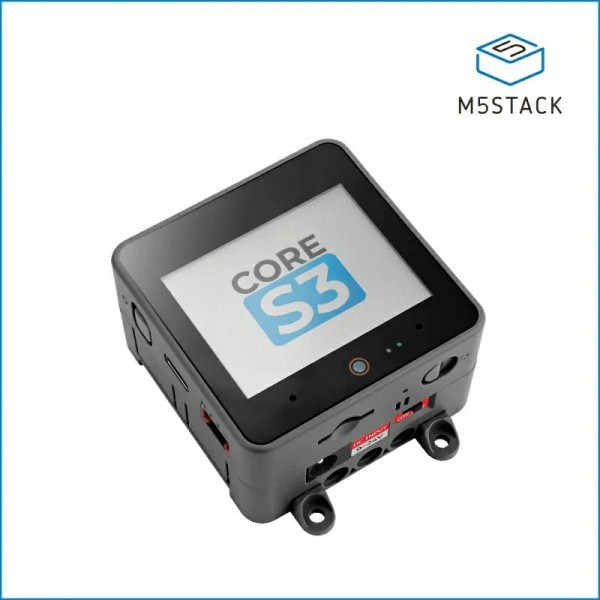

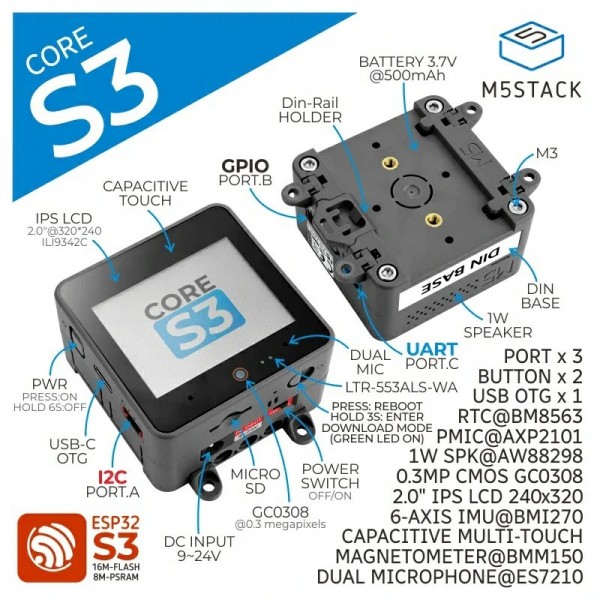

M5Stack M5CoreS3 is a development kit based on an ESP32-S3 chipset. It has a built-in screen with touchscreen, Wi-Fi, Bluetooth, battery and numerous sensors. The board has a USB-C connection with which it can be programmed and/or powered. UIFlow, MicroPython and Arduino programming languages are supported.
See the following page for more information: Wiki
Report this review.
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K128 |
| Features | Battery charger Display Camera Microcontroller Touchscreen SD-card adapter Audio amplifier Battery protection circuit RTC Microphone Battery Speaker/buzzer Acceleration sensor Magnetometer Gyroscope |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 79 |
| Dimension X [mm] | 54 |
| Dimension Y [mm] | 54 |
| Dimension Z [mm] | 32 |

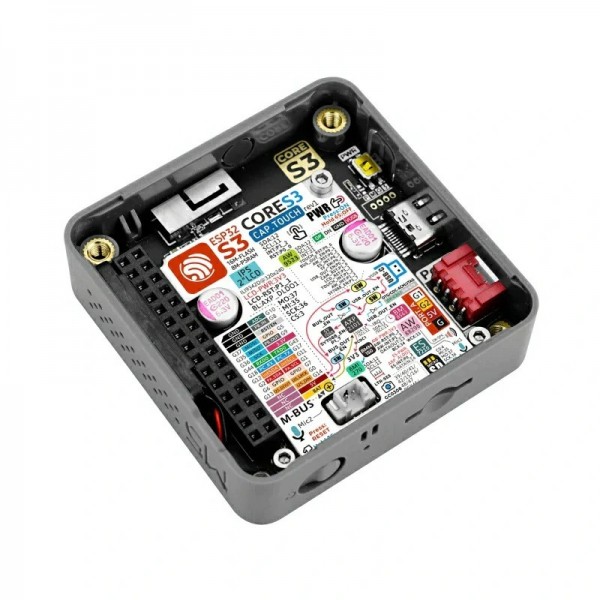

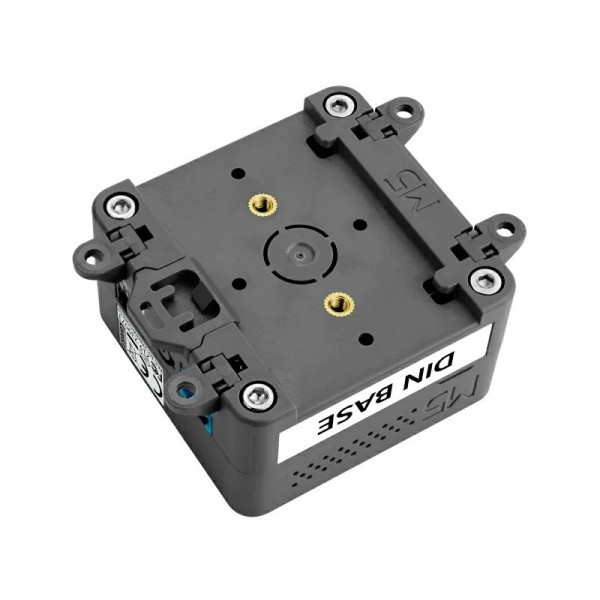

| Mounting options | Mounting hole(s) Screw thread DIN-rail (EN 60715) LEGO (compatible) holes |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (via USB-C) 9 (via DC-jack) |
| Maximum supply voltage [V DC] | 24 (via USB-C) 24 (via DC-jack) |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 6 (only Grove ports, expandable with M5Stack modules) |
| Maximum available hardware PWM channels | 6 |
| Maximum available analog input pins (ADC) | 4 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 1 |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | IPS |
| Driver | ILI9342C |
| Screen diagonal [inch] | 2 |
| Number of pixels long side | 320 |
| Number of pixels short side | 240 |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | FT6336U |
| Touch type | Capacitive |
| Multi-touch support | No |
| Scanner/camera | |
| Type | Camera |
| Sensor(chip) | GC0308 |
| Lense type | Normal |
| Number of pixels long side | 640 |
| Number of pixels short side | 480 |
| Maximum frame rate [Hz] | 30 |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Magnetometer | |
| Sensor (chip) | BMM150 |
| Type | Compass |
| Degrees of freedom (DOF) | 3 |
| Minimum measuring range [mT] | 0.0 |
| Maximum measuring range [mT] | 1.3 (x-axis, y-axis) 2.5 (z-axis) |
| Smallest resolution [mT] | 0.0003 |
| Sound sensor | |
| Sensor (chip(s)) | ES7210 |
| Type | Microphone |
| RTC | |
| RTC chip | BM8563 |
| Back-up battery/capacitor | None |
| Audio amplifier | |
| Amplifier chip | AW88298 |
| Battery circuit | |
| Battery charger chip/SoC | AXP2101 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 1000 |
| Adjustable charging current | Yes (via I2C) |
| Protection circuit | Yes (note: in the Li-Po battery, not in the module itself) |
| Safety features | Short circuit Overvoltage Overcurrent Undervoltage |
| Battery | |
| Chemistry | Li-Po |
| Rechargeable | Yes |
| Capacity [mAh] | 500 |
| Connectors | |
| Power supply connector(s) | USB-C female DC-jack 5.5/2.1mm female |
| IO-connector(s) | HY2.0 (Grove) male USB-C female |
| Battery connector(s) | Molex Picoblade (compatible) male (to extend the internal battery) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x M5CoreS3 (with DinBase) 1x DIN rail clip 4x Mounting hole clip 1x Hex key M3 |
