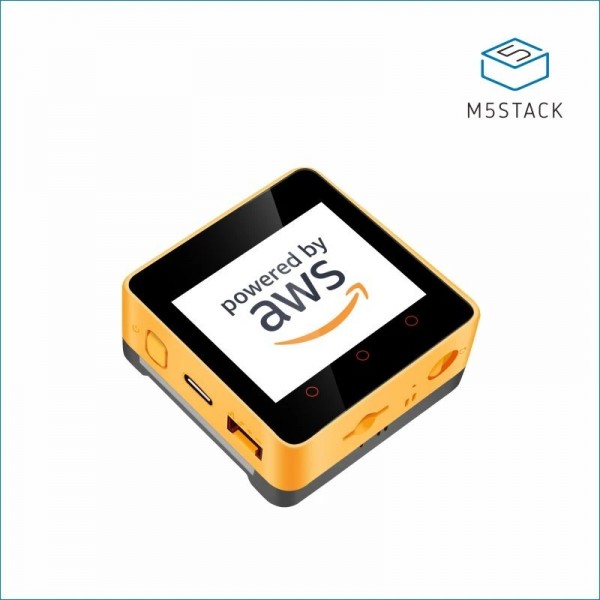

M5Stack M5Core2 AWS IoT ESP32 Development Kit

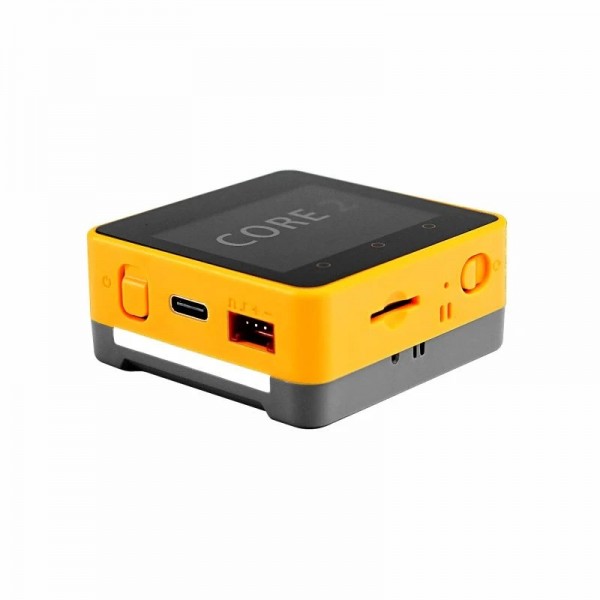

The M5Stack M5Core2 AWS is a development kit based on an ESP32 chipset. It has, among other things, a built-in screen with touchscreen, WiFi, Bluetooth, battery and numerous sensors. This version also has an extra built-in encryption chip for a more secure connection with Amazon Web Services (AWS). The module has a USB-C connection with which it can be programmed and/or powered. The programming languages UIFlow, MicroPython and Arduino are supported.

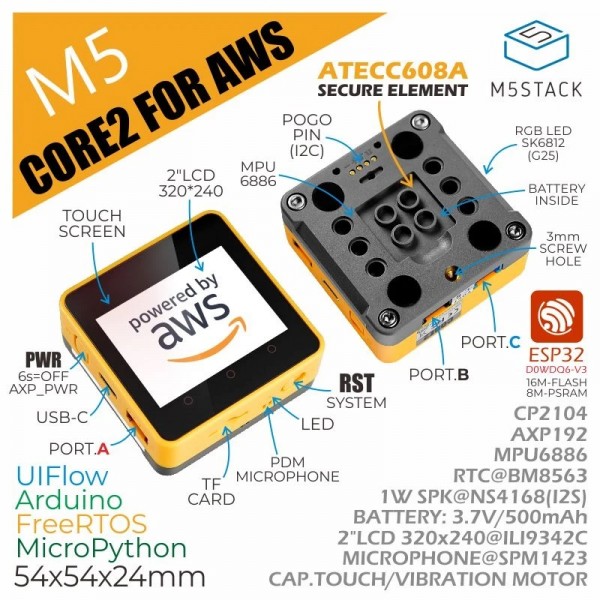

Specifications:

• Supply voltage: 5V DC (via USB-C)
• GPIO voltage: 3.3V
• Output voltage: 5V DC (via 5V pins)
• Chipset: ESP32 D0WDQ6-V3 (240MHz dual core processor)
  • Flash memory: 16MB
  • SRAM: 520KB
  • PSRAM: 8MB
  • Built-in WiFi
  • Built-in Bluetooth
• USB to serial converter: CP2104
• Hardware encryption chip: ATECC608
• Built-in display:
  • Screen diagonal: 2 inch
  • Resolution: 320x240
  • Type: TFT
  • Driver: ILI9342C
  • Touchscreen: Capacitive
  • Touchscreen driver: FT6336U
• Built-in RTC: BM8563
• 10x Built-in individually controllable LEDs: SK6812
• Built-in speaker: 1W-0928
• Built-in microphone: SPM1423
• Built-in vibration motor
• Built-in IMU: MPU6886
  • 3-Axis Gyroscope
  • 3-Axis accelerometer
• Built-in microSD card adapter: max 16GB
• 3x Grove interface:
  • 1x I2C
  • 1x UART
  • 1x GPIO
• Built-in battery: 500mAh
• Dimensions: 54 x 54 x 24mm
• Casing: Orange plastic

CP2104 drivers:

• Windows, Mac OSX, Linux and more

Package contents:

• 1x M5Stack M5Core2 AWS
• 1x USB-C cable
• 1x Allen key

See the following page for more information: M5Core2 AWS
