M5Stack PLC - Prototype Board Module

This is an prototype module for the M5Core with a blank circuit board, power input and mounting options for wall mounting or DIN rails.

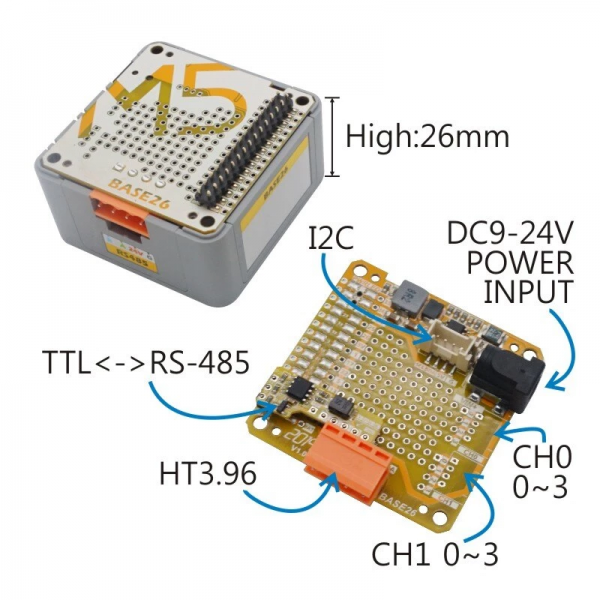

This circuit board is specifically intended for the M5Stack Core and can be installed as an extra layer on it. Furthermore, this prototype module also has a built-in TTL-to-RS485 converter board.

Specifications:

• Input voltage: 9-24VDC

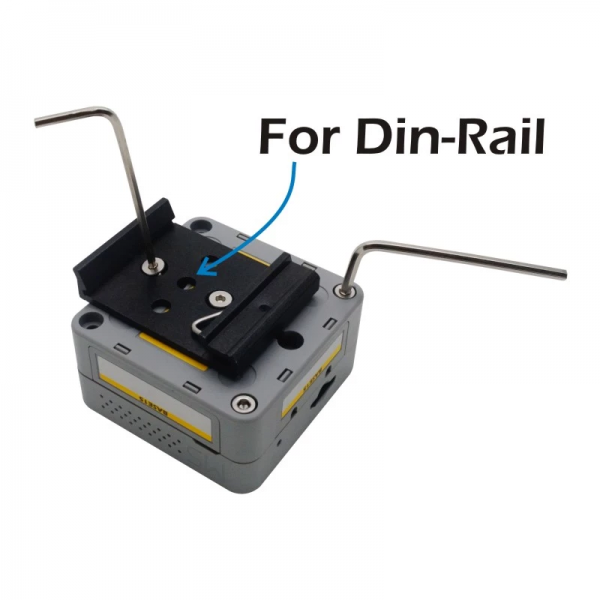

• Fixing holes for wall mounting and DIN rails
• Option for mounting with magnet
• Pin distance: 2.54 mm
• Color: Gray

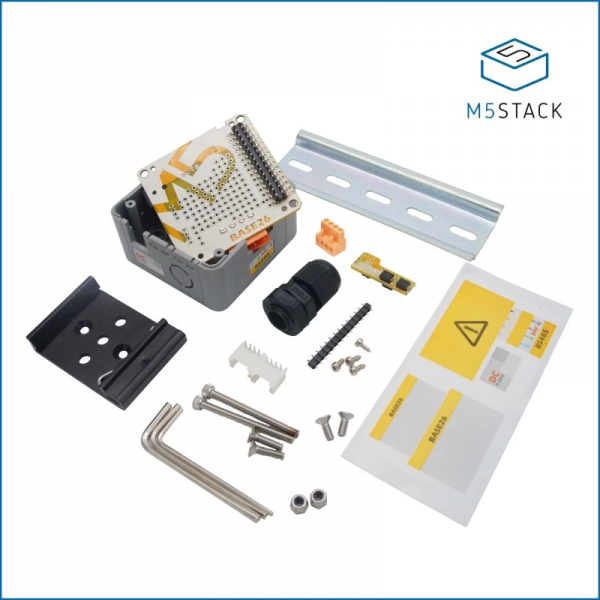

Package content:

• 1x Prototype board
• 1x PLC plastic housing
• 1x TTL-to-RS485 board
• 1x Slide Guide
• 1x Magnet
• 1x 6 Pin 3.96 Pitch Terminal
• 1x 4 Pin 3.96 Pitch Terminal
• 1x connection for DIN rail
• 10x insulated cable connectors
• 3x Allen key
• 7x screws (3 types: M2x4, M3x6, M3x18)
• 1x Sticker

For more information and specifications, see the PLC module page.
