M5Stack M5GO Bottom3 - for M5CoreS3

M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
2-4 Weeks
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
M5Stack M5GO Bottom3 - for M5CoreS3
  • Availability: 2-4 Weeks
  • SKU: 005778
Based on 0 review(s) - Write a review
€11.50
Ex Tax: €9.50
Add to Cart
Add to wishlist

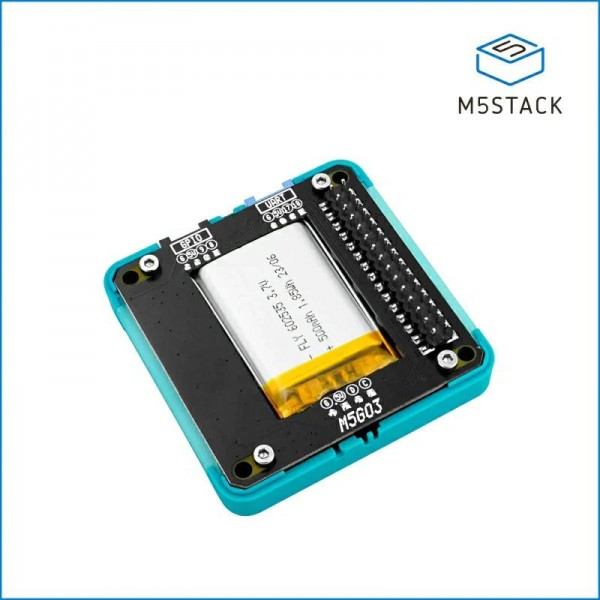

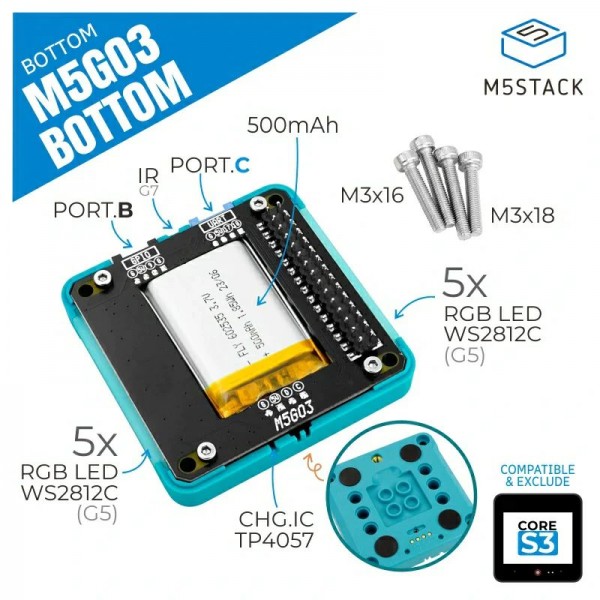

The M5Stack M5GO Bottom3 is an extension for the M5Core3. The M5GO Bottom3 includes a built-in battery, infrared transmitter, Grove expansion ports and two LED Bars. The module is easy to charge with a M5GO Charger Base (this is not included) or via the USB port of the M5Core3.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack M5GO Bottom3 - for M5CoreS3

This product has 0 review(s) in total.

Tags: M5Core , Base , M5Stack M5GO Bottom3 - for M5CoreS3 , 005778 , M5Stack , A014-D , Battery charger , Battery protection circuit , Enclosure , Battery , Digital LED(s) , Digital , IR

Specifications

General
Brand M5Stack
Manufacturer model/SKU A014-D
Features Battery
Enclosure
Digital LED(s)
Battery charger
Battery protection circuit
General physical appearance
Main color Blue
Weight [g] 31

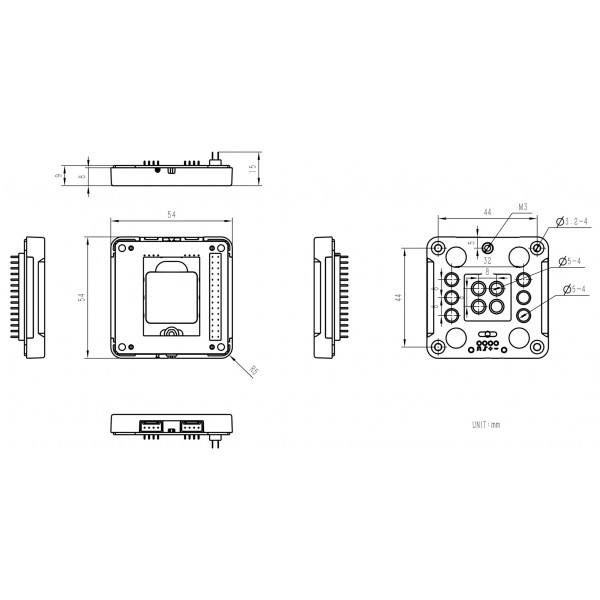

Dimension X [mm] 54
Dimension Y [mm] 54

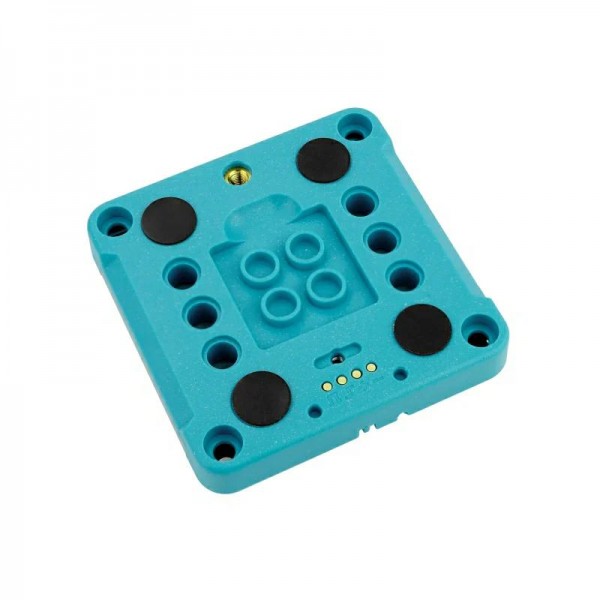

Mounting options Magnets
Pin headers
Mounting hole(s)
LEGO (compatible) holes
Diameter mounting hole(s) [mm] 3
Thread size M3
Form factor M5Stack Base
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
Communication
Hardware interface(s) Digital
Wireless communication
Interface(s) IR
IR receiver/transmitter Transmitter
Light source
Type LED
LED (driver) chip WS2812C
Light color RGB
Number of LEDs 10
Battery circuit
Battery charger chip/SoC TP4057
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 250
Adjustable charging current No
Protection circuit Yes
(note: built-in in Li-Po battery)
Safety features Overcurrent
Overvoltage
Undervoltage
Short circuit
Battery
Chemistry Li-Po
Rechargeable Yes
Typical capacity [mAh] 500
Maximum cell voltage [V] 4.2
Connectors
Power supply connector(s) Pogo pin(s)
Pin header male (2.54mm)

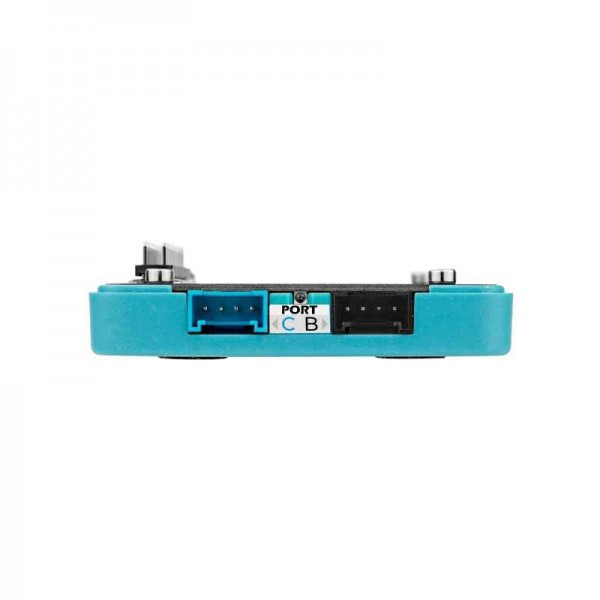

IO-connector(s) HY2.0 (Grove) male
Pin header male (2.54mm)
Battery connector(s) Pin header male (2.54mm)
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x M5GO Bottom3
2x M3x16mm bolt
2x M3x18mm bolt
