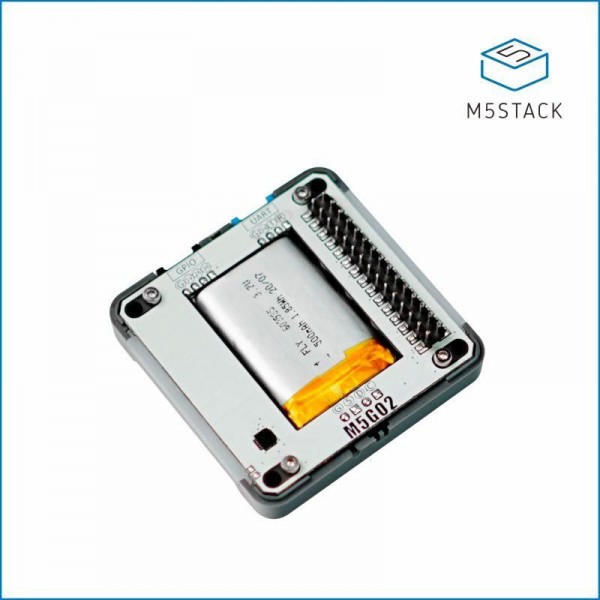

M5Stack M5GO Bottom2 - for M5Core2

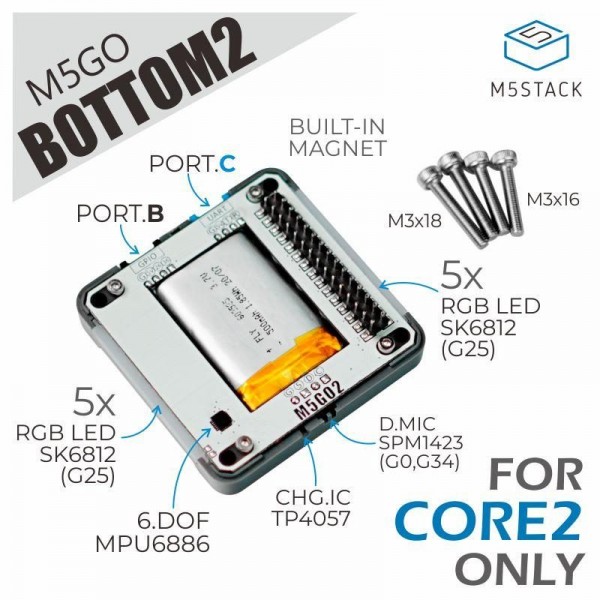

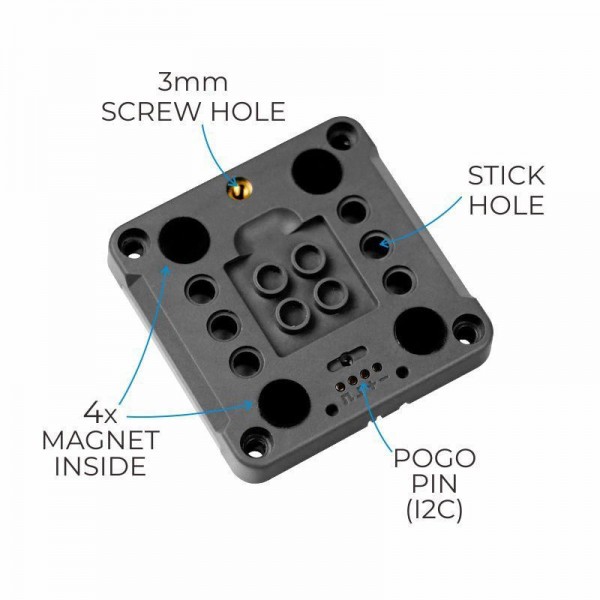

The M5Stack M5GO Bottom2 is an extension for the M5Core2. The M5GO Bottom2 includes a built-in battery, microphone, gyroscope/accelerometer, Grove expansion ports and an LED Bar. The module is easy to charge with a M5GO Charger Base (is not included) or via the USB port of the M5Core2. The module can be mounted via the built-in magnets or via the Lego™ compatible holes.

Specifications:

• Battery:
  • Type: Li-Po
  • Capacity: 500mAh
• Microphone:
  • Chip: SPM1423
  • Output signal: I2S
• Gyroscope/Accelerometer:
  • Chip: MPU6886
  • Number of axis: 6
  • Communication: I2C
  • I2C address: 0x68
• LED bar:
  • Number of LEDs: 10
  • LED chip: SK6812
  • Color: RGB
• Grove interface:
  • 1x Port B (GPIO)
  • 1x Port C (UART)
• POGO pins for I2C communication and charging
• Dimensions: 54.2 x 54.2 x 14.7mm

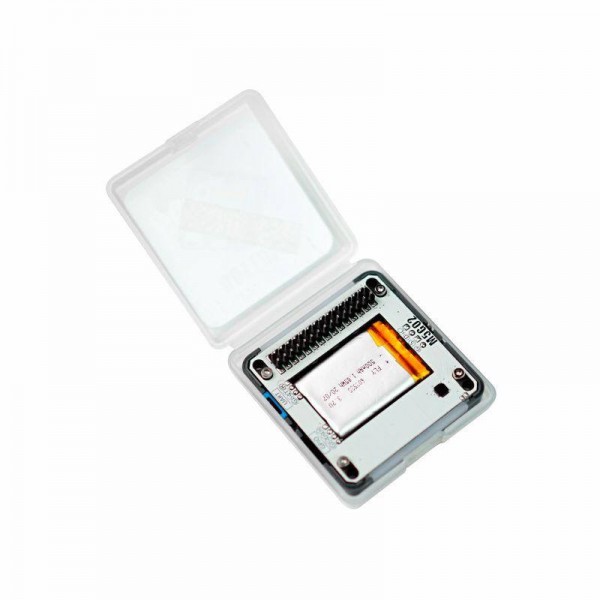

Package contents:

• 1x M5Stack M5GO Bottom2 (including 500mAh Li-Po battery)
• 2x M3x16mm bolt
• 2x M3x18mm bolt

See the following page for more information: M5Stack M5GO Bottom2.
