M5Stack DMX Base - for M5Core

M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
M5Stack DMX Base - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005325
€24.00
Ex Tax: €19.83

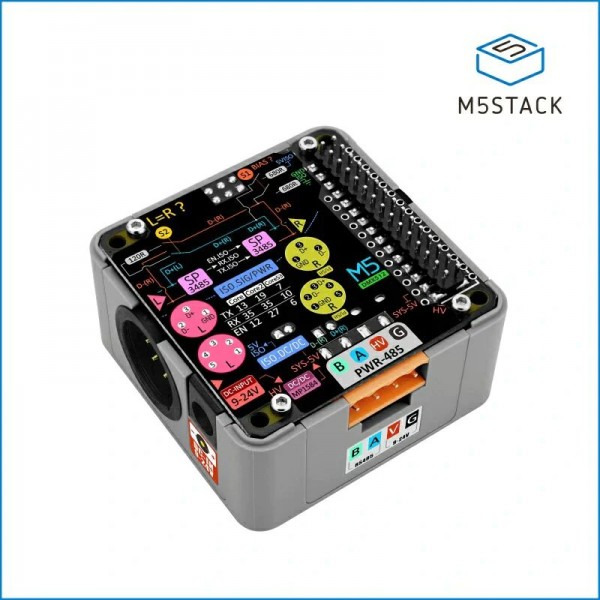

The DMX-Base is a module for the M5Core that makes it possible to control DMX devices.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack DMX Base - for M5Core

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU M128
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 48
(DMX base)
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 27

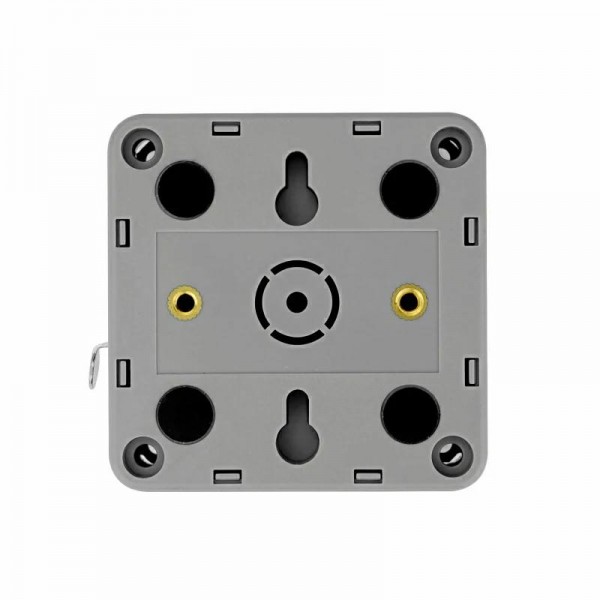

Mounting options LEGO (compatible) holes
Form factor M5Stack Base
General electrical properties
Minimum supply voltage [V DC] 5
(via 5V pin header)
9
(via DC-jack)
Maximum supply voltage [V DC] 24
(via DC-jack)
5
(via 5V pin header)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
RS485
Isolated communication Yes
RS485 chip SP3485
Protocol DMX-512
Connectors

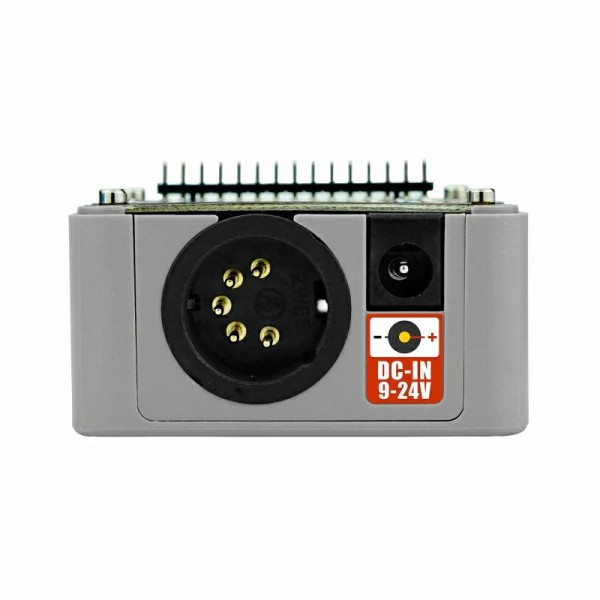

Power supply connector(s) DC-jack 5.5/2.5mm female
Pin header male (2.54mm)
IO-connector(s) XLR (compatible) male
XLR (compatible) female
Pin header male (2.54mm)
Detachable block male (HT3.96)
Through hole solder pin(s) (2.54mm)

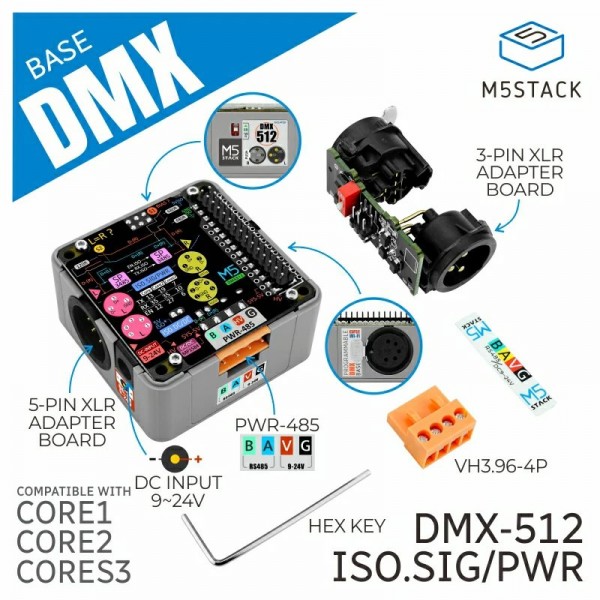

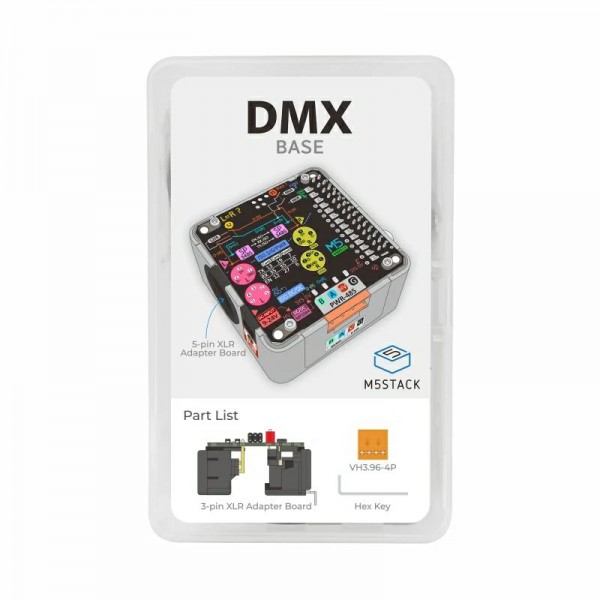

Package contents
Package contents 1x DMX Base
1x Detachable screw terminal HT3.96-4P
1x XLR-3 adaptor
1x Hex key
