M5Stack DIN Base - for M5Core

M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
M5Stack DIN Base - for M5Core
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005324
Based on 0 review(s) - Write a review
€10.25
Ex Tax: €8.47
Add to Cart
Add to wishlist

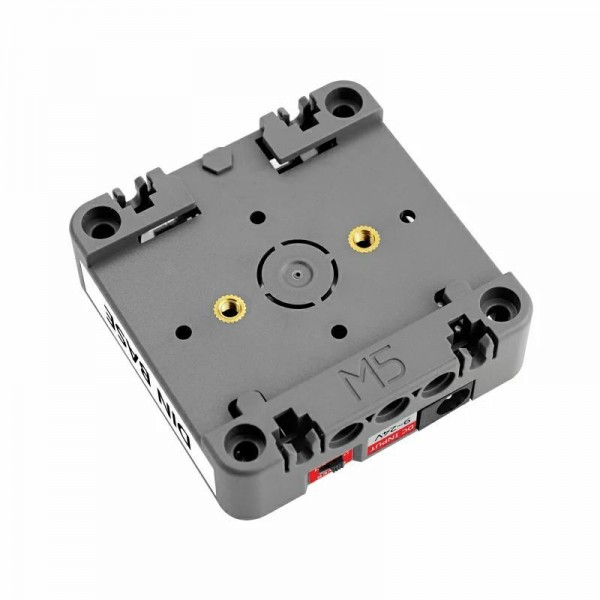

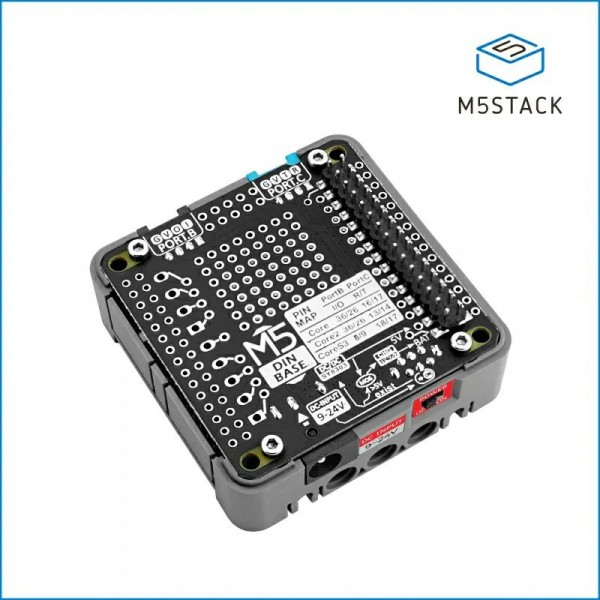

The M5Stack DIN base is a module made to easily mount the M5Core on a DIN rail. In addition, the module also has a built-in battery and a built-in buck converter to power the M5Core via a higher voltage.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack DIN Base - for M5Core

This product has 0 review(s) in total.

Tags: M5Core , Base , M5Stack DIN Base - for M5Core , 005324 , M5Stack , M132 , Battery charger , Voltage converter , Battery protection circuit , Enclosure , Battery

Specifications

General
Brand M5Stack
Manufacturer model/SKU M132
Features Battery
Enclosure
Battery charger
Voltage converter
Battery protection circuit
General physical appearance
Main color Gray/silver
Weight [g] 45
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 14
Mounting options Pin headers
Screw thread
Mounting hole(s)
DIN-rail (EN 60715)
LEGO (compatible) holes
Form factor M5Stack Base
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
(via 5V pin header)
9
(via DC-jack)
Maximum supply voltage [V DC] 24
(via DC-jack)
5
(via 5V pin header)
Voltage converter
Chip/SoC SY8303
Voltage converter type Buck
Conversion DC-DC
Isolated No
Soft start Yes
Output voltage type Fixed
Constant current function No
Maximum switching frequency [kHz] 500
Minimum input voltage [V DC] 9.0
Maximum input voltage [V DC] 24
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 2
Safety features Temperature
Short circuit
Battery circuit
Battery charger chip/SoC TP4057
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 500
Adjustable charging current No
Protection circuit Yes
(note: in Li-Po battery)
Safety features Overcurrent
Overvoltage
Undervoltage
Short circuit
Battery
Chemistry Li-Po
Rechargeable Yes
Typical capacity [mAh] 500
Maximum cell voltage [V] 4.2
Connectors
Power supply connector(s) DC-jack 5.5/2.5mm female
Pin header male (2.54mm)
Battery connector(s) Pin header male (2.54mm)
Input voltage connector(s) DC-jack 5.5/2.1mm female
Output voltage connector(s) HY2.0 (Grove) male
Pin header male (2.54mm)

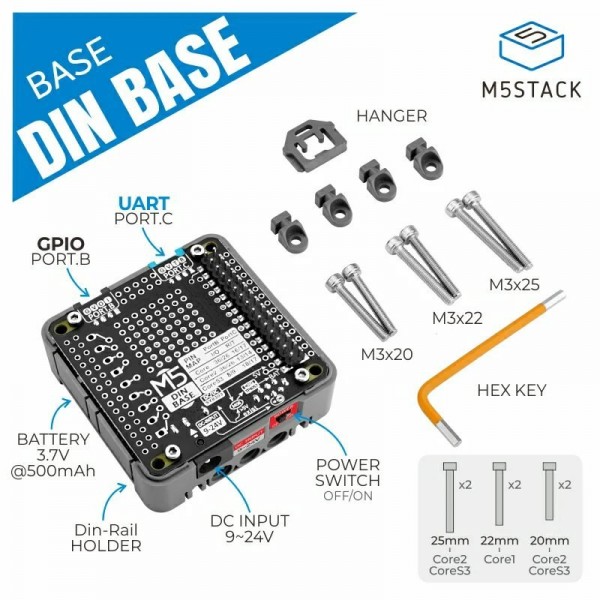

Package contents
Package contents 1x Din Base
1x DIN rail clip
4x Mounting hole clip
2x Bolt (2x25mm for Core2/CoreS3)
2x Bolt (2x22mm for Core1)
2x Bolt (2x20mm for Core2/CoreS3)
1x Hex key
