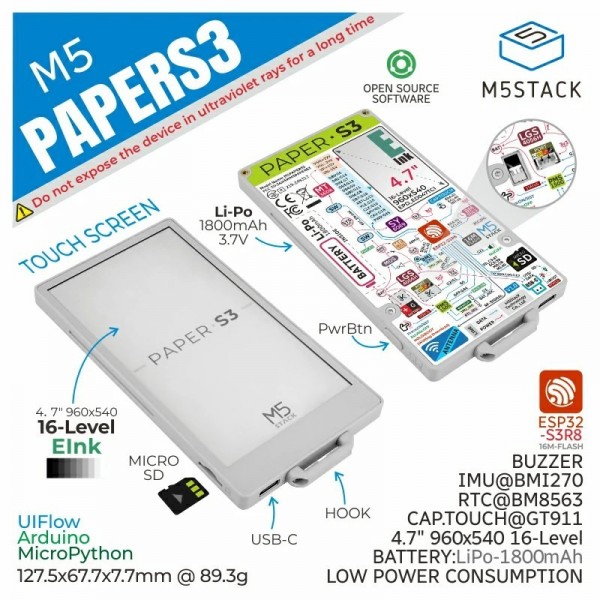

M5Stack M5PaperS3 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32-S3
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006763
€56.75
Ex Tax: €46.90
A development board from M5Stack based on a ESP32-S3 microcontroller by Espressif with multiple sensors. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Things can be shown on the built-in E-paper display and with the touchscreen, an extensive user interface can be created. Finally, the board has a built-in rechargeable Li-Po battery, which allows it to be used even when there's no power nearby.
Note: Do not use a USB QC or USB PD charger to power the M5PaperS3. Timing issues can cause excessive voltage to be applied to the USB port, damaging the M5PaperS3.
See the following page for more information: Wiki
Reviews Over M5Stack M5PaperS3 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32-S3
This product has 0 review(s) in total.
Report this review.
Tags:
M5Stack M5PaperS3 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32-S3
, M5STACK-C139
, With Bluetooth
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | C139 |
| Norm conformity | RoHS CE FCC |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | Battery charger Display Microcontroller Touchscreen SD-card adapter Battery protection circuit RTC Battery Speaker/buzzer Acceleration sensor Gyroscope |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 93 |
| Dimension X [mm] | 122 |
| Dimension Y [mm] | 67 |
| Dimension Z [mm] | 7.7 |
| Mounting options | Screw thread Magnets |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S Native USB UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 2 (bejhind sticker) |
| Maximum available hardware PWM channels | 2 |
| Maximum available analog input pins (ADC) | 2 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 1 |
| Maximum available hardware I2C interfaces | 1 |
| Maximum available hardware SPI interfaces | 0 |
| USB to serial converter | Integrated into microcontroller |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | E-paper |
| Screen diagonal [inch] | 4.7 |
| Number of pixels long side | 960 |
| Number of pixels short side | 540 |
| Display shape | Rectangular |
| Pixel colors | Black White Gray |
| Partial display refresh | Yes |
| Touchscreen | |
| Touchscreen controller | GT911 |
| Touch type | Capacitive |
| Multi-touch support | Yes |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| RTC | |
| RTC chip | BM8563 |
| Back-up battery/capacitor | None |
| Speaker | |
| Speaker type | Buzzer |
| Active/passive | Passive |
| Battery circuit | |
| Battery charger chip/SoC | LGS4056H |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Adjustable charging current | No |
| Protection circuit | Yes (in Li-Po battery) |
| Safety features | Short circuit Overvoltage Overcurrent Undervoltage |
| Battery | |
| Chemistry | Li-Po |
| Rechargeable | Yes |
| Capacity [mAh] | 1800 |
| Nominal cell voltage [V] | 3.7 |
| Maximum cell voltage [V] | 4.2 |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | Molex Picoblade (compatible) male |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x M5PaperS3 |
