  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003211
Based on 1 review(s) - Write a review
€82.00
Ex Tax: €67.77
10 or more €81.00
20 or more €80.50
50 or more €80.00
100 or more €79.50
Add to Cart
Add to wishlist

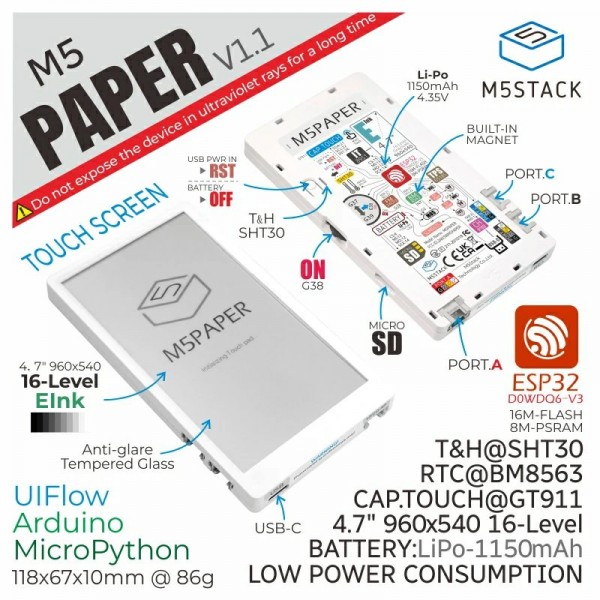

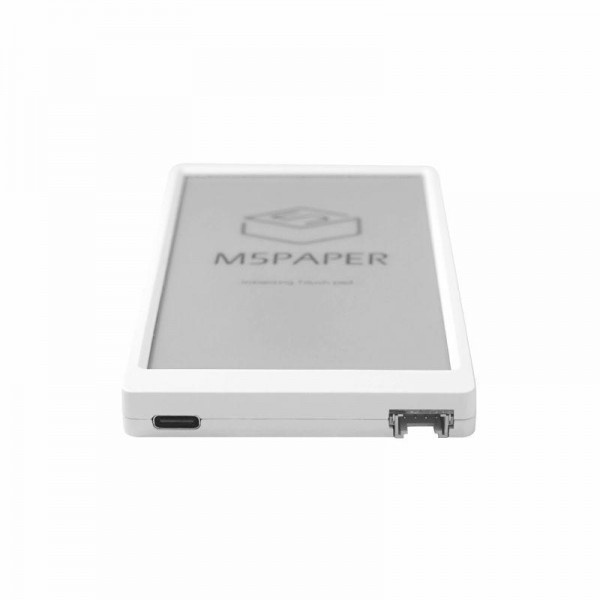

The M5Paper from M5Stack is based on an ESP32 chip with an E-paper/E-ink display. In addition, the display has a touchscreen and the module has various other features. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

Note: The screen is sensitive to UV light, prolonged exposure can damage the screen.

See the following page for more information: Wiki

Please login or register to review
Tags: Microcontroller Boards , With Bluetooth , M5Stack M5Paper V1.1 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32 , 003211 , M5Stack , K049-B , Programmable button(s) , Humidity sensor , Microcontroller (MCU) , Temperature sensor , SD-card adapter , Battery charger , Touchscreen , Enclosure , Battery , Display , RTC , USB CDC , UART , GPIO , SPI , PWM , I2S , I2C , DAC , ADC , Bluetooth , Wi-Fi

Specifications

General
Brand M5Stack
Manufacturer model/SKU K049-B
Norm conformity CE
FCC
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 60
Features RTC
Battery
Display
Enclosure
Touchscreen
Battery charger
Humidity sensor
SD-card adapter
Temperature sensor
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color White
Weight [g] 82
Dimension X [mm] 119
Dimension Y [mm] 67
Dimension Z [mm] 10
Mounting options Magnets
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM [B] 2048
(FM24C02)
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 18, 19, 25, 26, 32, 33
Number of IO-pins 6
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 1
USB to serial converter CP2104
or CH9102
Supported SD card size Micro SD
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Display
Type E-paper
Driver IT8951
Screen diagonal [inch] 4.7
Number of pixels long side 960
Number of pixels short side 540
Display shape Rectangular
Pixel colors Gray
(16 level grayscale)
Touchscreen
Touchscreen controller GT911
Touch type Capacitive
Multi-touch support Yes
Temperature sensor
Sensor (chip) SHT30
Minimum measuring range [°C] -40
Maximum measuring range [°C] 125
Smallest resolution [°C] 0.01
Accuracy [±°C] 0.2
(typical at 0-65°C)
Humidity sensor
Sensor (chip) SHT30
Minimum measuring range [% R.H.] 0
Maximum measuring range [% R.H.] 100
Smallest resolution [%R.H.] 0.01
Accuracy [±%] 2.0
(typical at 10-90%)
RTC
RTC chip BM8563
Back-up battery/capacitor None
Battery circuit
Battery charger chip/SoC SLM6635
Supported battery chemistry Li-Po
Maximum charging voltage [V] 4.35
Adjustable charging current No
Protection circuit Yes (in battery)
Battery
Chemistry Li-Po
Rechargeable Yes
Typical capacity [mAh] 1150
Nominal cell voltage [V] 3.8
3.8
Maximum cell voltage [V] 4.35
Connectors
Power supply connector(s) USB-C female
HY2.0 (Grove) male
IO-connector(s) USB-C female
HY2.0 (Grove) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x M5Stack M5Paper V1.1
