  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003212
Based on 1 review(s) - Write a review
€41.25
Ex Tax: €34.09
Add to Cart
Add to wishlist

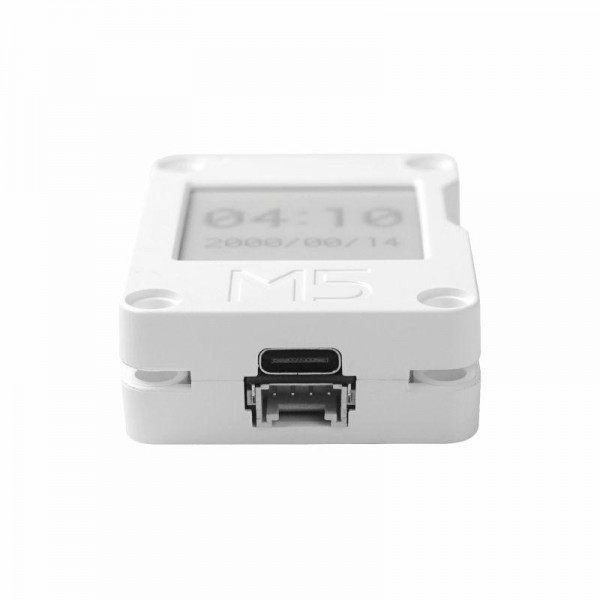

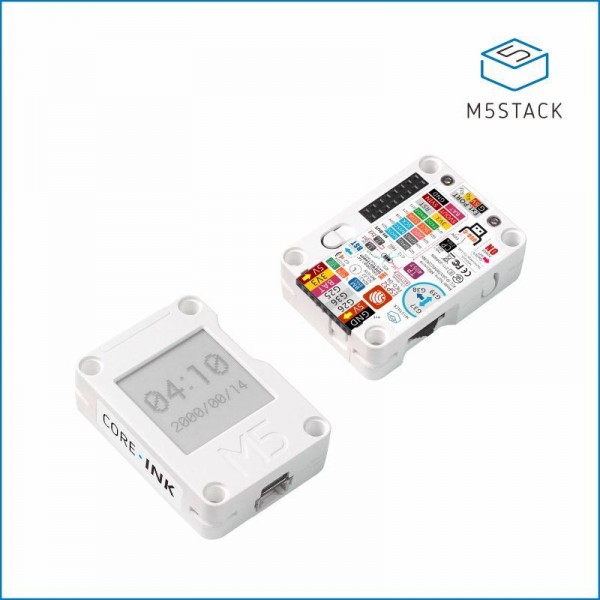

The M5Core INK from M5Stack is based on an ESP32 chip and has an E-paper/E-ink display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and/or powered.

Note: The screen is sensitive to UV light, prolonged exposure can damage the screen.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack M5Core INK with 1.54 inch E-paper E-ink Display - ESP32

This product has 1 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , M5Stack M5Core INK with 1.54 inch E-paper E-ink Display - ESP32 , 003212 , M5Stack , K048 , Programmable button(s) , Microcontroller (MCU) , Digital LED(s) , Speaker/buzzer , Battery charger , Enclosure , Battery , Display , RTC , USB CDC , UART , GPIO , SPI , PWM , I2S , I2C , DAC , ADC , Bluetooth , Wi-Fi

Specifications

General
Brand M5Stack
Manufacturer model/SKU K048
Norm conformity CE
FCC
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 60
Features RTC
Battery
Display
Enclosure
Digital LED(s)
Speaker/buzzer
Battery charger
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color White
Weight [g] 32
Dimension X [mm] 56
Dimension Y [mm] 40
Dimension Z [mm] 16
Mounting options Magnets
LEGO (compatible) holes
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-PICO
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC

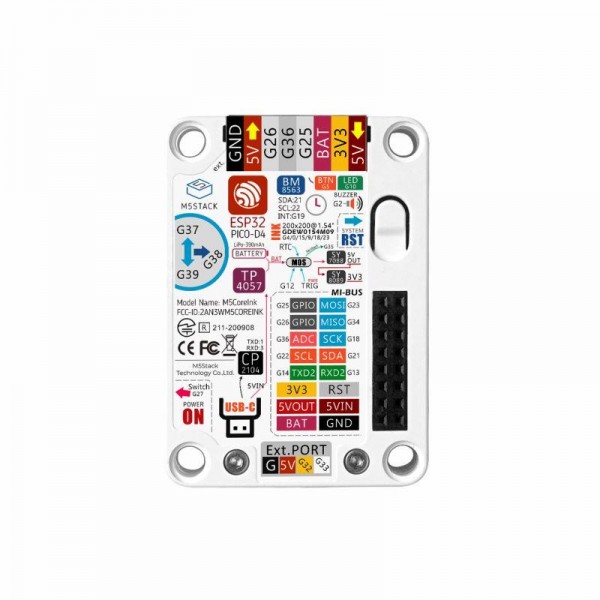

Available GPIO pins 13, 14, 18, 21, 22, 23, 25, 26, 32, 33, 34, 36
Number of IO-pins 12
Maximum available hardware PWM channels 10
Maximum available analog input pins (ADC) 8
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CP2104
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-PICO
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-PICO
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Display
Type E-paper
Screen diagonal [inch] 1.54
Number of pixels long side 200
Number of pixels short side 200
Display shape Square
Pixel colors Black
White
Partial display refresh Yes
RTC
RTC chip BM8563
Back-up battery/capacitor None
Speaker
Speaker type Buzzer
Battery circuit
Battery charger chip/SoC TP4057
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 200
Adjustable charging current No
Protection circuit Yes (in battery)
Safety features Overcurrent
Overvoltage
Undervoltage
Short circuit
Battery
Chemistry Lithium
Rechargeable Yes
Typical capacity [mAh] 390
Nominal cell voltage [V] 3.7
Maximum cell voltage [V] 4.2
Connectors
Power supply connector(s) USB-C female
HY2.0 (Grove) male
Pin header female (2.54mm)
IO-connector(s) USB-C female
HY2.0 (Grove) male
Pin header female (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x USB cable
1x M5Core INK
