M5Stack Chain Rotary Encoder Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007591
€8.25
Ex Tax: €6.82
Your shopping cart is empty!

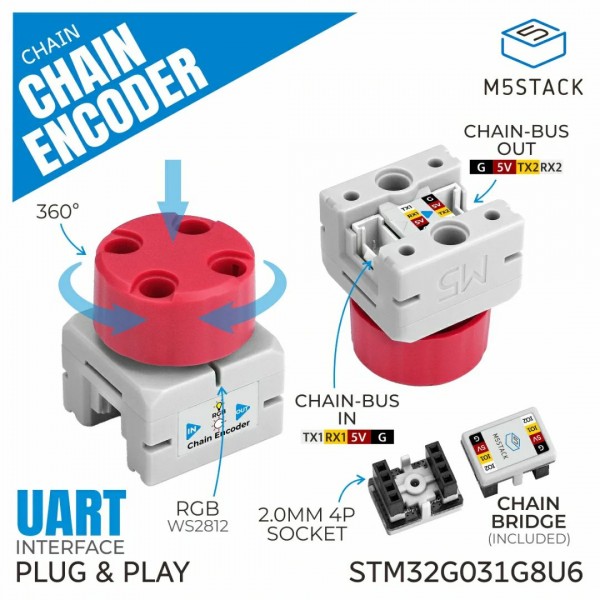

A module from M5Stack with a rotary encoder and an RGB LED for the modular chain system.
See the following page for more information: Wiki
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U207 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | Enclosure Digital LED(s) Rotary encoder |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 11 |
| Dimension X [mm] | 30 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 24 |
| Mounting options | LEGO (compatible) holes |
| Form factor | M5Stack Chain Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART |
| Default baudrate | 115200 |
| Light source | |
| Type | LED |
| LED (driver) chip | WS2812C |
| Light color | RGB |
| Rotary encoder | |
| Encoder type | Incremental |
| Encoder technology | Mechanical |
| Number of detent positions | 30 |
| Switch | |
| Switching method | Physical (sensor switch) |
| Switch type | Push |
| Number of channels/gangs | 1 |

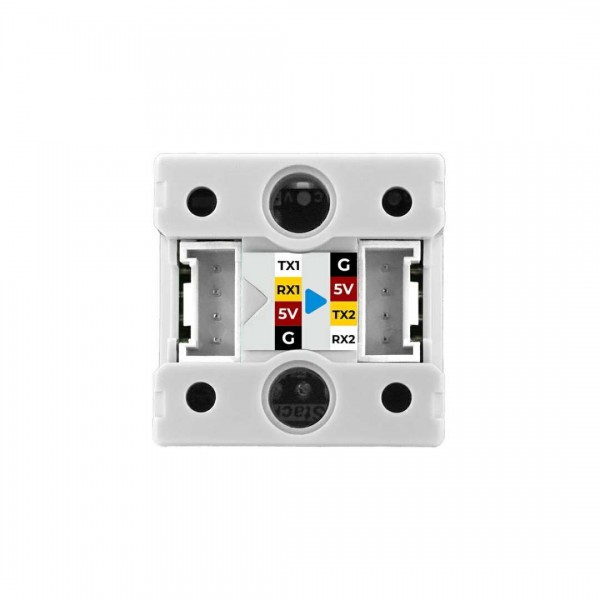

| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male |
| IO-connector(s) | HY2.0 (Grove) male |
| Enclosure | |
| Material | Plastic (unknown material) |

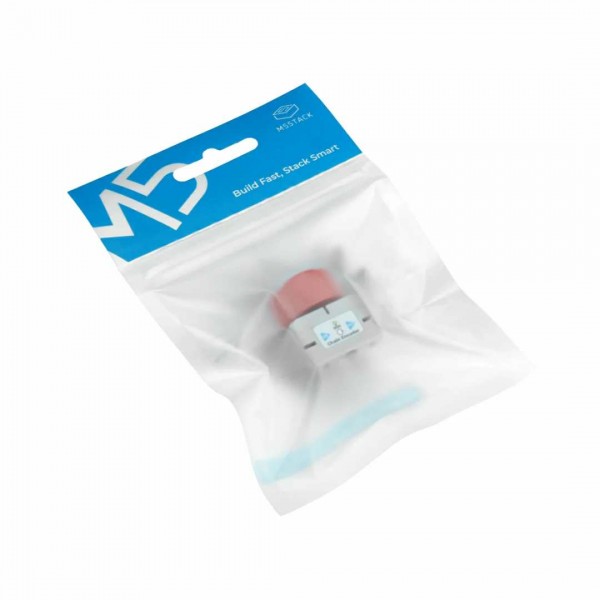

| Package contents | |
| Package contents | 1x Chain Encoder 1x Chain Bridge |
