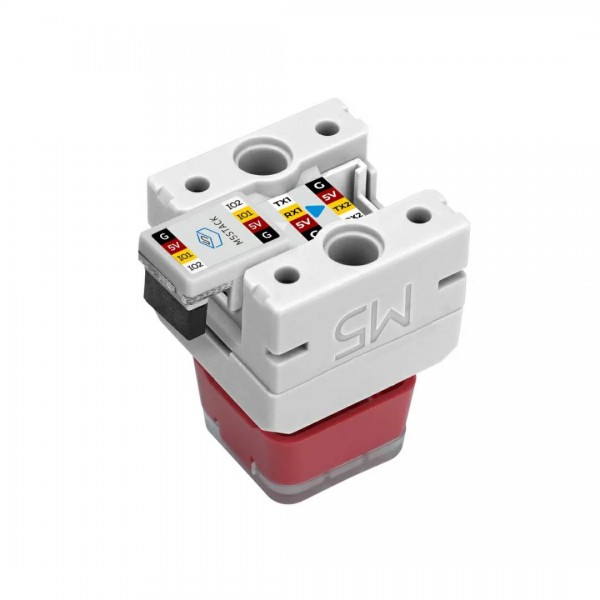

M5Stack Chain Mechanical Key Button

M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
M5Stack Chain Mechanical Key Button
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007567
Based on 1 review(s) - Write a review
€8.75
Ex Tax: €7.23
Add to Cart
Add to wishlist

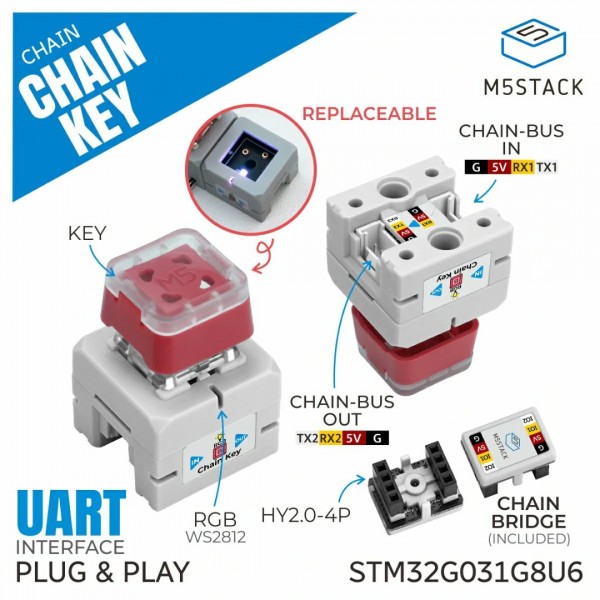

A module from M5Stack with a mechanical key and two RGB LEDs for the modular chain system.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Chain Mechanical Key Button

This product has 1 review(s) in total.

Tags: Manual Switches , Push Buttons and Switches , M5Stack Chain Mechanical Key Button , 007567 , M5Stack , U206 , Enclosure , Digital LED(s) , UART

Specifications

General
Brand M5Stack
Manufacturer model/SKU U206
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Digital LED(s)
General physical appearance
Main color Gray/silver
Weight [g] 9
Dimension X [mm] 35
Dimension Y [mm] 24
Dimension Z [mm] 24
Mounting options LEGO (compatible) holes
Form factor M5Stack Chain
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Light source
Type LED
LED (driver) chip WS2812C
Light color RGB
Number of LEDs 2
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 1
Number of fixed (on-off) positions per channel 1
Number of spring-back (reset) positions per channel 1

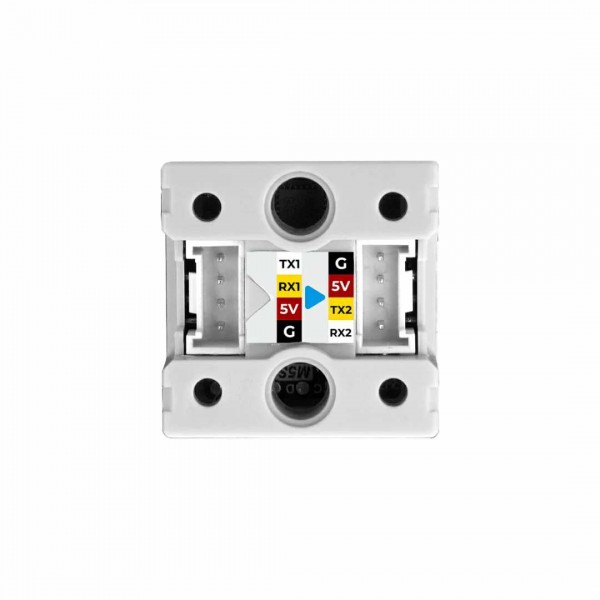

Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Plastic (unknown material)
Package contents
Package contents 1x Chain Key
1x Chain Bridge
1x Sticker sheet
