  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007566
€9.75
Ex Tax: €8.06

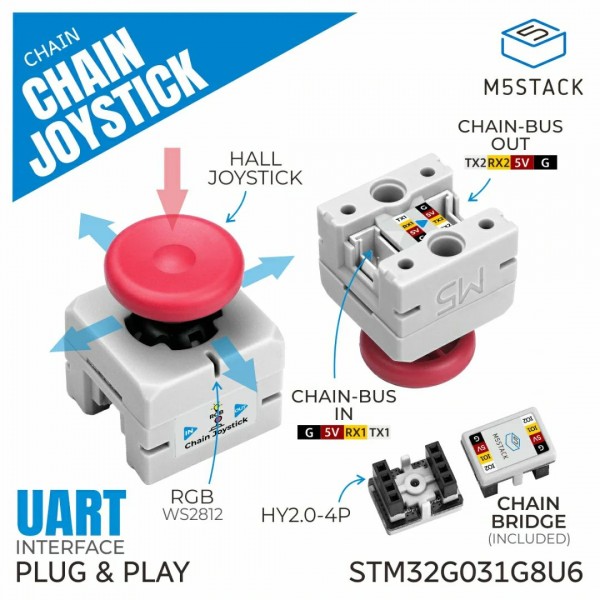

A module from M5Stack with a joystick and an RGB LED for the modular chain system.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Chain Joystick

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U205
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Joystick
Enclosure
Digital LED(s)
General physical appearance
Main color Gray/silver
Weight [g] 9
Dimension X [mm] 30
Dimension Y [mm] 24
Dimension Z [mm] 24
Mounting options LEGO (compatible) holes
Form factor M5Stack Chain
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Light source
Type LED
LED (driver) chip WS2812C
Light color RGB
Joystick
Joystick technology Hall effect
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 1
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Plastic (unknown material)

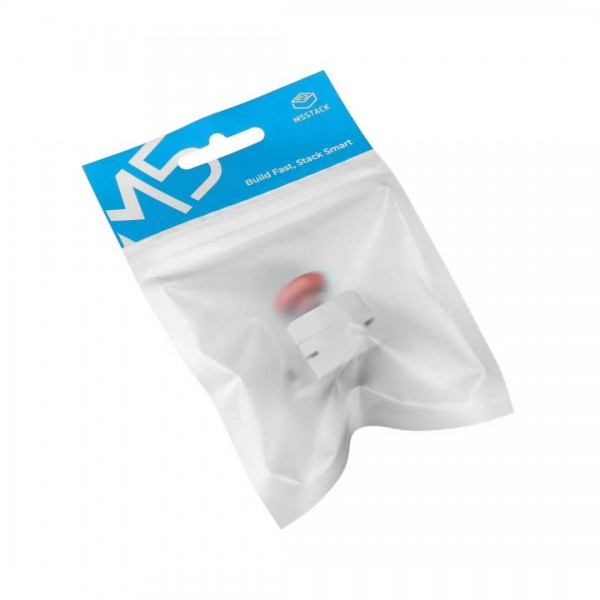

Package contents
Package contents 1x Chain Joystick
1x Chain Bridge

If you have a question or problem regarding a product, please contact us by using one of the buttons below.
