Name: M5Stack Unit-V M12 AI Camera - K210 - OV7740 - M5STACK-U078-V-M12
Brand: M5Stack
SKU: 005575
Price: 45.25 EUR
Availability: InStock

M5Stack Unit-V M12 AI Camera - K210 - OV7740

Availability: Directly available from warehouse in Eindhoven
SKU: 005575

Based on 0 review(s) - Write a review

€45.25

Ex Tax: €37.40

Qty

Add to Cart

Add to wishlist

Only 2 pieces in stock

Description
Reviews

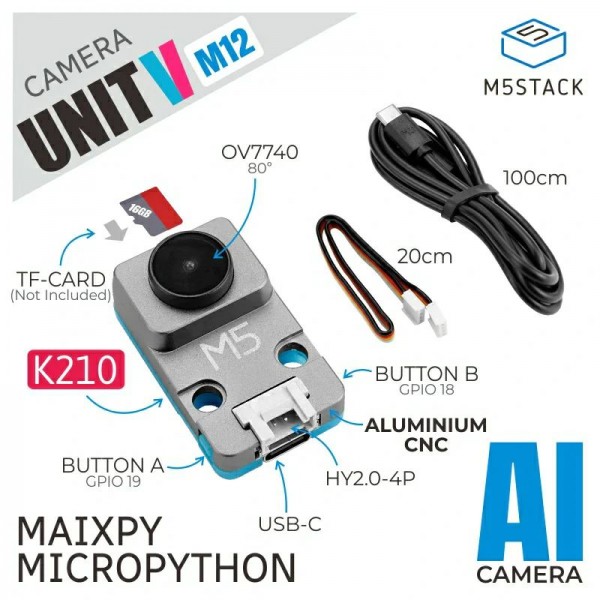

The AI Camera Unit-V M12 is a camera module running on a Kendryte K210 chipset. The board has a 64-bit dual-core RISC-V CPU along with an OV77440 on board. Together, this provides good low-light photos and the ability to combine this with Machine Vision (AI facial recognition, object tracking and more).

The module has a USB-C connection that allows it to be programmed and/or powered. MicroPython and Arduino programming languages are supported.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Unit-V M12 AI Camera - K210 - OV7740

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Unit-V M12 AI Camera - K210 - OV7740 , M5STACK-U078-V-M12 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U078-V-M12
Features	Camera Microcontroller (MCU) SD-card adapter Enclosure Programmable button(s)
General physical appearance
Main color	Gray/silver Gray/silver
Weight [g]	14
Dimension X [mm]	40
Dimension Y [mm]	24
Dimension Z [mm]	18
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	33
Maximum IO-pin sink current [mA]	23
MCU
Manufacturer	Canaan
Chip series	K210
Maximum clock frequency [MHz]	400
Number of cores	2
Internal memory
SRAM [KB]	8192
PSRAM [MB]	0
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C UART GPIO USB CDC
Number of IO-pins	2
Maximum available hardware PWM channels	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	0
USB to serial converter	FTDI compatible
Supported SD card size	Micro SD
Scanner/camera
Type	Camera
Sensor(chip)	OV7740
Lense type	Normal
Number of pixels long side	656
Number of pixels short side	488
Maximum viewing angle (diagonal) [°]	80
Connectors
Power supply connector(s)	HY2.0 (Grove) male USB-C female
IO-connector(s)	HY2.0 (Grove) male USB-C female
Enclosure
Material	Polycarbonate (PC) Aluminum

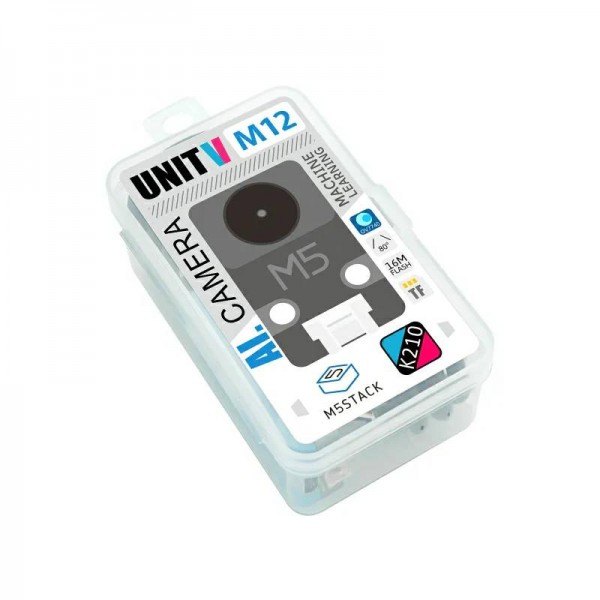

Package contents
Package contents	1x Unit-V M12
